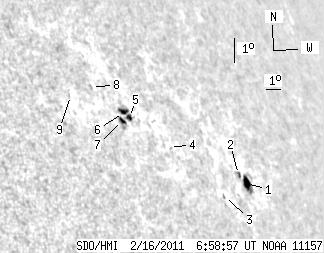

SDO HMI 2011-02-16 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.60 | 29.66 | 14.62 | 34.36 | 19.37 | 65.80 | 59.97 | 295.35 | 0.9043 | 66.8 | 58.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.83 | 10.89 | 7.53 | 14.10 | 18.69 | 69.16 | 63.33 | 293.55 | 0.9251 | -405.5 | -124.0 | |
| 0.00 | 2.14 | 0.00 | 2.73 | 18.93 | 68.77 | 62.94 | 293.92 | 0.9232 | -541.0 | -489.8 | |
| 0.00 | 1.37 | 0.00 | 1.64 | 18.06 | 67.26 | 61.43 | 293.45 | 0.9119 | -428.0 | -374.4 | |
| 0.00 | 0.34 | 0.00 | 0.38 | 19.35 | 64.55 | 58.72 | 295.67 | 0.8965 | 298.0 | 258.5 | |
| 2.66 | 7.63 | 2.80 | 8.03 | 20.12 | 62.61 | 56.78 | 297.16 | 0.8849 | 557.3 | 443.5 | |
| 1.54 | -5.00 | 1.62 | -5.00 | 20.25 | 62.34 | 56.51 | 297.40 | 0.8833 | 593.9 | 999999 | |
| 2.57 | 5.06 | 2.67 | 5.25 | 19.97 | 62.13 | 56.30 | 297.18 | 0.8809 | 690.4 | 615.2 | |
| 0.00 | 1.63 | 0.00 | 1.65 | 20.92 | 60.90 | 55.07 | 298.66 | 0.8747 | 290.0 | 268.2 | |
| 0.00 | 0.60 | 0.00 | 0.58 | 20.52 | 59.54 | 53.71 | 298.76 | 0.8632 | 378.0 | 341.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
