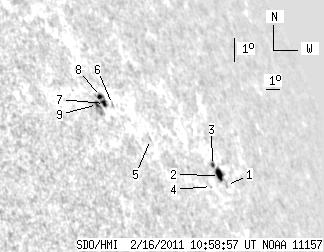

SDO HMI 2011-02-16 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.67 | 30.18 | 14.86 | 37.45 | 19.34 | 65.62 | 61.98 | 294.69 | 0.9171 | -14.2 | 192.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.96 | 18.25 | 69.60 | 65.96 | 292.38 | 0.9395 | -131.0 | -88.6 | |
| 4.89 | 8.23 | 6.91 | 11.66 | 18.53 | 69.27 | 65.63 | 292.76 | 0.9381 | -418.8 | -55.9 | |
| 1.29 | 2.06 | 1.80 | 2.89 | 18.81 | 68.95 | 65.31 | 293.14 | 0.9368 | -392.5 | -367.0 | |
| 0.00 | 0.69 | 0.00 | 0.93 | 18.07 | 68.34 | 64.70 | 292.53 | 0.9321 | -328.0 | -314.6 | |
| 0.00 | 1.11 | 0.00 | 1.34 | 19.20 | 64.86 | 61.21 | 294.71 | 0.9129 | 113.0 | 38.8 | |
| 0.00 | 1.72 | 0.00 | 1.96 | 20.13 | 63.01 | 59.37 | 296.28 | 0.9029 | 297.0 | 203.2 | |
| 2.66 | 7.80 | 2.99 | 8.75 | 20.11 | 62.50 | 58.86 | 296.43 | 0.8994 | 526.4 | 385.4 | |
| 1.63 | -7.00 | 1.83 | -7.00 | 20.33 | 62.39 | 58.75 | 296.69 | 0.8991 | 480.7 | 999999 | |
| 1.20 | 7.20 | 1.33 | 7.96 | 20.03 | 62.03 | 58.38 | 296.50 | 0.8959 | 697.6 | 529.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
