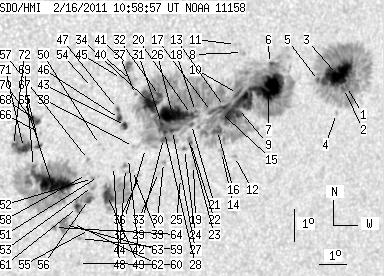

SDO HMI 2011-02-16 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 328.60 | 1441.02 | 194.52 | 854.40 | -19.75 | 35.26 | 31.62 | 243.79 | 0.5517 | 107.7 | -20.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 253.23 | 0.70 | 157.60 | -18.48 | 40.37 | 36.72 | 248.46 | 0.6120 | 517.0 | 330.5 | |
| 1.20 | -1.00 | 0.75 | -1.00 | -18.55 | 40.27 | 36.62 | 248.32 | 0.6109 | 728.6 | 999999 | |
| 43.82 | -1.00 | 27.21 | -1.00 | -18.15 | 39.93 | 36.29 | 248.85 | 0.6054 | 1161.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -19.32 | 40.19 | 36.55 | 247.06 | 0.6125 | 571.0 | 394.3 | |
| 2.32 | -1.00 | 1.43 | -1.00 | -18.38 | 39.26 | 35.61 | 248.23 | 0.5973 | 855.4 | 999999 | |
| 0.69 | 767.24 | 0.41 | 455.36 | -17.99 | 37.31 | 33.66 | 248.10 | 0.5704 | 140.5 | 26.3 | |
| 58.40 | -6.00 | 35.28 | -6.00 | -18.68 | 37.42 | 33.78 | 246.98 | 0.5745 | 1164.3 | 999999 | |
| 0.00 | 3.69 | 0.00 | 2.19 | -17.72 | 36.25 | 32.60 | 248.11 | 0.5553 | -604.0 | -527.4 | |
| 42.45 | -6.00 | 25.43 | -6.00 | -19.41 | 36.46 | 32.82 | 245.30 | 0.5649 | 893.4 | 999999 | |
| 3.09 | -6.00 | 1.84 | -6.00 | -18.96 | 36.32 | 32.68 | 246.00 | 0.5612 | 865.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -17.50 | 35.94 | 32.30 | 248.37 | 0.5504 | -656.0 | -591.0 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -20.87 | 36.66 | 33.02 | 242.95 | 0.5739 | 587.0 | 519.9 | |
| 4.29 | -6.00 | 2.55 | -6.00 | -19.38 | 35.93 | 32.29 | 245.08 | 0.5579 | 829.0 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.96 | -20.78 | 36.15 | 32.50 | 242.83 | 0.5669 | 562.0 | 478.4 | |
| 1.72 | -6.00 | 1.02 | -6.00 | -19.57 | 35.83 | 32.18 | 244.70 | 0.5573 | 701.4 | 999999 | |
| 6.17 | -6.00 | 3.68 | -6.00 | -20.12 | 35.84 | 32.20 | 243.77 | 0.5600 | 840.3 | 999999 | |
| 3.00 | -6.00 | 1.78 | -6.00 | -19.56 | 35.49 | 31.85 | 244.54 | 0.5529 | 610.9 | 999999 | |
| 0.69 | -6.00 | 0.40 | -6.00 | -19.60 | 34.91 | 31.26 | 244.17 | 0.5454 | -657.9 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.33 | -21.24 | 35.21 | 31.56 | 241.53 | 0.5572 | 519.0 | 410.8 | |
| 1.54 | -6.00 | 0.91 | -6.00 | -19.70 | 34.78 | 31.14 | 243.92 | 0.5442 | -756.7 | 999999 | |
| 1.63 | -6.00 | 0.96 | -6.00 | -20.00 | 34.85 | 31.21 | 243.44 | 0.5465 | 694.9 | 999999 | |
| 0.60 | 7.03 | 0.36 | 4.16 | -20.55 | 34.93 | 31.29 | 242.54 | 0.5503 | 898.1 | 586.2 | |
| 1.11 | -22.00 | 0.66 | -22.00 | -20.43 | 34.83 | 31.19 | 242.68 | 0.5484 | 703.7 | 999999 | |
| 1.11 | 2.06 | 0.66 | 1.22 | -20.77 | 34.76 | 31.12 | 242.06 | 0.5492 | 662.2 | 620.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -21.66 | 34.82 | 31.18 | 240.58 | 0.5546 | 550.0 | 440.2 | |
| 27.10 | -6.00 | 15.86 | -6.00 | -19.74 | 34.09 | 30.45 | 243.46 | 0.5353 | -1118.8 | 999999 | |
| 1.63 | -6.00 | 0.96 | -6.00 | -20.22 | 34.20 | 30.55 | 242.67 | 0.5391 | 830.8 | 999999 | |
| 1.03 | -6.00 | 0.60 | -6.00 | -20.30 | 33.92 | 30.28 | 242.37 | 0.5359 | 1026.8 | 999999 | |
| 2.49 | -6.00 | 1.46 | -6.00 | -20.48 | 33.92 | 30.28 | 242.05 | 0.5369 | 481.1 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -21.21 | 34.09 | 30.44 | 240.89 | 0.5428 | 894.0 | 655.8 | |
| 1.11 | -6.00 | 0.65 | -6.00 | -20.03 | 33.75 | 30.11 | 242.74 | 0.5324 | -594.8 | 999999 | |
| 2.92 | -6.00 | 1.69 | -6.00 | -19.19 | 33.51 | 29.87 | 244.09 | 0.5249 | -1057.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -21.52 | 33.98 | 30.33 | 240.28 | 0.5431 | 388.0 | 434.7 | |
| 19.04 | -6.00 | 11.04 | -6.00 | -19.42 | 33.19 | 29.55 | 243.49 | 0.5219 | -1214.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.82 | 33.34 | 29.70 | 241.08 | 0.5311 | -164.0 | -131.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -21.66 | 33.31 | 29.66 | 239.61 | 0.5354 | 601.0 | 459.8 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -19.21 | 32.65 | 29.00 | 243.54 | 0.5135 | -701.0 | -575.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.79 | 32.89 | 29.25 | 240.85 | 0.5252 | 863.0 | 602.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -21.52 | 33.02 | 29.38 | 239.65 | 0.5309 | -231.0 | -243.5 | |
| 0.00 | 6.95 | 0.00 | 3.99 | -18.80 | 32.42 | 28.78 | 244.17 | 0.5085 | -112.0 | -256.3 | |
| 4.20 | 6.77 | 2.41 | 3.88 | -18.35 | 32.23 | 28.59 | 244.89 | 0.5037 | -888.6 | -813.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -21.16 | 32.79 | 29.15 | 240.12 | 0.5260 | -515.0 | -397.0 | |
| 3.17 | 13.21 | 1.83 | 7.61 | -20.17 | 32.48 | 28.83 | 241.68 | 0.5163 | 866.1 | 715.3 | |
| 0.00 | 5.32 | 0.00 | 3.09 | -21.47 | 32.75 | 29.11 | 239.55 | 0.5273 | -386.0 | -547.5 | |
| 0.00 | 3.52 | 0.00 | 2.01 | -18.76 | 32.06 | 28.42 | 244.02 | 0.5033 | -253.0 | -253.2 | |
| 2.92 | -43.00 | 1.68 | -43.00 | -19.97 | 32.22 | 28.58 | 241.88 | 0.5119 | 940.5 | 999999 | |
| 1.20 | -43.00 | 0.69 | -43.00 | -19.67 | 32.09 | 28.45 | 242.34 | 0.5085 | 838.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -21.43 | 32.31 | 28.66 | 239.30 | 0.5214 | -720.0 | -587.7 | |
| 12.86 | 53.34 | 7.48 | 31.10 | -22.33 | 32.29 | 28.64 | 237.72 | 0.5266 | -883.1 | -242.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.79 | 31.67 | 28.02 | 239.99 | 0.5093 | 782.0 | 617.3 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -21.77 | 31.83 | 28.19 | 238.37 | 0.5174 | -645.0 | -543.6 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -21.84 | 31.63 | 27.99 | 238.09 | 0.5153 | -949.0 | -815.7 | |
| 0.00 | 3.60 | 0.00 | 2.08 | -22.08 | 31.69 | 28.04 | 237.70 | 0.5175 | -741.0 | -712.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.08 | 31.09 | 27.45 | 242.76 | 0.4920 | 768.0 | 534.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -23.41 | 31.87 | 28.23 | 235.56 | 0.5285 | -552.0 | -411.8 | |
| 3.77 | 21.18 | 2.18 | 12.25 | -22.49 | 31.63 | 27.99 | 236.94 | 0.5194 | -888.5 | -750.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -21.27 | 31.37 | 27.73 | 238.90 | 0.5084 | -784.0 | -601.5 | |
| 0.00 | 2.49 | 0.00 | 1.43 | -21.73 | 31.39 | 27.75 | 238.10 | 0.5116 | -544.0 | -597.3 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -23.70 | 31.61 | 27.97 | 234.85 | 0.5273 | -521.0 | -340.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -24.47 | 31.72 | 28.08 | 233.65 | 0.5341 | -661.0 | -483.0 | |
| 3.34 | -56.00 | 1.93 | -56.00 | -22.75 | 31.29 | 27.65 | 236.21 | 0.5169 | -833.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -23.25 | 31.22 | 27.58 | 235.29 | 0.5195 | -652.0 | -588.4 | |
| 0.00 | 11.49 | 0.00 | 6.64 | -23.30 | 30.94 | 27.29 | 234.98 | 0.5163 | -902.0 | -764.9 | |
| 1.54 | 2.06 | 0.89 | 1.19 | -23.41 | 30.60 | 26.96 | 234.51 | 0.5130 | -824.0 | -735.3 | |
| 44.93 | 204.44 | 25.65 | 116.51 | -22.04 | 30.20 | 26.56 | 236.59 | 0.4985 | -1163.4 | -433.9 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -20.57 | 29.53 | 25.88 | 238.75 | 0.4801 | -712.0 | -559.1 | |
| 2.06 | 4.12 | 1.16 | 2.32 | -20.96 | 29.56 | 25.92 | 238.03 | 0.4832 | -761.9 | -707.0 | |
| 2.40 | 7.72 | 1.35 | 4.34 | -20.21 | 29.36 | 25.71 | 239.29 | 0.4755 | -639.1 | 120.2 | |
| 1.37 | -65.00 | 0.78 | -65.00 | -21.58 | 29.47 | 25.83 | 236.80 | 0.4861 | -941.7 | 999999 | |
| 1.80 | -68.00 | 1.01 | -68.00 | -20.13 | 29.13 | 25.49 | 239.26 | 0.4721 | 648.0 | 999999 | |
| 10.98 | 28.38 | 6.18 | 15.95 | -21.02 | 29.01 | 25.37 | 237.45 | 0.4764 | -995.0 | -650.3 | |
| 1.80 | -71.00 | 1.01 | -71.00 | -20.98 | 28.65 | 25.01 | 237.22 | 0.4715 | 452.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
