SDO HMI 2011-02-16 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.11 | 26.83 | 13.35 | 33.50 | 19.50 | 65.32 | 62.23 | 294.78 | 0.9191 | -43.2 | 318.0 | |
|
previous
or next observation for the same group /

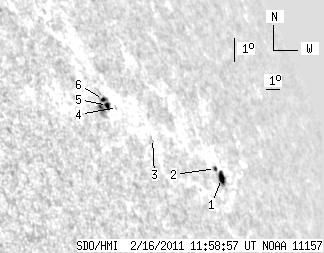

back to the solar disc SDO HMI 2011-02-16 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.54 | 7.63 | 6.58 | 11.06 | 18.52 | 69.26 | 66.17 | 292.61 | 0.9411 | -399.7 | -91.1 | |
| 1.37 | 1.97 | 1.97 | 2.83 | 18.82 | 69.02 | 65.92 | 292.98 | 0.9402 | -321.9 | -306.9 | |
| 0.00 | 0.94 | 0.00 | 1.16 | 19.32 | 64.85 | 61.76 | 294.67 | 0.9166 | 27.0 | 51.9 | |
| 0.00 | 0.43 | 0.00 | 0.50 | 20.13 | 63.10 | 60.00 | 296.07 | 0.9071 | 162.0 | 231.8 | |
| 2.57 | 15.86 | 2.94 | 17.95 | 20.13 | 62.46 | 59.37 | 296.28 | 0.9029 | 480.5 | 524.9 | |
| 1.63 | -5.00 | 1.86 | -5.00 | 20.31 | 62.33 | 59.23 | 296.51 | 0.9024 | 537.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
