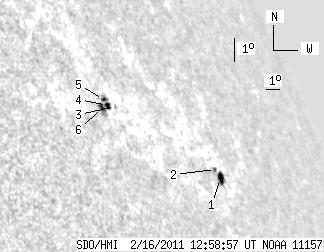

SDO HMI 2011-02-16 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.70 | 24.35 | 16.62 | 31.10 | 19.44 | 65.29 | 62.74 | 294.57 | 0.9220 | 91.1 | 296.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 7.54 | 6.99 | 11.21 | 18.52 | 69.26 | 66.71 | 292.47 | 0.9440 | -351.9 | 0.6 | |
| 1.37 | 1.54 | 2.02 | 2.27 | 18.79 | 69.07 | 66.52 | 292.79 | 0.9434 | -383.0 | -292.0 | |
| 0.00 | 1.29 | 0.00 | 1.52 | 20.14 | 62.93 | 60.39 | 295.96 | 0.9096 | 220.0 | 180.9 | |
| 2.49 | 13.98 | 2.89 | 16.10 | 20.12 | 62.40 | 59.86 | 296.10 | 0.9061 | 521.1 | 480.9 | |
| 1.29 | -4.00 | 1.49 | -4.00 | 20.30 | 62.27 | 59.72 | 296.34 | 0.9056 | 560.7 | 999999 | |
| 2.83 | -4.00 | 3.23 | -4.00 | 20.01 | 62.02 | 59.48 | 296.12 | 0.9033 | 704.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
