SDO HMI 2011-02-16 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 288.66 | 1398.36 | 172.92 | 839.44 | -19.74 | 35.30 | 32.76 | 244.41 | 0.5663 | 68.9 | -8.0 | |
|
previous
or next observation for the same group /

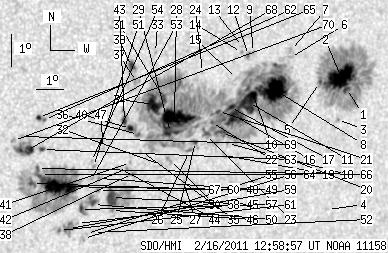

back to the solar disc SDO HMI 2011-02-16 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.17 | 257.47 | 2.01 | 162.49 | -18.47 | 40.29 | 37.74 | 248.83 | 0.6249 | 640.3 | 326.6 | |
| 36.27 | -1.00 | 22.85 | -1.00 | -18.15 | 40.01 | 37.46 | 249.23 | 0.6204 | 1171.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -19.42 | 40.18 | 37.64 | 247.30 | 0.6266 | 295.0 | 355.4 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -22.17 | 40.59 | 38.05 | 243.27 | 0.6414 | 572.0 | 413.1 | |
| 1.20 | -1.00 | 0.75 | -1.00 | -18.36 | 39.20 | 36.65 | 248.63 | 0.6107 | 1006.4 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -17.69 | 37.92 | 35.37 | 249.27 | 0.5920 | 656.0 | 514.3 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -17.48 | 37.87 | 35.33 | 249.60 | 0.5907 | 806.0 | 592.5 | |
| 47.07 | 750.37 | 28.82 | 450.19 | -18.69 | 37.50 | 34.96 | 247.45 | 0.5899 | 1172.0 | 41.4 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -17.63 | 36.51 | 33.96 | 248.83 | 0.5731 | -346.0 | -139.4 | |
| 0.43 | -8.00 | 0.26 | -8.00 | -18.69 | 36.63 | 34.08 | 247.10 | 0.5785 | 931.2 | 999999 | |
| 23.66 | -8.00 | 14.37 | -8.00 | -19.14 | 36.66 | 34.11 | 246.35 | 0.5806 | 968.2 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.65 | -17.73 | 36.34 | 33.79 | 248.59 | 0.5713 | -671.0 | -497.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -17.48 | 36.06 | 33.52 | 248.91 | 0.5667 | -689.0 | -581.5 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -17.66 | 36.06 | 33.52 | 248.60 | 0.5673 | -681.0 | -612.2 | |
| 0.00 | 2.83 | 0.00 | 1.70 | -18.45 | 36.05 | 33.50 | 247.24 | 0.5700 | 211.0 | 203.5 | |
| 14.83 | -8.00 | 8.98 | -8.00 | -19.60 | 36.27 | 33.73 | 245.42 | 0.5774 | 921.5 | 999999 | |
| 3.26 | -8.00 | 1.97 | -8.00 | -19.34 | 36.02 | 33.48 | 245.74 | 0.5731 | 921.1 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.30 | -20.43 | 36.17 | 33.63 | 243.99 | 0.5797 | 542.0 | 329.5 | |
| 0.00 | 2.66 | 0.00 | 1.61 | -20.80 | 36.15 | 33.61 | 243.37 | 0.5810 | 494.0 | 442.6 | |
| 7.37 | -8.00 | 4.45 | -8.00 | -20.11 | 35.87 | 33.32 | 244.36 | 0.5744 | 758.3 | 999999 | |
| 1.89 | -8.00 | 1.13 | -8.00 | -19.48 | 35.61 | 33.06 | 245.29 | 0.5683 | 570.5 | 999999 | |
| 0.94 | -8.00 | 0.57 | -8.00 | -19.83 | 35.42 | 32.88 | 244.61 | 0.5675 | 744.4 | 999999 | |
| 1.71 | -8.00 | 1.03 | -8.00 | -20.21 | 35.32 | 32.78 | 243.93 | 0.5678 | 649.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -18.35 | 34.76 | 32.21 | 246.83 | 0.5525 | -430.0 | -337.5 | |
| 1.54 | 6.17 | 0.92 | 3.70 | -20.44 | 34.97 | 32.42 | 243.34 | 0.5643 | 845.9 | 548.5 | |
| 1.29 | -8.00 | 0.77 | -8.00 | -20.73 | 34.81 | 32.26 | 242.78 | 0.5637 | 636.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -21.68 | 34.82 | 32.27 | 241.19 | 0.5685 | 626.0 | 447.1 | |
| 38.24 | -8.00 | 22.63 | -8.00 | -19.80 | 34.04 | 31.49 | 243.95 | 0.5493 | -969.6 | 999999 | |
| 7.72 | -8.00 | 4.57 | -8.00 | -20.23 | 33.98 | 31.44 | 243.17 | 0.5506 | 805.9 | 999999 | |
| 0.00 | 3.60 | 0.00 | 2.14 | -21.08 | 34.14 | 31.60 | 241.81 | 0.5569 | 657.0 | 609.5 | |
| 3.09 | -8.00 | 1.81 | -8.00 | -19.21 | 33.54 | 31.00 | 244.69 | 0.5401 | -981.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -21.22 | 33.84 | 31.30 | 241.40 | 0.5538 | 175.0 | 256.7 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -17.85 | 32.94 | 30.40 | 246.83 | 0.5260 | -763.0 | -646.5 | |
| 18.00 | -8.00 | 10.55 | -8.00 | -19.42 | 33.18 | 30.64 | 244.13 | 0.5363 | -1187.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -20.86 | 33.06 | 30.51 | 241.52 | 0.5419 | -396.0 | -315.1 | |
| 2.14 | 18.78 | 1.26 | 10.96 | -20.36 | 32.83 | 30.29 | 242.27 | 0.5363 | -519.6 | 414.8 | |
| 0.00 | 4.12 | 0.00 | 2.39 | -18.76 | 32.43 | 29.89 | 244.89 | 0.5232 | -35.0 | -225.5 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -21.55 | 32.88 | 30.34 | 240.23 | 0.5434 | -552.0 | -420.4 | |
| 3.60 | 6.43 | 2.08 | 3.72 | -18.32 | 32.17 | 29.62 | 245.55 | 0.5176 | -949.2 | -726.3 | |
| 3.09 | -36.00 | 1.80 | -36.00 | -20.19 | 32.51 | 29.96 | 242.36 | 0.5312 | 924.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -21.22 | 32.73 | 30.19 | 240.70 | 0.5396 | -550.0 | -411.9 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -21.41 | 32.63 | 30.08 | 240.30 | 0.5394 | -827.0 | -626.3 | |
| 3.00 | -36.00 | 1.75 | -36.00 | -19.99 | 32.25 | 29.70 | 242.55 | 0.5268 | 943.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -21.40 | 32.30 | 29.75 | 240.11 | 0.5350 | -703.0 | -494.7 | |
| 12.95 | 44.67 | 7.61 | 26.33 | -22.33 | 32.29 | 29.74 | 238.51 | 0.5403 | -879.4 | -176.5 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -22.72 | 32.38 | 29.84 | 237.90 | 0.5439 | -823.0 | -611.6 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -20.85 | 31.66 | 29.12 | 240.64 | 0.5239 | 738.0 | 616.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -21.77 | 31.72 | 29.17 | 239.07 | 0.5299 | -877.0 | -772.0 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -22.14 | 31.77 | 29.22 | 238.46 | 0.5327 | -901.0 | -788.1 | |
| 0.77 | 19.12 | 0.45 | 11.16 | -22.58 | 31.68 | 29.14 | 237.65 | 0.5343 | -719.8 | -758.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -21.42 | 31.42 | 28.88 | 239.48 | 0.5240 | -777.0 | -645.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -23.43 | 31.89 | 29.34 | 236.36 | 0.5422 | -524.0 | -408.3 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -21.79 | 31.43 | 28.89 | 238.83 | 0.5263 | -780.0 | -641.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -21.27 | 31.32 | 28.77 | 239.66 | 0.5218 | -559.0 | -478.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -23.48 | 31.64 | 29.09 | 236.10 | 0.5395 | -515.0 | -440.2 | |
| 0.00 | 1.89 | 0.00 | 1.11 | -23.64 | 31.57 | 29.02 | 235.78 | 0.5397 | -563.0 | -383.6 | |
| 2.14 | -50.00 | 1.25 | -50.00 | -22.76 | 31.25 | 28.70 | 237.03 | 0.5300 | -776.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -23.19 | 31.24 | 28.69 | 236.28 | 0.5327 | -616.0 | -521.5 | |
| 0.00 | 9.60 | 0.00 | 5.60 | -23.36 | 30.95 | 28.40 | 235.77 | 0.5303 | -867.0 | -718.5 | |
| 27.95 | 195.48 | 16.12 | 112.48 | -22.09 | 30.34 | 27.79 | 237.48 | 0.5144 | -1184.3 | -468.2 | |
| 1.20 | 3.34 | 0.70 | 1.94 | -23.44 | 30.64 | 28.09 | 235.39 | 0.5270 | -749.6 | -574.8 | |
| 1.03 | 4.72 | 0.58 | 2.67 | -20.09 | 29.40 | 26.85 | 240.42 | 0.4898 | -670.7 | -31.9 | |
| 2.06 | 3.17 | 1.17 | 1.81 | -21.00 | 29.50 | 26.96 | 238.80 | 0.4968 | -868.5 | -660.6 | |
| 0.34 | -60.00 | 0.20 | -60.00 | -21.76 | 29.58 | 27.04 | 237.48 | 0.5027 | -1010.8 | 999999 | |
| 1.97 | -62.00 | 1.12 | -62.00 | -20.04 | 29.18 | 26.63 | 240.35 | 0.4866 | 551.9 | 999999 | |
| 2.40 | -60.00 | 1.37 | -60.00 | -21.59 | 29.44 | 26.89 | 237.68 | 0.4998 | -830.0 | 999999 | |
| 3.34 | -60.00 | 1.91 | -60.00 | -22.05 | 29.36 | 26.81 | 236.77 | 0.5018 | -1000.1 | 999999 | |
| 9.00 | 20.66 | 5.11 | 11.72 | -21.06 | 28.94 | 26.40 | 238.25 | 0.4900 | -922.9 | -607.4 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -20.64 | 28.69 | 26.14 | 238.82 | 0.4840 | -767.0 | -486.8 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -20.78 | 28.43 | 25.89 | 238.35 | 0.4815 | -134.0 | -192.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
