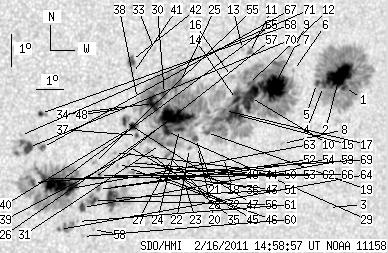

SDO HMI 2011-02-16 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 273.36 | 1338.91 | 165.64 | 813.68 | -19.68 | 35.39 | 33.94 | 245.12 | 0.5813 | 71.1 | 8.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.83 | 251.67 | 1.82 | 161.09 | -18.48 | 40.30 | 38.85 | 249.17 | 0.6389 | 654.8 | 325.8 | |
| 33.43 | -1.00 | 21.37 | -1.00 | -18.14 | 40.01 | 38.56 | 249.61 | 0.6343 | 1147.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -22.14 | 40.75 | 39.31 | 243.82 | 0.6562 | 471.0 | 373.3 | |
| 0.86 | -1.00 | 0.54 | -1.00 | -18.51 | 39.47 | 38.02 | 248.86 | 0.6286 | 877.1 | 999999 | |
| 2.06 | -1.00 | 1.30 | -1.00 | -18.44 | 39.17 | 37.73 | 248.87 | 0.6246 | 933.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -18.11 | 38.19 | 36.74 | 249.06 | 0.6110 | 794.0 | 601.2 | |
| 0.00 | 5.49 | 0.00 | 3.41 | -17.53 | 37.89 | 36.45 | 249.91 | 0.6055 | 483.0 | 534.1 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -20.34 | 38.34 | 36.89 | 245.60 | 0.6204 | -650.0 | -511.1 | |
| 44.40 | 725.34 | 27.55 | 440.47 | -18.65 | 37.54 | 36.09 | 247.97 | 0.6044 | 1171.4 | 46.5 | |
| 21.26 | -9.00 | 13.08 | -9.00 | -19.03 | 36.75 | 35.30 | 247.03 | 0.5956 | 1029.5 | 999999 | |
| 1.46 | 4.37 | 0.89 | 2.67 | -17.69 | 36.39 | 34.95 | 249.11 | 0.5864 | -501.9 | -460.1 | |
| 1.03 | -9.00 | 0.63 | -9.00 | -18.62 | 36.57 | 35.13 | 247.64 | 0.5918 | 853.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -17.62 | 36.11 | 34.67 | 249.13 | 0.5824 | -738.0 | -644.9 | |
| 3.34 | -9.00 | 2.05 | -9.00 | -19.13 | 36.23 | 34.79 | 246.66 | 0.5893 | 1044.8 | 999999 | |
| 13.71 | -9.00 | 8.41 | -9.00 | -19.59 | 36.27 | 34.82 | 245.93 | 0.5915 | 959.0 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.72 | -18.45 | 35.88 | 34.44 | 247.64 | 0.5823 | 94.0 | 95.0 | |
| 1.37 | -9.00 | 0.84 | -9.00 | -19.49 | 35.86 | 34.42 | 245.91 | 0.5859 | 536.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -20.91 | 36.19 | 34.74 | 243.75 | 0.5958 | 613.0 | 483.3 | |
| 2.40 | -9.00 | 1.46 | -9.00 | -20.20 | 35.35 | 33.91 | 244.51 | 0.5822 | 526.5 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -20.64 | 35.12 | 33.67 | 243.66 | 0.5812 | 566.0 | 457.4 | |
| 2.74 | -9.00 | 1.66 | -9.00 | -20.40 | 34.98 | 33.54 | 243.99 | 0.5784 | 844.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -20.72 | 34.83 | 33.39 | 243.39 | 0.5779 | 773.0 | 669.7 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -21.73 | 34.90 | 33.46 | 241.77 | 0.5835 | 660.0 | 609.5 | |
| 3.26 | -9.00 | 1.96 | -9.00 | -20.17 | 34.32 | 32.88 | 244.04 | 0.5689 | 780.3 | 999999 | |
| 1.97 | -9.00 | 1.18 | -9.00 | -18.75 | 34.00 | 32.55 | 246.29 | 0.5587 | -597.2 | 999999 | |
| 33.86 | -9.00 | 20.26 | -9.00 | -19.79 | 34.04 | 32.60 | 244.54 | 0.5637 | -1037.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -21.07 | 34.24 | 32.79 | 242.50 | 0.5720 | 656.0 | 483.5 | |
| 0.00 | 3.86 | 0.00 | 2.32 | -20.95 | 34.06 | 32.61 | 242.59 | 0.5692 | 674.0 | 581.8 | |
| 4.37 | -9.00 | 2.62 | -9.00 | -20.26 | 33.85 | 32.41 | 243.65 | 0.5633 | 812.1 | 999999 | |
| 3.34 | -9.00 | 1.99 | -9.00 | -19.15 | 33.53 | 32.08 | 245.38 | 0.5541 | -1004.8 | 999999 | |
| 0.86 | -9.00 | 0.51 | -9.00 | -20.67 | 33.73 | 32.28 | 242.89 | 0.5636 | 708.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -21.61 | 33.85 | 32.40 | 241.38 | 0.5697 | 652.0 | 532.6 | |
| 0.00 | 2.06 | 0.00 | 1.21 | -17.82 | 32.88 | 31.44 | 247.40 | 0.5400 | -690.0 | -574.2 | |
| 13.37 | -9.00 | 7.92 | -9.00 | -19.44 | 33.19 | 31.74 | 244.69 | 0.5509 | -1219.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.53 | -20.91 | 33.26 | 31.82 | 242.22 | 0.5588 | 9.0 | 39.5 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -21.24 | 33.34 | 31.90 | 241.71 | 0.5615 | -549.0 | -427.4 | |
| 1.46 | 2.31 | 0.86 | 1.37 | -20.45 | 32.82 | 31.37 | 242.76 | 0.5508 | -503.4 | -358.1 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -19.33 | 32.57 | 31.13 | 244.56 | 0.5423 | -677.0 | -556.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -20.90 | 32.85 | 31.40 | 241.99 | 0.5535 | -380.0 | -327.6 | |
| 3.77 | 14.06 | 2.23 | 8.29 | -20.18 | 32.57 | 31.13 | 243.07 | 0.5464 | 809.0 | 482.6 | |
| 0.00 | 2.40 | 0.00 | 1.40 | -18.59 | 32.24 | 30.79 | 245.70 | 0.5345 | -163.0 | -222.4 | |
| 5.49 | 6.60 | 3.20 | 3.85 | -18.20 | 32.12 | 30.68 | 246.34 | 0.5313 | -865.4 | -752.2 | |
| 0.00 | 3.26 | 0.00 | 1.94 | -21.58 | 32.86 | 31.42 | 240.86 | 0.5572 | -562.0 | -354.3 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -21.28 | 32.68 | 31.23 | 241.25 | 0.5533 | -590.0 | -467.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -20.77 | 32.48 | 31.04 | 242.00 | 0.5482 | 636.0 | 536.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -21.44 | 32.64 | 31.20 | 240.96 | 0.5536 | -763.0 | -660.9 | |
| 2.91 | -40.00 | 1.71 | -40.00 | -20.05 | 32.25 | 30.80 | 243.12 | 0.5415 | 879.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -19.66 | 32.13 | 30.68 | 243.73 | 0.5380 | 907.0 | 639.7 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -21.40 | 32.30 | 30.85 | 240.82 | 0.5490 | -664.0 | -530.0 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -21.01 | 32.10 | 30.65 | 241.36 | 0.5444 | 667.0 | 624.6 | |
| 12.34 | 36.60 | 7.34 | 21.79 | -22.42 | 32.32 | 30.87 | 239.12 | 0.5549 | -842.3 | -255.1 | |
| 0.26 | -51.00 | 0.15 | -51.00 | -22.08 | 32.20 | 30.75 | 239.60 | 0.5516 | -848.3 | 999999 | |
| 0.43 | 1.80 | 0.25 | 1.06 | -21.74 | 31.71 | 30.27 | 239.86 | 0.5435 | -782.0 | -603.2 | |
| 1.46 | 2.40 | 0.86 | 1.42 | -22.17 | 31.77 | 30.33 | 239.17 | 0.5467 | -845.6 | -703.5 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -21.36 | 31.44 | 29.99 | 240.34 | 0.5379 | -769.0 | -572.2 | |
| 3.09 | 15.43 | 1.82 | 9.11 | -22.52 | 31.67 | 30.23 | 238.52 | 0.5475 | -800.8 | -766.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -21.85 | 31.51 | 30.07 | 239.55 | 0.5416 | -850.0 | -647.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -23.41 | 31.86 | 30.41 | 237.17 | 0.5550 | -540.0 | -439.9 | |
| 4.03 | -56.00 | 2.37 | -56.00 | -22.75 | 31.32 | 29.88 | 237.88 | 0.5445 | -786.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -23.64 | 31.54 | 30.10 | 236.56 | 0.5527 | -494.0 | -412.8 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -23.19 | 31.24 | 29.80 | 237.09 | 0.5462 | -618.0 | -519.5 | |
| 0.60 | 184.29 | 0.35 | 107.07 | -21.89 | 30.71 | 29.27 | 238.93 | 0.5318 | -684.4 | -455.1 | |
| 9.60 | -62.00 | 5.62 | -62.00 | -22.20 | 30.75 | 29.30 | 238.42 | 0.5340 | -888.2 | 999999 | |
| 0.43 | 11.57 | 0.25 | 6.82 | -23.47 | 30.64 | 29.20 | 236.19 | 0.5407 | -842.6 | -694.5 | |
| 20.40 | -62.00 | 11.87 | -62.00 | -22.11 | 30.18 | 28.73 | 238.17 | 0.5263 | -1241.2 | 999999 | |
| 0.94 | -62.00 | 0.55 | -62.00 | -21.94 | 29.81 | 28.37 | 238.19 | 0.5207 | -1186.7 | 999999 | |
| 2.40 | 27.09 | 1.38 | 15.51 | -21.00 | 29.47 | 28.03 | 239.60 | 0.5106 | -783.6 | -374.3 | |
| 1.80 | 4.03 | 1.03 | 2.30 | -19.98 | 29.20 | 27.75 | 241.28 | 0.5010 | 579.4 | -269.3 | |
| 3.00 | -62.00 | 1.73 | -62.00 | -22.09 | 29.37 | 27.93 | 237.60 | 0.5161 | -962.7 | 999999 | |
| 7.03 | -67.00 | 4.03 | -67.00 | -21.03 | 28.97 | 27.53 | 239.19 | 0.5044 | -996.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -20.68 | 28.62 | 27.17 | 239.56 | 0.4976 | -727.0 | -476.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
