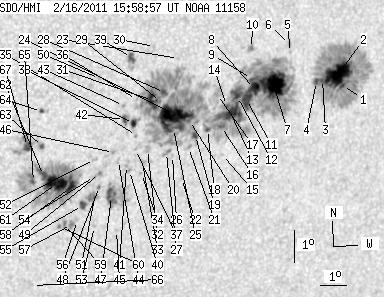

SDO HMI 2011-02-16 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 279.93 | 1299.71 | 170.60 | 795.26 | -19.71 | 35.31 | 34.42 | 245.30 | 0.5875 | 78.2 | 21.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.23 | 245.81 | 1.44 | 158.54 | -18.48 | 40.27 | 39.38 | 249.34 | 0.6454 | 710.2 | 324.5 | |
| 32.57 | -1.00 | 20.97 | -1.00 | -18.16 | 39.98 | 39.09 | 249.73 | 0.6410 | 1152.1 | 999999 | |
| 0.77 | -1.00 | 0.49 | -1.00 | -18.35 | 39.43 | 38.54 | 249.27 | 0.6346 | 1106.3 | 999999 | |
| 2.31 | -1.00 | 1.48 | -1.00 | -18.43 | 39.21 | 38.32 | 249.08 | 0.6321 | 906.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -17.64 | 37.99 | 37.09 | 249.94 | 0.6141 | 794.0 | 630.3 | |
| 0.00 | 2.23 | 0.00 | 1.39 | -17.40 | 37.89 | 37.00 | 250.29 | 0.6122 | 832.0 | 751.3 | |
| 39.77 | 707.87 | 24.85 | 432.76 | -18.64 | 37.57 | 36.68 | 248.20 | 0.6118 | 1191.4 | 75.5 | |
| 9.69 | -7.00 | 6.00 | -7.00 | -18.81 | 36.87 | 35.98 | 247.67 | 0.6035 | 1119.5 | 999999 | |
| 0.60 | -7.00 | 0.37 | -7.00 | -18.52 | 36.68 | 35.79 | 248.07 | 0.6001 | 748.6 | 999999 | |
| 1.80 | 4.03 | 1.11 | 2.48 | -17.62 | 36.47 | 35.58 | 249.46 | 0.5944 | -543.5 | -524.8 | |
| 9.09 | -7.00 | 5.62 | -7.00 | -19.16 | 36.65 | 35.76 | 247.01 | 0.6018 | 959.6 | 999999 | |
| 2.57 | -7.00 | 1.58 | -7.00 | -19.09 | 36.29 | 35.39 | 246.98 | 0.5969 | 1037.2 | 999999 | |
| 20.83 | -7.00 | 12.83 | -7.00 | -19.59 | 36.14 | 35.25 | 246.11 | 0.5969 | 828.8 | 999999 | |
| 1.20 | -7.00 | 0.74 | -7.00 | -19.39 | 35.94 | 35.04 | 246.35 | 0.5935 | 848.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -20.88 | 36.17 | 35.27 | 244.05 | 0.6023 | 595.0 | 473.7 | |
| 2.14 | -7.00 | 1.32 | -7.00 | -20.04 | 35.91 | 35.01 | 245.29 | 0.5956 | 839.6 | 999999 | |
| 0.00 | 14.14 | 0.00 | 8.63 | -19.08 | 35.52 | 34.62 | 246.67 | 0.5870 | -246.0 | -92.4 | |
| 1.71 | -7.00 | 1.05 | -7.00 | -20.16 | 35.40 | 34.51 | 244.85 | 0.5897 | 584.5 | 999999 | |
| 3.17 | -7.00 | 1.93 | -7.00 | -20.37 | 34.99 | 34.10 | 244.32 | 0.5854 | 790.6 | 999999 | |
| 2.23 | -7.00 | 1.35 | -7.00 | -19.93 | 34.66 | 33.76 | 244.88 | 0.5793 | 350.5 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.51 | -20.75 | 34.82 | 33.93 | 243.61 | 0.5849 | 478.0 | 447.7 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -21.71 | 34.81 | 33.91 | 242.06 | 0.5890 | 699.0 | 530.8 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -18.09 | 33.83 | 32.93 | 247.61 | 0.5611 | 464.0 | 331.8 | |
| 44.48 | -7.00 | 26.78 | -7.00 | -19.79 | 34.05 | 33.16 | 244.83 | 0.5709 | -974.0 | 999999 | |
| 13.03 | -7.00 | 7.86 | -7.00 | -20.21 | 34.12 | 33.23 | 244.15 | 0.5736 | 704.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -21.03 | 34.28 | 33.39 | 242.88 | 0.5794 | 700.0 | 504.5 | |
| 0.00 | 3.77 | 0.00 | 2.28 | -20.95 | 34.04 | 33.14 | 242.88 | 0.5759 | 758.0 | 583.7 | |
| 4.03 | -7.00 | 2.41 | -7.00 | -19.15 | 33.53 | 32.64 | 245.66 | 0.5614 | -938.0 | 999999 | |
| 0.69 | -7.00 | 0.41 | -7.00 | -19.43 | 33.45 | 32.55 | 245.14 | 0.5615 | -925.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -17.79 | 32.88 | 31.98 | 247.71 | 0.5472 | -754.0 | -577.4 | |
| 11.31 | -7.00 | 6.74 | -7.00 | -19.42 | 33.15 | 32.25 | 245.01 | 0.5575 | -1233.5 | 999999 | |
| 0.00 | 4.37 | 0.00 | 2.62 | -20.91 | 33.31 | 32.41 | 242.56 | 0.5664 | 256.0 | 230.5 | |
| 0.00 | 2.31 | 0.00 | 1.39 | -21.28 | 33.21 | 32.32 | 241.89 | 0.5670 | -525.0 | -407.5 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -21.65 | 33.27 | 32.37 | 241.31 | 0.5695 | 632.0 | 497.2 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -20.51 | 32.80 | 31.91 | 242.96 | 0.5580 | -589.0 | -393.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -19.42 | 32.55 | 31.66 | 244.69 | 0.5498 | -345.0 | -422.7 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -20.93 | 32.86 | 31.97 | 242.27 | 0.5609 | -576.0 | -461.3 | |
| 3.09 | 14.14 | 1.83 | 8.39 | -20.15 | 32.61 | 31.71 | 243.46 | 0.5538 | 785.1 | 425.0 | |
| 4.80 | 9.86 | 2.82 | 5.79 | -18.17 | 32.11 | 31.22 | 246.67 | 0.5384 | -879.4 | -457.3 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -21.58 | 32.80 | 31.90 | 241.14 | 0.5633 | -562.0 | -386.8 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -21.44 | 32.65 | 31.76 | 241.30 | 0.5607 | -857.0 | -679.1 | |
| 2.40 | -38.00 | 1.42 | -38.00 | -20.05 | 32.25 | 31.36 | 243.43 | 0.5487 | 863.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -19.63 | 32.12 | 31.23 | 244.09 | 0.5450 | 739.0 | 607.3 | |
| 0.00 | 2.14 | 0.00 | 1.27 | -21.31 | 32.32 | 31.42 | 241.33 | 0.5558 | -519.0 | -417.7 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -23.44 | 32.79 | 31.89 | 238.09 | 0.5732 | -583.0 | -441.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -21.07 | 32.08 | 31.18 | 241.58 | 0.5515 | 706.0 | 547.4 | |
| 10.71 | 35.31 | 6.40 | 21.14 | -22.42 | 32.33 | 31.44 | 239.48 | 0.5619 | -832.1 | -289.1 | |
| 1.11 | 2.06 | 0.66 | 1.22 | -22.14 | 31.81 | 30.92 | 239.61 | 0.5539 | -785.2 | -701.7 | |
| 1.46 | 2.23 | 0.86 | 1.32 | -21.74 | 31.71 | 30.82 | 240.22 | 0.5505 | -723.3 | -628.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -18.87 | 31.09 | 30.19 | 244.87 | 0.5277 | 794.0 | 678.2 | |
| 0.77 | 15.34 | 0.46 | 9.10 | -22.48 | 31.71 | 30.81 | 238.97 | 0.5546 | -866.6 | -778.7 | |
| 0.00 | 2.06 | 0.00 | 1.21 | -21.33 | 31.43 | 30.54 | 240.75 | 0.5447 | -749.0 | -537.5 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -23.37 | 31.93 | 31.04 | 237.66 | 0.5625 | -577.0 | -401.1 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -21.84 | 31.55 | 30.66 | 239.94 | 0.5490 | -554.0 | -654.7 | |
| 4.54 | -51.00 | 2.69 | -51.00 | -22.75 | 31.33 | 30.43 | 238.27 | 0.5514 | -770.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -23.22 | 31.26 | 30.36 | 237.44 | 0.5533 | -607.0 | -467.1 | |
| 0.00 | 4.11 | 0.00 | 2.44 | -23.36 | 31.07 | 30.17 | 237.08 | 0.5518 | -815.0 | -667.5 | |
| 6.00 | 175.10 | 3.53 | 102.23 | -22.23 | 30.76 | 29.86 | 238.76 | 0.5412 | -880.9 | -477.9 | |
| 0.00 | 2.40 | 0.00 | 1.42 | -23.37 | 30.81 | 29.92 | 236.88 | 0.5488 | -925.0 | -838.2 | |
| 1.37 | 1.63 | 0.81 | 0.96 | -23.45 | 30.64 | 29.75 | 236.64 | 0.5472 | -792.3 | -664.7 | |
| 20.74 | -58.00 | 12.13 | -58.00 | -22.14 | 30.22 | 29.32 | 238.55 | 0.5339 | -1235.0 | 999999 | |
| 5.49 | -58.00 | 3.19 | -58.00 | -21.92 | 29.69 | 28.80 | 238.55 | 0.5260 | -1003.2 | 999999 | |
| 2.06 | 22.46 | 1.19 | 12.92 | -21.04 | 29.47 | 28.57 | 239.94 | 0.5179 | -855.0 | -511.3 | |
| 1.63 | 2.57 | 0.94 | 1.48 | -19.98 | 29.22 | 28.32 | 241.68 | 0.5086 | 519.3 | 331.7 | |
| 1.80 | -58.00 | 1.04 | -58.00 | -22.12 | 29.37 | 28.48 | 237.96 | 0.5232 | -952.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -25.32 | 30.11 | 29.22 | 233.19 | 0.5533 | -701.0 | -576.3 | |
| 5.74 | -63.00 | 3.30 | -63.00 | -21.07 | 28.93 | 28.04 | 239.50 | 0.5111 | -1029.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
