SDO HMI 2011-02-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.69 | 1262.37 | 153.13 | 788.46 | -19.65 | 35.38 | 36.14 | 246.14 | 0.6090 | 108.0 | 19.6 | |
|
previous
or next observation for the same group /

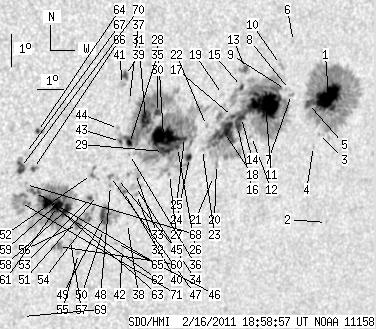

back to the solar disc SDO HMI 2011-02-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.16 | 249.20 | 23.83 | 164.48 | -18.20 | 40.01 | 40.77 | 250.16 | 0.6618 | 1087.3 | 309.5 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -21.95 | 41.14 | 41.90 | 245.03 | 0.6856 | 574.0 | 440.2 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -19.33 | 39.93 | 40.69 | 248.45 | 0.6638 | 498.0 | 428.9 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -19.71 | 39.83 | 40.60 | 247.87 | 0.6637 | -361.0 | -341.5 | |
| 0.77 | -1.00 | 0.50 | -1.00 | -18.44 | 39.25 | 40.01 | 249.59 | 0.6532 | 986.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -16.63 | 38.18 | 38.94 | 252.07 | 0.6352 | 638.0 | 522.5 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -18.22 | 38.50 | 39.26 | 249.71 | 0.6433 | 670.0 | 552.5 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -18.07 | 38.38 | 39.14 | 249.90 | 0.6414 | 568.0 | 591.8 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -18.08 | 38.22 | 38.99 | 249.83 | 0.6394 | 479.0 | 453.8 | |
| 0.00 | 3.34 | 0.00 | 2.13 | -17.35 | 37.84 | 38.60 | 250.85 | 0.6326 | 662.0 | 602.2 | |
| 54.59 | 339.35 | 34.82 | 215.43 | -18.59 | 37.56 | 38.32 | 248.85 | 0.6325 | 1144.5 | 343.2 | |
| 0.00 | 2.83 | 0.00 | 1.80 | -19.59 | 37.27 | 38.03 | 247.20 | 0.6320 | 241.0 | 229.3 | |
| 3.09 | 6.68 | 1.94 | 4.19 | -17.57 | 36.51 | 37.27 | 250.12 | 0.6162 | -516.2 | -333.2 | |
| 2.31 | -11.00 | 1.46 | -11.00 | -19.05 | 36.73 | 37.49 | 247.85 | 0.6234 | 873.3 | 999999 | |
| 2.06 | -11.00 | 1.29 | -11.00 | -18.12 | 36.49 | 37.25 | 249.24 | 0.6175 | 873.6 | 999999 | |
| 1.03 | -11.00 | 0.65 | -11.00 | -19.33 | 36.64 | 37.40 | 247.39 | 0.6233 | 899.7 | 999999 | |
| 1.54 | -11.00 | 0.97 | -11.00 | -19.04 | 36.37 | 37.13 | 247.74 | 0.6189 | 948.8 | 999999 | |
| 23.74 | -11.00 | 14.93 | -11.00 | -19.54 | 36.19 | 36.95 | 246.88 | 0.6182 | 816.3 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.18 | -18.41 | 35.82 | 36.58 | 248.54 | 0.6098 | 358.0 | 217.1 | |
| 0.00 | 3.43 | 0.00 | 2.16 | -20.53 | 36.14 | 36.90 | 245.32 | 0.6212 | 311.0 | 303.8 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -20.90 | 36.13 | 36.89 | 244.74 | 0.6224 | 596.0 | 453.4 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -19.38 | 35.44 | 36.20 | 246.85 | 0.6082 | -476.0 | -390.5 | |
| 0.00 | 1.89 | 0.00 | 1.18 | -20.11 | 35.48 | 36.24 | 245.70 | 0.6113 | 655.0 | 428.5 | |
| 3.17 | 349.30 | 1.97 | 213.57 | -20.39 | 35.04 | 35.80 | 245.08 | 0.6069 | 618.6 | -167.8 | |
| 1.03 | -24.00 | 0.64 | -24.00 | -19.80 | 34.69 | 35.45 | 245.87 | 0.6003 | -647.8 | 999999 | |
| 1.46 | -24.00 | 0.90 | -24.00 | -20.12 | 34.50 | 35.27 | 245.28 | 0.5991 | 707.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -20.95 | 34.41 | 35.18 | 243.90 | 0.6014 | 685.0 | 536.5 | |
| 32.74 | -24.00 | 20.05 | -24.00 | -19.82 | 33.89 | 34.65 | 245.49 | 0.5901 | -1097.6 | 999999 | |
| 2.91 | -24.00 | 1.79 | -24.00 | -20.27 | 34.00 | 34.77 | 244.80 | 0.5934 | 581.1 | 999999 | |
| 3.77 | -24.00 | 2.29 | -24.00 | -19.11 | 33.49 | 34.25 | 246.47 | 0.5822 | -908.8 | 999999 | |
| 12.17 | -24.00 | 7.37 | -24.00 | -19.32 | 33.08 | 33.84 | 245.94 | 0.5778 | -1222.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -21.64 | 33.32 | 34.09 | 242.27 | 0.5908 | 732.0 | 531.3 | |
| 0.00 | 8.31 | 0.00 | 5.07 | -21.01 | 33.12 | 33.88 | 243.19 | 0.5853 | -1.0 | 23.2 | |
| 0.00 | 5.23 | 0.00 | 3.20 | -21.40 | 33.22 | 33.98 | 242.60 | 0.5884 | -114.0 | -189.7 | |
| 2.74 | -24.00 | 1.66 | -24.00 | -20.11 | 32.67 | 33.43 | 244.43 | 0.5757 | 1043.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -20.45 | 32.75 | 33.51 | 243.92 | 0.5782 | 810.0 | 574.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -18.82 | 32.36 | 33.13 | 246.47 | 0.5664 | -612.0 | -491.1 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -22.54 | 33.22 | 33.99 | 240.77 | 0.5939 | -413.0 | -316.0 | |
| 3.43 | 4.54 | 2.04 | 2.71 | -18.08 | 32.05 | 32.82 | 247.60 | 0.5594 | -873.4 | -737.5 | |
| 1.71 | 5.83 | 1.04 | 3.54 | -21.58 | 32.81 | 33.57 | 242.09 | 0.5841 | -557.7 | -543.7 | |
| 0.00 | 2.83 | 0.00 | 1.69 | -18.35 | 32.00 | 32.76 | 247.10 | 0.5598 | -161.0 | -260.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -23.35 | 33.26 | 34.02 | 239.52 | 0.5983 | -486.0 | -373.5 | |
| 0.51 | -24.00 | 0.31 | -24.00 | -20.07 | 32.32 | 33.08 | 244.32 | 0.5710 | 920.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -19.69 | 32.15 | 32.91 | 244.89 | 0.5672 | 691.0 | 466.4 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -21.20 | 32.48 | 33.24 | 242.54 | 0.5782 | -440.0 | -260.3 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -23.18 | 32.98 | 33.74 | 239.63 | 0.5941 | -524.0 | -473.2 | |
| 0.00 | 2.83 | 0.00 | 1.71 | -21.16 | 32.20 | 32.97 | 242.46 | 0.5745 | 789.0 | 521.2 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -21.43 | 32.27 | 33.04 | 242.05 | 0.5767 | -757.0 | -660.0 | |
| 11.31 | 25.19 | 6.87 | 15.34 | -22.36 | 32.29 | 33.05 | 240.55 | 0.5814 | -805.6 | -299.4 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -22.78 | 32.37 | 33.13 | 239.91 | 0.5846 | -604.0 | -518.4 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -21.76 | 31.87 | 32.63 | 241.28 | 0.5732 | -671.0 | -611.4 | |
| 0.34 | 5.48 | 0.21 | 3.29 | -21.14 | 31.48 | 32.24 | 242.10 | 0.5653 | -844.2 | -521.5 | |
| 1.97 | 2.31 | 1.19 | 1.39 | -21.87 | 31.63 | 32.39 | 240.97 | 0.5708 | -838.9 | -788.8 | |
| 1.11 | 157.51 | 0.67 | 93.80 | -22.51 | 31.76 | 32.52 | 239.99 | 0.5757 | -791.8 | -490.0 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -23.58 | 31.63 | 32.39 | 238.20 | 0.5799 | -495.0 | -441.1 | |
| 3.00 | -54.00 | 1.81 | -54.00 | -22.69 | 31.35 | 32.11 | 239.46 | 0.5716 | -741.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -23.20 | 31.22 | 31.98 | 238.56 | 0.5728 | -677.0 | -484.6 | |
| 7.20 | -54.00 | 4.31 | -54.00 | -22.26 | 30.82 | 31.58 | 239.84 | 0.5628 | -804.8 | 999999 | |
| 1.37 | -54.00 | 0.82 | -54.00 | -21.90 | 30.66 | 31.42 | 240.34 | 0.5588 | -729.1 | 999999 | |
| 0.00 | 7.88 | 0.00 | 4.74 | -23.41 | 30.82 | 31.58 | 237.96 | 0.5691 | -941.0 | -715.9 | |
| 7.80 | -54.00 | 4.65 | -54.00 | -22.19 | 30.47 | 31.23 | 239.74 | 0.5580 | -1128.8 | 999999 | |
| 8.23 | -54.00 | 4.88 | -54.00 | -22.09 | 30.07 | 30.83 | 239.65 | 0.5524 | -1229.5 | 999999 | |
| 1.71 | -54.00 | 1.01 | -54.00 | -21.80 | 29.66 | 30.43 | 239.88 | 0.5458 | -843.4 | 999999 | |
| 1.63 | 3.68 | 0.95 | 2.15 | -19.96 | 29.22 | 29.98 | 242.81 | 0.5301 | 527.1 | -106.6 | |
| 1.03 | -54.00 | 0.61 | -54.00 | -21.81 | 29.52 | 30.28 | 239.77 | 0.5440 | -907.5 | 999999 | |
| 1.63 | 3.51 | 0.95 | 2.06 | -21.08 | 29.31 | 30.08 | 240.89 | 0.5374 | -830.7 | -660.5 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -20.65 | 28.93 | 29.69 | 241.40 | 0.5300 | -728.0 | -465.4 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -21.59 | 29.13 | 29.90 | 239.90 | 0.5379 | -553.0 | -598.5 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -25.65 | 30.07 | 30.83 | 233.90 | 0.5740 | -554.0 | -413.5 | |
| 6.43 | 12.85 | 3.75 | 7.50 | -21.08 | 28.84 | 29.60 | 240.58 | 0.5312 | -1000.3 | -531.8 | |
| 0.00 | 24.77 | 0.00 | 14.55 | -22.15 | 29.08 | 29.84 | 238.90 | 0.5404 | -765.0 | -556.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
