SDO HMI 2011-02-16 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.98 | 1173.10 | 157.42 | 754.33 | -19.57 | 35.49 | 38.46 | 247.18 | 0.6374 | 141.0 | 20.5 | |
|
previous
or next observation for the same group /

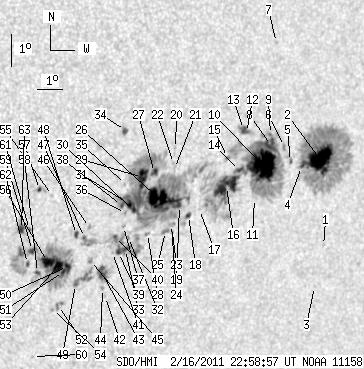

back to the solar disc SDO HMI 2011-02-16 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.30 | -20.79 | 40.95 | 43.92 | 247.28 | 0.7054 | -592.0 | -532.6 | |
| 36.34 | 254.40 | 24.73 | 173.52 | -18.23 | 39.96 | 42.92 | 250.66 | 0.6879 | 927.0 | 283.8 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -22.06 | 41.03 | 44.00 | 245.55 | 0.7096 | 502.0 | 426.6 | |
| 0.86 | -2.00 | 0.58 | -2.00 | -18.50 | 39.23 | 42.20 | 250.10 | 0.6798 | 904.5 | 999999 | |
| 1.63 | 4.37 | 1.09 | 2.92 | -18.39 | 38.74 | 41.70 | 250.14 | 0.6736 | 543.4 | 457.4 | |
| 0.00 | 2.40 | 0.00 | 1.59 | -17.96 | 38.36 | 41.33 | 250.68 | 0.6680 | 618.0 | 491.0 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -14.89 | 37.25 | 40.22 | 255.06 | 0.6481 | 619.0 | 424.7 | |
| 8.74 | 298.89 | 5.76 | 195.51 | -17.97 | 37.82 | 40.79 | 250.52 | 0.6615 | 576.3 | 299.5 | |
| 0.77 | -8.00 | 0.51 | -8.00 | -17.64 | 37.69 | 40.66 | 250.98 | 0.6591 | 629.2 | 999999 | |
| 54.43 | -8.00 | 35.81 | -8.00 | -18.56 | 37.62 | 40.59 | 249.58 | 0.6605 | 998.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -19.61 | 37.60 | 40.57 | 248.03 | 0.6630 | -164.0 | -92.7 | |
| 1.71 | 9.69 | 1.11 | 6.27 | -17.66 | 36.72 | 39.68 | 250.70 | 0.6470 | 284.4 | -47.0 | |
| 3.69 | -12.00 | 2.38 | -12.00 | -17.58 | 36.58 | 39.54 | 250.79 | 0.6450 | -510.8 | 999999 | |
| 2.23 | -8.00 | 1.45 | -8.00 | -18.81 | 36.75 | 39.72 | 248.96 | 0.6504 | 857.5 | 999999 | |
| 1.03 | -8.00 | 0.66 | -8.00 | -18.46 | 36.17 | 39.13 | 249.32 | 0.6422 | 426.2 | 999999 | |
| 26.66 | -8.00 | 17.28 | -8.00 | -19.33 | 36.37 | 39.34 | 248.06 | 0.6472 | 828.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -20.10 | 35.50 | 38.46 | 246.60 | 0.6388 | 627.0 | 433.9 | |
| 1.89 | 8.06 | 1.21 | 5.15 | -20.31 | 35.12 | 38.08 | 246.13 | 0.6349 | 586.9 | 456.6 | |
| 1.80 | 309.69 | 1.14 | 194.03 | -20.04 | 34.68 | 37.64 | 246.39 | 0.6285 | 674.0 | -154.2 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -18.34 | 34.07 | 37.03 | 248.84 | 0.6153 | -599.0 | -372.5 | |
| 0.00 | 2.14 | 0.00 | 1.35 | -18.94 | 34.18 | 37.15 | 247.93 | 0.6186 | -709.0 | -524.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -18.79 | 34.10 | 37.07 | 248.13 | 0.6172 | -561.0 | -466.3 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -20.87 | 34.64 | 37.60 | 245.10 | 0.6309 | 583.0 | 507.3 | |
| 0.00 | 3.51 | 0.00 | 2.23 | -20.63 | 34.53 | 37.49 | 245.42 | 0.6287 | 700.0 | 582.9 | |
| 0.00 | 3.51 | 0.00 | 2.23 | -20.86 | 34.35 | 37.32 | 245.00 | 0.6274 | 414.0 | 461.8 | |
| 26.57 | -19.00 | 16.69 | -19.00 | -19.88 | 33.80 | 36.77 | 246.30 | 0.6171 | -979.3 | 999999 | |
| 3.17 | -19.00 | 1.98 | -19.00 | -19.11 | 33.44 | 36.41 | 247.38 | 0.6098 | -831.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -20.97 | 33.67 | 36.64 | 244.55 | 0.6194 | -488.0 | -283.5 | |
| 12.34 | -19.00 | 7.66 | -19.00 | -19.29 | 33.02 | 35.99 | 246.93 | 0.6051 | -1076.1 | 999999 | |
| 1.71 | -19.00 | 1.07 | -19.00 | -20.31 | 32.94 | 35.90 | 245.27 | 0.6078 | 777.2 | 999999 | |
| 2.57 | -19.00 | 1.60 | -19.00 | -20.14 | 32.74 | 35.70 | 245.45 | 0.6046 | 1126.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -21.14 | 32.97 | 35.94 | 243.97 | 0.6114 | -515.0 | -407.9 | |
| 1.63 | 44.06 | 1.02 | 27.52 | -21.51 | 32.96 | 35.92 | 243.39 | 0.6128 | -647.8 | -40.2 | |
| 2.66 | 3.43 | 1.62 | 2.09 | -17.93 | 32.04 | 35.00 | 248.78 | 0.5877 | -797.1 | -755.1 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -19.55 | 32.43 | 35.39 | 246.28 | 0.5985 | -431.0 | -291.2 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -20.42 | 32.65 | 35.62 | 244.97 | 0.6047 | 784.0 | 624.6 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -20.82 | 32.68 | 35.65 | 244.35 | 0.6066 | 856.0 | 688.5 | |
| 0.34 | -19.00 | 0.21 | -19.00 | -20.19 | 32.44 | 35.40 | 245.24 | 0.6010 | 894.0 | 999999 | |
| 2.06 | -33.00 | 1.28 | -33.00 | -21.62 | 32.71 | 35.68 | 243.10 | 0.6103 | -694.3 | 999999 | |
| 1.46 | -33.00 | 0.90 | -33.00 | -21.14 | 32.46 | 35.43 | 243.74 | 0.6052 | 522.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -21.63 | 32.48 | 35.45 | 242.97 | 0.6075 | -693.0 | -548.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.99 | 32.60 | 35.57 | 240.92 | 0.6150 | -543.0 | -481.9 | |
| 8.91 | 15.34 | 5.55 | 9.56 | -22.30 | 32.28 | 35.25 | 241.83 | 0.6079 | -737.7 | -468.7 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -22.75 | 32.41 | 35.38 | 241.19 | 0.6116 | -546.0 | -452.1 | |
| 0.00 | 3.00 | 0.00 | 1.85 | -21.93 | 31.71 | 34.67 | 242.12 | 0.5993 | -864.0 | -743.9 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -20.93 | 31.40 | 34.36 | 243.57 | 0.5910 | -489.0 | -348.5 | |
| 1.20 | 11.49 | 0.74 | 7.06 | -21.25 | 31.29 | 34.25 | 243.00 | 0.5910 | -569.3 | -199.5 | |
| 2.49 | 2.83 | 1.52 | 1.73 | -21.18 | 30.96 | 33.93 | 242.95 | 0.5866 | -794.9 | -712.5 | |
| 1.63 | 12.34 | 1.00 | 7.63 | -22.70 | 31.34 | 34.31 | 240.72 | 0.5984 | -645.2 | -734.8 | |
| 2.31 | 134.31 | 1.42 | 81.54 | -22.17 | 30.88 | 33.85 | 241.31 | 0.5902 | -723.6 | -490.4 | |
| 1.63 | -50.00 | 1.00 | -50.00 | -22.33 | 30.77 | 33.74 | 240.99 | 0.5897 | -758.2 | 999999 | |
| 0.00 | 4.03 | 0.00 | 2.48 | -23.38 | 30.88 | 33.84 | 239.39 | 0.5962 | -845.0 | -677.5 | |
| 8.40 | -50.00 | 5.12 | -50.00 | -22.20 | 30.50 | 33.47 | 241.07 | 0.5857 | -979.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -23.52 | 30.68 | 33.65 | 239.07 | 0.5946 | -737.0 | -657.6 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -20.06 | 29.77 | 32.74 | 244.20 | 0.5664 | -494.0 | -389.8 | |
| 8.57 | -50.00 | 5.20 | -50.00 | -22.07 | 30.09 | 33.05 | 241.04 | 0.5799 | -1084.4 | 999999 | |
| 1.37 | 5.31 | 0.82 | 3.17 | -19.90 | 29.25 | 32.22 | 244.19 | 0.5590 | 547.2 | -11.3 | |
| 1.80 | 9.00 | 1.09 | 5.46 | -22.43 | 29.80 | 32.77 | 240.30 | 0.5782 | -820.7 | -404.7 | |
| 3.09 | -50.00 | 1.86 | -50.00 | -21.77 | 29.44 | 32.40 | 241.17 | 0.5703 | -862.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -25.01 | 30.35 | 33.32 | 236.55 | 0.5988 | -600.0 | -547.6 | |
| 1.03 | 1.46 | 0.62 | 0.87 | -21.14 | 29.17 | 32.13 | 242.06 | 0.5638 | -896.2 | -817.0 | |
| 1.46 | -50.00 | 0.88 | -50.00 | -22.17 | 29.35 | 32.32 | 240.45 | 0.5713 | -726.8 | 999999 | |
| 4.80 | 7.71 | 2.86 | 4.60 | -21.16 | 28.87 | 31.84 | 241.86 | 0.5601 | -956.3 | -591.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
