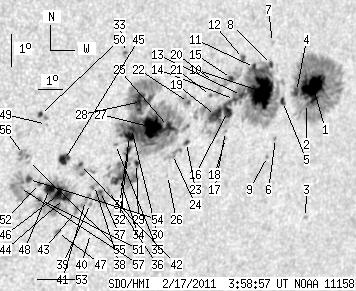

SDO HMI 2011-02-17 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 231.77 | 1097.65 | 154.78 | 733.53 | -19.57 | 35.51 | 41.22 | 248.10 | 0.6706 | 108.5 | 37.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-17 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.37 | 245.14 | 25.87 | 174.80 | -18.23 | 40.00 | 45.70 | 251.26 | 0.7202 | 865.5 | 237.5 | |
| 0.69 | -1.00 | 0.49 | -1.00 | -18.73 | 39.86 | 45.56 | 250.54 | 0.7195 | 468.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.95 | -22.14 | 41.14 | 46.85 | 246.21 | 0.7408 | 485.0 | 408.3 | |
| 3.35 | -1.00 | 2.35 | -1.00 | -18.41 | 39.30 | 45.00 | 250.87 | 0.7125 | 837.8 | 999999 | |
| 2.92 | 259.29 | 2.04 | 177.08 | -18.75 | 38.80 | 44.50 | 250.28 | 0.7074 | 352.0 | 348.5 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -19.88 | 38.88 | 44.58 | 248.73 | 0.7107 | -478.0 | -312.2 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -17.03 | 37.82 | 43.53 | 252.52 | 0.6927 | 723.0 | 620.4 | |
| 2.14 | -5.00 | 1.47 | -5.00 | -17.69 | 37.98 | 43.68 | 251.61 | 0.6957 | 481.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -20.45 | 38.73 | 44.43 | 247.90 | 0.7103 | -728.0 | -609.5 | |
| 46.83 | -5.00 | 32.18 | -5.00 | -18.53 | 37.81 | 43.51 | 250.38 | 0.6954 | 933.1 | 999999 | |
| 1.80 | -5.00 | 1.22 | -5.00 | -17.84 | 37.29 | 43.00 | 251.26 | 0.6879 | 407.0 | 999999 | |
| 2.74 | 3.09 | 1.85 | 2.08 | -17.61 | 36.76 | 42.46 | 251.48 | 0.6810 | -462.3 | -312.2 | |
| 2.32 | -5.00 | 1.57 | -5.00 | -18.72 | 37.01 | 42.71 | 249.93 | 0.6863 | 973.7 | 999999 | |
| 1.20 | -5.00 | 0.81 | -5.00 | -18.86 | 36.75 | 42.46 | 249.66 | 0.6836 | 925.1 | 999999 | |
| 2.83 | 22.13 | 1.90 | 14.85 | -18.24 | 36.44 | 42.14 | 250.48 | 0.6785 | 808.7 | 511.9 | |
| 7.63 | -5.00 | 5.16 | -5.00 | -19.24 | 36.58 | 42.28 | 249.06 | 0.6824 | 782.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -19.84 | 36.69 | 42.39 | 248.22 | 0.6853 | 446.0 | 295.9 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -20.05 | 36.76 | 42.46 | 247.94 | 0.6866 | 430.0 | 324.6 | |
| 11.84 | -5.00 | 7.95 | -5.00 | -19.40 | 36.12 | 41.82 | 248.71 | 0.6774 | 781.8 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.66 | -18.39 | 35.73 | 41.43 | 250.08 | 0.6702 | 377.0 | 337.2 | |
| 0.86 | -15.00 | 0.57 | -15.00 | -18.82 | 35.73 | 41.43 | 249.46 | 0.6713 | -356.0 | 999999 | |
| 1.29 | 10.12 | 0.85 | 6.65 | -19.09 | 34.89 | 40.60 | 248.81 | 0.6619 | -543.3 | -236.5 | |
| 1.54 | 2.40 | 1.03 | 1.60 | -20.30 | 35.18 | 40.89 | 247.12 | 0.6687 | 477.3 | 394.5 | |
| 0.00 | 7.72 | 0.00 | 5.10 | -20.70 | 34.73 | 40.43 | 246.39 | 0.6645 | 647.0 | 621.7 | |
| 3.09 | 338.89 | 2.02 | 219.47 | -19.87 | 34.30 | 40.01 | 247.47 | 0.6569 | -616.3 | -98.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -21.35 | 34.73 | 40.44 | 245.44 | 0.6666 | 675.0 | 456.1 | |
| 24.10 | -25.00 | 15.66 | -25.00 | -19.95 | 33.67 | 39.37 | 247.15 | 0.6494 | -931.9 | 999999 | |
| 21.01 | -25.00 | 13.50 | -25.00 | -19.20 | 33.01 | 38.71 | 248.07 | 0.6390 | -963.2 | 999999 | |
| 1.97 | -25.00 | 1.28 | -25.00 | -21.08 | 33.36 | 39.07 | 245.35 | 0.6493 | -344.3 | 999999 | |
| 2.49 | -25.00 | 1.60 | -25.00 | -20.04 | 32.84 | 38.55 | 246.73 | 0.6396 | 864.1 | 999999 | |
| 5.58 | -25.00 | 3.59 | -25.00 | -20.29 | 32.83 | 38.54 | 246.35 | 0.6403 | 965.2 | 999999 | |
| 2.66 | -25.00 | 1.71 | -25.00 | -20.68 | 32.91 | 38.62 | 245.78 | 0.6425 | 765.9 | 999999 | |
| 0.43 | 2.40 | 0.27 | 1.52 | -17.78 | 31.99 | 37.70 | 249.96 | 0.6221 | -811.4 | -655.9 | |
| 10.46 | -25.00 | 6.76 | -25.00 | -21.59 | 32.82 | 38.53 | 244.39 | 0.6447 | -688.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -20.57 | 32.35 | 38.06 | 245.75 | 0.6353 | 746.0 | 630.4 | |
| 0.00 | 2.32 | 0.00 | 1.49 | -21.98 | 32.50 | 38.21 | 243.67 | 0.6422 | -474.0 | -474.2 | |
| 1.63 | 12.61 | 1.05 | 8.11 | -22.03 | 32.19 | 37.90 | 243.46 | 0.6388 | -715.7 | -625.6 | |
| 0.00 | 3.69 | 0.00 | 2.36 | -21.87 | 31.90 | 37.60 | 243.59 | 0.6346 | -716.0 | -703.4 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -22.43 | 31.91 | 37.62 | 242.75 | 0.6369 | -692.0 | -620.5 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -23.34 | 32.21 | 37.92 | 241.52 | 0.6442 | -492.0 | -389.5 | |
| 0.00 | 6.00 | 0.00 | 3.84 | -22.35 | 31.69 | 37.39 | 242.77 | 0.6339 | -817.0 | -727.2 | |
| 0.94 | 14.58 | 0.60 | 9.23 | -21.27 | 31.16 | 36.86 | 244.19 | 0.6233 | -536.9 | -150.6 | |
| 0.00 | 3.52 | 0.00 | 2.24 | -22.68 | 31.43 | 37.13 | 242.16 | 0.6322 | -655.0 | -569.5 | |
| 1.46 | 89.55 | 0.92 | 56.33 | -22.34 | 30.84 | 36.54 | 242.40 | 0.6238 | -784.6 | -446.0 | |
| 7.89 | 10.12 | 4.94 | 6.34 | -21.16 | 30.49 | 36.20 | 244.07 | 0.6147 | -858.2 | -641.7 | |
| 7.38 | -44.00 | 4.65 | -44.00 | -22.24 | 30.57 | 36.27 | 242.43 | 0.6201 | -934.3 | 999999 | |
| 0.00 | 3.17 | 0.00 | 2.02 | -23.40 | 30.89 | 36.60 | 240.82 | 0.6290 | -736.0 | -624.6 | |
| 7.12 | -44.00 | 4.46 | -44.00 | -22.08 | 30.16 | 35.87 | 242.49 | 0.6145 | -1030.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -20.15 | 29.51 | 35.22 | 245.24 | 0.5984 | -523.0 | -433.2 | |
| 1.89 | 4.80 | 1.16 | 2.95 | -19.87 | 29.21 | 34.91 | 245.57 | 0.5934 | 675.3 | 63.7 | |
| 1.03 | -44.00 | 0.64 | -44.00 | -22.44 | 29.88 | 35.58 | 241.79 | 0.6125 | -872.2 | 999999 | |
| 1.46 | -44.00 | 0.91 | -44.00 | -21.95 | 29.73 | 35.44 | 242.48 | 0.6087 | -782.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -24.91 | 30.38 | 36.08 | 238.31 | 0.6301 | -661.0 | -630.2 | |
| 2.83 | 3.60 | 1.75 | 2.23 | -21.86 | 29.28 | 34.98 | 242.40 | 0.6026 | -881.3 | -771.2 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -21.32 | 29.13 | 34.83 | 243.20 | 0.5984 | -634.0 | -647.8 | |
| 0.00 | 8.49 | 0.00 | 5.22 | -21.12 | 28.88 | 34.58 | 243.40 | 0.5944 | -932.0 | -779.2 | |
| 0.00 | 26.59 | 0.00 | 16.43 | -22.13 | 29.00 | 34.71 | 241.85 | 0.6005 | -819.0 | -525.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
