SDO HMI 2011-02-17 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 236.53 | 1107.12 | 161.10 | 757.15 | -19.60 | 35.48 | 42.82 | 248.51 | 0.6897 | 72.2 | 40.2 | |
|
previous
or next observation for the same group /

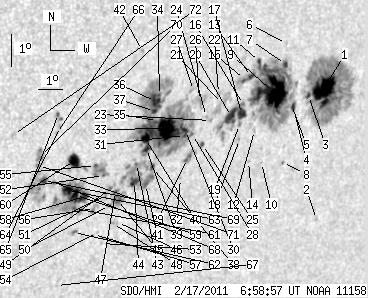

back to the solar disc SDO HMI 2011-02-17 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.37 | 230.28 | 24.40 | 168.97 | -18.22 | 39.91 | 47.25 | 251.55 | 0.7377 | 991.3 | 223.4 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -22.16 | 41.19 | 48.53 | 246.58 | 0.7586 | 531.0 | 433.2 | |
| 1.80 | -1.00 | 1.30 | -1.00 | -18.48 | 39.31 | 46.66 | 251.08 | 0.7315 | 833.8 | 999999 | |
| 2.23 | 234.82 | 1.60 | 165.32 | -18.90 | 38.78 | 46.12 | 250.42 | 0.7262 | 372.6 | 385.3 | |
| 0.51 | -4.00 | 0.37 | -4.00 | -18.81 | 38.66 | 46.00 | 250.51 | 0.7247 | -99.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -17.02 | 37.84 | 45.18 | 252.84 | 0.7122 | 362.0 | 340.5 | |
| 2.66 | -4.00 | 1.88 | -4.00 | -17.65 | 37.99 | 45.34 | 251.99 | 0.7150 | 492.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -20.58 | 38.91 | 46.25 | 248.16 | 0.7309 | -536.0 | -472.5 | |
| 48.90 | -4.00 | 34.46 | -4.00 | -18.52 | 37.75 | 45.09 | 250.73 | 0.7138 | 1059.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -20.66 | 37.98 | 45.32 | 247.84 | 0.7208 | -330.0 | -345.3 | |
| 1.63 | -4.00 | 1.13 | -4.00 | -17.65 | 36.85 | 44.19 | 251.77 | 0.7017 | -258.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -19.72 | 37.32 | 44.67 | 248.97 | 0.7113 | 429.0 | 313.4 | |
| 2.40 | -4.00 | 1.66 | -4.00 | -18.12 | 36.65 | 43.99 | 251.06 | 0.7003 | 933.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -20.67 | 37.40 | 44.75 | 247.67 | 0.7144 | 254.0 | 258.3 | |
| 0.94 | -4.00 | 0.65 | -4.00 | -18.24 | 36.39 | 43.73 | 250.85 | 0.6973 | 906.2 | 999999 | |
| 0.26 | 38.87 | 0.18 | 26.80 | -18.99 | 36.59 | 43.93 | 249.83 | 0.7012 | 899.0 | 522.0 | |
| 6.86 | -16.00 | 4.76 | -16.00 | -19.26 | 36.59 | 43.93 | 249.44 | 0.7019 | 746.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -20.05 | 36.78 | 44.12 | 248.39 | 0.7058 | 410.0 | 315.7 | |
| 0.00 | 1.89 | 0.00 | 1.31 | -19.60 | 36.62 | 43.96 | 248.98 | 0.7029 | 449.0 | 342.4 | |
| 10.90 | -16.00 | 7.51 | -16.00 | -19.39 | 36.20 | 43.54 | 249.17 | 0.6976 | 821.2 | 999999 | |
| 0.00 | 15.61 | 0.00 | 10.67 | -19.03 | 35.69 | 43.03 | 249.56 | 0.6908 | -41.0 | 19.6 | |
| 0.00 | 2.06 | 0.00 | 1.40 | -18.74 | 35.43 | 42.77 | 249.90 | 0.6871 | 187.0 | 142.5 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -19.58 | 35.35 | 42.69 | 248.69 | 0.6881 | -567.0 | -447.2 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -19.47 | 35.15 | 42.49 | 248.79 | 0.6854 | -589.0 | -523.1 | |
| 1.72 | 2.06 | 1.17 | 1.40 | -20.32 | 35.26 | 42.60 | 247.60 | 0.6889 | 512.7 | 276.0 | |
| 0.00 | 12.44 | 0.00 | 8.37 | -19.01 | 34.70 | 42.04 | 249.33 | 0.6791 | -183.0 | -231.5 | |
| 0.00 | 1.89 | 0.00 | 1.26 | -18.73 | 34.36 | 41.70 | 249.65 | 0.6743 | -445.0 | -361.5 | |
| 0.86 | 284.50 | 0.58 | 188.29 | -20.05 | 34.74 | 42.08 | 247.83 | 0.6821 | 534.9 | -108.5 | |
| 1.80 | 8.24 | 1.22 | 5.58 | -20.79 | 34.78 | 42.12 | 246.79 | 0.6846 | 656.2 | 511.1 | |
| 1.29 | -28.00 | 0.86 | -28.00 | -19.96 | 34.41 | 41.75 | 247.88 | 0.6780 | -535.3 | 999999 | |
| 1.29 | -28.00 | 0.87 | -28.00 | -20.11 | 34.42 | 41.76 | 247.66 | 0.6785 | 550.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -21.42 | 34.69 | 42.04 | 245.87 | 0.6854 | 667.0 | 551.4 | |
| 30.46 | -28.00 | 20.24 | -28.00 | -19.95 | 33.65 | 40.99 | 247.66 | 0.6690 | -1014.0 | 999999 | |
| 1.03 | -28.00 | 0.68 | -28.00 | -18.99 | 33.02 | 40.37 | 248.90 | 0.6588 | -873.9 | 999999 | |
| 1.20 | -28.00 | 0.79 | -28.00 | -19.74 | 33.17 | 40.51 | 247.82 | 0.6626 | -770.6 | 999999 | |
| 9.95 | -28.00 | 6.53 | -28.00 | -19.18 | 32.92 | 40.26 | 248.59 | 0.6579 | -1067.1 | 999999 | |
| 1.72 | -28.00 | 1.13 | -28.00 | -19.48 | 32.97 | 40.31 | 248.15 | 0.6594 | -917.3 | 999999 | |
| 2.49 | 57.23 | 1.65 | 37.85 | -21.17 | 33.42 | 40.76 | 245.81 | 0.6698 | -407.6 | -120.3 | |
| 2.83 | -28.00 | 1.87 | -28.00 | -20.62 | 32.99 | 40.33 | 246.47 | 0.6630 | 799.4 | 999999 | |
| 6.26 | -28.00 | 4.12 | -28.00 | -20.32 | 32.85 | 40.19 | 246.87 | 0.6604 | 1131.3 | 999999 | |
| 2.57 | -38.00 | 1.71 | -38.00 | -21.71 | 33.31 | 40.65 | 244.99 | 0.6702 | 318.9 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -17.69 | 31.97 | 39.31 | 250.56 | 0.6424 | -802.0 | -634.6 | |
| 0.94 | -38.00 | 0.62 | -38.00 | -21.10 | 32.73 | 40.07 | 245.68 | 0.6614 | 566.5 | 999999 | |
| 6.43 | -38.00 | 4.25 | -38.00 | -21.65 | 32.83 | 40.17 | 244.90 | 0.6643 | -683.7 | 999999 | |
| 5.92 | 14.67 | 3.89 | 9.65 | -22.25 | 32.32 | 39.66 | 243.85 | 0.6604 | -666.1 | -474.0 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -22.95 | 32.56 | 39.90 | 242.92 | 0.6658 | -491.0 | -422.8 | |
| 1.63 | -45.00 | 1.07 | -45.00 | -22.01 | 32.15 | 39.50 | 244.13 | 0.6577 | -793.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.19 | -22.99 | 32.37 | 39.71 | 242.78 | 0.6637 | -615.0 | -534.2 | |
| 0.60 | 3.26 | 0.39 | 2.13 | -21.94 | 31.92 | 39.26 | 244.15 | 0.6546 | -880.9 | -747.7 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -22.45 | 32.05 | 39.40 | 243.44 | 0.6581 | -737.0 | -631.4 | |
| 0.00 | 2.66 | 0.00 | 1.74 | -22.16 | 31.79 | 39.13 | 243.77 | 0.6539 | -847.0 | -743.6 | |
| 0.43 | 17.24 | 0.28 | 11.16 | -21.56 | 31.51 | 38.85 | 244.55 | 0.6484 | -457.8 | -38.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -23.63 | 32.13 | 39.48 | 241.76 | 0.6635 | -323.0 | -224.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -23.31 | 31.85 | 39.19 | 242.11 | 0.6589 | -445.0 | -317.2 | |
| 1.12 | -52.00 | 0.72 | -52.00 | -21.28 | 31.10 | 38.44 | 244.81 | 0.6425 | -375.8 | 999999 | |
| 0.00 | 5.06 | 0.00 | 3.30 | -22.59 | 31.48 | 38.82 | 243.01 | 0.6518 | -691.0 | -513.4 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -23.38 | 31.71 | 39.05 | 241.95 | 0.6576 | -570.0 | -533.9 | |
| 6.01 | 81.16 | 3.88 | 52.10 | -22.25 | 30.96 | 38.30 | 243.30 | 0.6444 | -699.3 | -442.3 | |
| 8.49 | -58.00 | 5.46 | -58.00 | -22.25 | 30.59 | 37.93 | 243.15 | 0.6400 | -938.2 | 999999 | |
| 11.07 | 20.25 | 7.05 | 12.92 | -21.19 | 30.22 | 37.56 | 244.60 | 0.6315 | -822.2 | -197.6 | |
| 1.37 | -58.00 | 0.89 | -58.00 | -22.65 | 30.68 | 38.02 | 242.59 | 0.6426 | -541.3 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.34 | -23.38 | 30.88 | 38.22 | 241.59 | 0.6480 | -734.0 | -626.2 | |
| 8.67 | -58.00 | 5.54 | -58.00 | -22.12 | 30.22 | 37.56 | 243.19 | 0.6351 | -1003.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -20.20 | 29.38 | 36.72 | 245.79 | 0.6175 | -564.0 | -452.0 | |
| 1.20 | 3.60 | 0.75 | 2.26 | -19.82 | 29.19 | 36.54 | 246.33 | 0.6138 | 653.4 | 64.5 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -20.42 | 29.28 | 36.62 | 245.41 | 0.6171 | -712.0 | -532.3 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -25.05 | 30.77 | 38.11 | 239.11 | 0.6539 | -391.0 | -312.3 | |
| 1.46 | 1.46 | 0.93 | 0.93 | -21.91 | 29.64 | 36.98 | 243.25 | 0.6272 | -811.1 | 0.0 | |
| 3.26 | 31.66 | 2.06 | 19.96 | -21.88 | 29.19 | 36.53 | 243.10 | 0.6216 | -935.9 | -552.7 | |
| 0.00 | 7.89 | 0.00 | 4.94 | -21.13 | 28.85 | 36.19 | 244.11 | 0.6145 | -930.0 | -798.0 | |
| 0.00 | 3.00 | 0.00 | 1.88 | -21.44 | 28.86 | 36.20 | 243.64 | 0.6158 | -797.0 | -679.1 | |
| 0.00 | 2.06 | 0.00 | 1.27 | -20.57 | 27.64 | 34.98 | 244.47 | 0.5971 | -668.0 | -539.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
