SDO HMI 2011-02-17 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.46 | 1036.92 | 158.64 | 723.07 | -19.51 | 35.62 | 44.05 | 248.94 | 0.7036 | 106.1 | 60.0 | |
|
previous
or next observation for the same group /

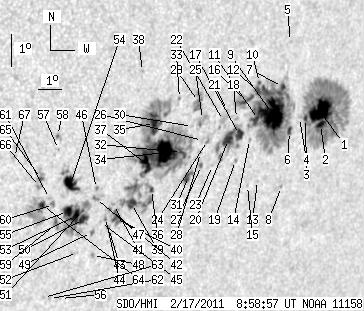

back to the solar disc SDO HMI 2011-02-17 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.51 | 220.33 | 22.02 | 165.09 | -18.24 | 39.94 | 48.37 | 251.69 | 0.7501 | 1003.3 | 187.1 | |
| 4.03 | -1.00 | 3.02 | -1.00 | -18.63 | 40.09 | 48.52 | 251.21 | 0.7522 | 706.6 | 999999 | |
| 1.54 | -1.00 | 1.14 | -1.00 | -18.51 | 39.33 | 47.77 | 251.24 | 0.7439 | 862.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -18.50 | 39.05 | 47.49 | 251.20 | 0.7407 | 676.0 | 518.8 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -16.28 | 37.90 | 46.33 | 254.04 | 0.7245 | 337.0 | 393.3 | |
| 2.83 | 239.20 | 2.07 | 171.55 | -18.96 | 38.76 | 47.19 | 250.54 | 0.7382 | 371.9 | 370.9 | |
| 2.14 | -6.00 | 1.54 | -6.00 | -17.65 | 37.97 | 46.41 | 252.18 | 0.7273 | 518.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -20.63 | 39.04 | 47.47 | 248.36 | 0.7444 | -501.0 | -368.9 | |
| 48.99 | -6.00 | 35.21 | -6.00 | -18.49 | 37.81 | 46.24 | 251.00 | 0.7268 | 1065.4 | 999999 | |
| 1.29 | -6.00 | 0.91 | -6.00 | -17.61 | 36.93 | 45.36 | 252.04 | 0.7153 | -416.5 | 999999 | |
| 0.77 | -6.00 | 0.55 | -6.00 | -18.72 | 37.26 | 45.69 | 250.58 | 0.7210 | 815.7 | 999999 | |
| 3.60 | -6.00 | 2.55 | -6.00 | -17.89 | 36.93 | 45.36 | 251.66 | 0.7158 | 797.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -20.54 | 37.89 | 46.32 | 248.22 | 0.7316 | -450.0 | -515.0 | |
| 0.00 | 1.37 | 0.00 | 0.98 | -19.35 | 37.07 | 45.51 | 249.67 | 0.7201 | 438.0 | 383.2 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -20.73 | 37.50 | 45.94 | 247.88 | 0.7278 | 277.0 | 262.9 | |
| 5.83 | -6.00 | 4.10 | -6.00 | -18.20 | 36.50 | 44.93 | 251.14 | 0.7114 | 840.0 | 999999 | |
| 6.09 | 41.01 | 4.30 | 28.79 | -19.23 | 36.59 | 45.02 | 249.72 | 0.7143 | 738.7 | 494.2 | |
| 0.00 | 1.46 | 0.00 | 1.02 | -18.77 | 36.29 | 44.73 | 250.31 | 0.7100 | 317.0 | 311.0 | |
| 0.00 | 1.63 | 0.00 | 1.15 | -20.03 | 36.69 | 45.12 | 248.65 | 0.7172 | 382.0 | 316.3 | |
| 9.44 | -17.00 | 6.61 | -17.00 | -19.42 | 36.16 | 44.60 | 249.37 | 0.7099 | 818.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -18.56 | 35.83 | 44.26 | 250.50 | 0.7042 | 643.0 | 549.6 | |
| 0.00 | 9.09 | 0.00 | 6.32 | -18.87 | 35.76 | 44.19 | 250.04 | 0.7040 | 291.0 | 160.9 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -20.26 | 35.75 | 44.18 | 248.11 | 0.7070 | 527.0 | 381.7 | |
| 0.00 | 2.92 | 0.00 | 2.02 | -19.53 | 35.28 | 43.71 | 249.01 | 0.6999 | -544.0 | -418.4 | |
| 0.00 | 8.67 | 0.00 | 5.94 | -18.91 | 34.86 | 43.29 | 249.78 | 0.6936 | -110.0 | -119.5 | |
| 0.00 | 1.97 | 0.00 | 1.36 | -19.54 | 35.06 | 43.50 | 248.94 | 0.6975 | -567.0 | -375.3 | |
| 1.29 | 1.72 | 0.89 | 1.19 | -20.29 | 35.28 | 43.71 | 247.93 | 0.7017 | 477.7 | 423.2 | |
| 0.00 | 2.14 | 0.00 | 1.48 | -19.91 | 35.10 | 43.53 | 248.43 | 0.6988 | 653.0 | 465.6 | |
| 0.00 | 13.64 | 0.00 | 9.29 | -18.39 | 34.52 | 42.95 | 250.45 | 0.6885 | 671.0 | 310.5 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -19.16 | 34.50 | 42.94 | 249.35 | 0.6900 | -565.0 | -543.3 | |
| 5.49 | 6.61 | 3.78 | 4.55 | -20.67 | 34.85 | 43.28 | 247.29 | 0.6977 | 690.3 | 509.3 | |
| 0.69 | 248.21 | 0.47 | 166.82 | -19.97 | 34.30 | 42.73 | 248.13 | 0.6896 | -498.8 | -96.6 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -18.36 | 33.70 | 42.13 | 250.29 | 0.6787 | -495.0 | -367.7 | |
| 29.43 | -32.00 | 19.87 | -32.00 | -20.02 | 33.63 | 42.07 | 247.87 | 0.6819 | -964.7 | 999999 | |
| 11.24 | -32.00 | 7.49 | -32.00 | -19.19 | 32.90 | 41.33 | 248.88 | 0.6710 | -1073.7 | 999999 | |
| 2.06 | 57.57 | 1.39 | 38.66 | -21.18 | 33.43 | 41.86 | 246.15 | 0.6827 | -360.8 | 53.7 | |
| 9.44 | -32.00 | 6.32 | -32.00 | -20.42 | 32.91 | 41.35 | 247.09 | 0.6745 | 1043.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -17.67 | 31.97 | 40.40 | 250.88 | 0.6559 | -761.0 | -627.7 | |
| 7.04 | -36.00 | 4.72 | -36.00 | -21.67 | 32.74 | 41.18 | 245.23 | 0.6762 | -725.1 | 999999 | |
| 3.43 | 11.75 | 2.29 | 7.84 | -22.17 | 32.24 | 40.68 | 244.33 | 0.6720 | -796.7 | -656.9 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -21.75 | 32.01 | 40.45 | 244.85 | 0.6680 | -734.0 | -590.4 | |
| 1.29 | 1.54 | 0.85 | 1.02 | -21.92 | 31.90 | 40.33 | 244.57 | 0.6672 | -878.0 | -837.7 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -22.47 | 32.05 | 40.48 | 243.83 | 0.6708 | -766.0 | -584.8 | |
| 0.00 | 2.23 | 0.00 | 1.48 | -22.17 | 31.82 | 40.25 | 244.17 | 0.6671 | -891.0 | -739.2 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -22.34 | 31.67 | 40.10 | 243.87 | 0.6659 | -733.0 | -579.6 | |
| 0.00 | 1.46 | 0.00 | 0.96 | -21.32 | 31.16 | 39.59 | 245.18 | 0.6565 | -169.0 | -179.4 | |
| 0.00 | 2.57 | 0.00 | 1.69 | -21.63 | 31.22 | 39.65 | 244.75 | 0.6582 | -796.0 | -572.2 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -23.37 | 31.70 | 40.13 | 242.40 | 0.6700 | -709.0 | -598.2 | |
| 0.94 | 2.32 | 0.62 | 1.53 | -22.67 | 31.41 | 39.84 | 243.30 | 0.6641 | -502.8 | -586.6 | |
| 5.41 | 59.72 | 3.54 | 38.97 | -22.30 | 30.95 | 39.38 | 243.66 | 0.6573 | -685.1 | -384.6 | |
| 0.77 | -50.00 | 0.50 | -50.00 | -22.03 | 30.81 | 39.25 | 244.00 | 0.6548 | -643.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -23.32 | 31.05 | 39.48 | 242.21 | 0.6624 | -706.0 | -491.6 | |
| 6.69 | -50.00 | 4.37 | -50.00 | -22.20 | 30.62 | 39.05 | 243.68 | 0.6532 | -979.7 | 999999 | |
| 14.07 | 24.11 | 9.08 | 15.55 | -21.25 | 30.07 | 38.50 | 244.88 | 0.6431 | -813.2 | -450.7 | |
| 6.69 | -50.00 | 4.34 | -50.00 | -22.10 | 30.22 | 38.65 | 243.66 | 0.6480 | -1062.4 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -24.78 | 30.87 | 39.30 | 240.04 | 0.6662 | -478.0 | -350.2 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -20.26 | 29.29 | 37.72 | 246.10 | 0.6301 | -510.0 | -401.1 | |
| 1.20 | 3.43 | 0.76 | 2.18 | -19.84 | 29.13 | 37.56 | 246.68 | 0.6268 | 589.9 | 141.0 | |
| 0.00 | 4.63 | 0.00 | 3.00 | -22.50 | 29.90 | 38.33 | 242.94 | 0.6457 | -859.0 | -721.5 | |
| 0.00 | 2.75 | 0.00 | 1.76 | -21.93 | 29.59 | 38.03 | 243.66 | 0.6399 | -921.0 | -764.5 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -21.76 | 29.38 | 37.81 | 243.83 | 0.6367 | -747.0 | -607.8 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -24.81 | 30.42 | 38.85 | 239.79 | 0.6612 | -659.0 | -575.8 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -24.80 | 30.16 | 38.60 | 239.69 | 0.6583 | -762.0 | -612.5 | |
| 3.69 | 30.20 | 2.36 | 19.30 | -21.99 | 29.17 | 37.60 | 243.39 | 0.6350 | -957.3 | -534.9 | |
| 1.54 | 6.95 | 0.98 | 4.41 | -21.18 | 28.88 | 37.31 | 244.52 | 0.6284 | -921.3 | -642.4 | |
| 0.00 | 3.00 | 0.00 | 1.91 | -21.43 | 28.87 | 37.30 | 244.13 | 0.6293 | -831.0 | -730.3 | |
| 0.00 | 3.00 | 0.00 | 1.87 | -20.62 | 27.65 | 36.08 | 244.87 | 0.6111 | -751.0 | -463.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
