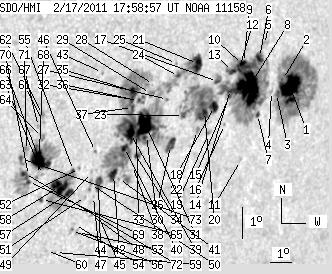

SDO HMI 2011-02-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.30 | 1060.60 | 171.82 | 801.42 | -19.50 | 35.54 | 48.92 | 249.99 | 0.7574 | 92.6 | 82.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.12 | 195.56 | 28.15 | 162.05 | -18.31 | 39.97 | 53.35 | 252.26 | 0.8019 | 858.3 | 119.3 | |
| 0.26 | -1.00 | 0.21 | -1.00 | -18.12 | 39.46 | 52.84 | 252.45 | 0.7967 | 878.0 | 999999 | |
| 0.43 | -1.00 | 0.35 | -1.00 | -18.56 | 39.35 | 52.72 | 251.88 | 0.7960 | 688.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.18 | -18.52 | 39.07 | 52.45 | 251.90 | 0.7932 | 601.0 | 477.8 | |
| 0.00 | 3.86 | 0.00 | 3.06 | -17.17 | 38.15 | 51.53 | 253.51 | 0.7825 | -414.0 | 72.6 | |
| 4.12 | 304.09 | 3.26 | 236.93 | -17.57 | 38.06 | 51.44 | 252.98 | 0.7819 | 659.1 | 367.0 | |
| 1.71 | -6.00 | 1.38 | -6.00 | -19.26 | 38.68 | 52.06 | 250.91 | 0.7901 | 265.0 | 999999 | |
| 41.49 | -6.00 | 32.78 | -6.00 | -18.51 | 37.90 | 51.27 | 251.77 | 0.7812 | 1054.4 | 999999 | |
| 0.60 | -6.00 | 0.47 | -6.00 | -17.79 | 37.35 | 50.73 | 252.62 | 0.7748 | -178.6 | 999999 | |
| 1.11 | -6.00 | 0.87 | -6.00 | -17.85 | 37.33 | 50.71 | 252.54 | 0.7746 | 328.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.97 | -20.71 | 38.48 | 51.86 | 249.07 | 0.7900 | -615.0 | -488.6 | |
| 0.69 | -6.00 | 0.53 | -6.00 | -18.05 | 37.21 | 50.59 | 252.27 | 0.7735 | 963.6 | 999999 | |
| 3.09 | -6.00 | 2.39 | -6.00 | -18.10 | 36.94 | 50.32 | 252.16 | 0.7707 | 987.6 | 999999 | |
| 0.77 | -6.00 | 0.60 | -6.00 | -18.64 | 37.06 | 50.44 | 251.48 | 0.7727 | 674.7 | 999999 | |
| 0.34 | -6.00 | 0.27 | -6.00 | -18.89 | 37.06 | 50.44 | 251.16 | 0.7730 | 707.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -19.71 | 37.21 | 50.59 | 250.13 | 0.7757 | 445.0 | 399.9 | |
| 1.71 | -6.00 | 1.31 | -6.00 | -18.46 | 36.35 | 49.73 | 251.61 | 0.7650 | 810.8 | 999999 | |
| 6.43 | -6.00 | 4.95 | -6.00 | -19.22 | 36.51 | 49.89 | 250.66 | 0.7677 | 705.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -20.04 | 36.57 | 49.94 | 249.60 | 0.7695 | 388.0 | 281.9 | |
| 2.57 | -6.00 | 1.97 | -6.00 | -19.41 | 36.10 | 49.48 | 250.35 | 0.7637 | 865.1 | 999999 | |
| 10.97 | 341.99 | 8.21 | 248.94 | -18.01 | 35.22 | 48.60 | 252.04 | 0.7522 | 871.3 | 11.7 | |
| 0.00 | 2.23 | 0.00 | 1.70 | -20.00 | 36.01 | 49.39 | 249.56 | 0.7636 | 615.0 | 533.3 | |
| 2.31 | -6.00 | 1.74 | -6.00 | -19.61 | 35.17 | 48.55 | 249.92 | 0.7541 | -648.4 | 999999 | |
| 1.29 | -21.00 | 0.95 | -21.00 | -18.47 | 34.49 | 47.87 | 251.31 | 0.7449 | 594.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -18.09 | 34.26 | 47.64 | 251.78 | 0.7418 | -248.0 | -222.9 | |
| 8.83 | -21.00 | 6.62 | -21.00 | -20.56 | 34.94 | 48.32 | 248.63 | 0.7533 | 539.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -19.20 | 34.25 | 47.63 | 250.30 | 0.7435 | -455.0 | -360.3 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -18.81 | 33.46 | 46.84 | 250.68 | 0.7340 | -447.0 | -358.8 | |
| 0.00 | 3.43 | 0.00 | 2.49 | -19.09 | 33.42 | 46.80 | 250.30 | 0.7341 | -444.0 | -369.3 | |
| 0.77 | -21.00 | 0.57 | -21.00 | -20.35 | 33.73 | 47.11 | 248.65 | 0.7398 | -395.9 | 999999 | |
| 24.26 | -21.00 | 17.71 | -21.00 | -20.03 | 33.55 | 46.93 | 249.05 | 0.7373 | -902.1 | 999999 | |
| 1.29 | -21.00 | 0.93 | -21.00 | -19.34 | 32.97 | 46.35 | 249.86 | 0.7295 | -809.5 | 999999 | |
| 1.89 | -21.00 | 1.37 | -21.00 | -20.36 | 33.27 | 46.65 | 248.54 | 0.7348 | 312.0 | 999999 | |
| 0.26 | 4.46 | 0.19 | 3.27 | -20.96 | 33.46 | 46.84 | 247.78 | 0.7382 | 48.7 | -222.3 | |
| 3.43 | -21.00 | 2.46 | -21.00 | -19.09 | 32.65 | 46.03 | 250.14 | 0.7255 | -1059.6 | 999999 | |
| 1.71 | -21.00 | 1.23 | -21.00 | -19.33 | 32.69 | 46.07 | 249.82 | 0.7264 | -1036.6 | 999999 | |
| 1.03 | -21.00 | 0.74 | -21.00 | -19.57 | 32.78 | 46.16 | 249.51 | 0.7278 | -727.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -21.31 | 33.46 | 46.84 | 247.32 | 0.7389 | -380.0 | -361.2 | |
| 4.63 | -21.00 | 3.35 | -21.00 | -20.35 | 32.99 | 46.37 | 248.49 | 0.7317 | 1161.5 | 999999 | |
| 2.91 | -21.00 | 2.11 | -21.00 | -20.80 | 32.89 | 46.26 | 247.87 | 0.7315 | 865.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -21.75 | 33.00 | 46.38 | 246.62 | 0.7349 | -476.0 | -320.9 | |
| 5.74 | -21.00 | 4.16 | -21.00 | -21.65 | 32.72 | 46.10 | 246.69 | 0.7317 | -732.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -18.63 | 31.11 | 44.49 | 250.45 | 0.7070 | -395.0 | -402.5 | |
| 7.72 | 8.92 | 5.54 | 6.40 | -21.97 | 32.17 | 45.55 | 246.11 | 0.7264 | -750.3 | -492.4 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -22.88 | 32.51 | 45.89 | 244.98 | 0.7324 | -487.0 | -406.6 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -21.02 | 31.65 | 45.03 | 247.27 | 0.7184 | -542.0 | -368.6 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -22.38 | 32.11 | 45.49 | 245.54 | 0.7268 | -409.0 | -375.0 | |
| 0.00 | 1.63 | 0.00 | 1.18 | -22.96 | 32.27 | 45.65 | 244.80 | 0.7300 | -590.0 | -474.0 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -21.67 | 31.73 | 45.11 | 246.41 | 0.7208 | -464.0 | -390.5 | |
| 0.00 | 4.37 | 0.00 | 3.12 | -22.03 | 31.83 | 45.21 | 245.94 | 0.7228 | -812.0 | -690.4 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -22.41 | 31.76 | 45.14 | 245.40 | 0.7230 | -597.0 | -499.6 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -21.59 | 31.16 | 44.53 | 246.36 | 0.7142 | -643.0 | -501.7 | |
| 0.00 | 2.91 | 0.00 | 2.10 | -23.53 | 31.87 | 45.25 | 243.93 | 0.7273 | -379.0 | -332.2 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -23.30 | 31.63 | 45.01 | 244.17 | 0.7240 | -614.0 | -464.9 | |
| 1.20 | 61.98 | 0.84 | 43.47 | -21.67 | 30.92 | 44.30 | 246.18 | 0.7118 | 523.6 | -191.9 | |
| 0.00 | 2.31 | 0.00 | 1.66 | -23.49 | 31.58 | 44.96 | 243.89 | 0.7240 | -524.0 | -438.7 | |
| 4.29 | -55.00 | 3.02 | -55.00 | -22.35 | 31.01 | 44.39 | 245.28 | 0.7146 | -581.2 | 999999 | |
| 15.26 | -55.00 | 10.68 | -55.00 | -22.20 | 30.50 | 43.88 | 245.33 | 0.7086 | -936.5 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -24.22 | 31.17 | 44.54 | 242.79 | 0.7217 | -571.0 | -520.2 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -24.19 | 30.74 | 44.12 | 242.69 | 0.7171 | -215.0 | -214.0 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -20.33 | 29.11 | 42.49 | 247.56 | 0.6877 | -468.0 | -409.4 | |
| 0.00 | 3.09 | 0.00 | 2.09 | -20.09 | 28.99 | 42.37 | 247.86 | 0.6856 | 173.0 | 44.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -21.90 | 29.63 | 43.01 | 245.49 | 0.6980 | -463.0 | -346.1 | |
| 0.00 | 3.43 | 0.00 | 2.34 | -20.78 | 29.23 | 42.61 | 246.94 | 0.6902 | -609.0 | -555.5 | |
| 1.54 | 2.06 | 1.07 | 1.43 | -22.66 | 29.88 | 43.26 | 244.51 | 0.7030 | -643.7 | -726.2 | |
| 22.55 | 49.81 | 15.45 | 34.19 | -21.46 | 29.34 | 42.72 | 246.02 | 0.6934 | -910.8 | -174.9 | |
| 0.00 | 1.89 | 0.00 | 1.28 | -20.47 | 28.95 | 42.33 | 247.31 | 0.6861 | -708.0 | -615.1 | |
| 0.00 | 2.14 | 0.00 | 1.47 | -21.91 | 29.46 | 42.84 | 245.42 | 0.6961 | -495.0 | -223.1 | |
| 1.37 | 32.49 | 0.94 | 22.17 | -22.16 | 29.12 | 42.50 | 244.97 | 0.6929 | -712.9 | -533.2 | |
| 0.26 | -69.00 | 0.18 | -69.00 | -21.98 | 29.05 | 42.43 | 245.20 | 0.6916 | -808.0 | 999999 | |
| 0.00 | 3.69 | 0.00 | 2.50 | -21.23 | 28.70 | 42.07 | 246.15 | 0.6853 | -891.0 | -795.0 | |
| 2.49 | -69.00 | 1.69 | -69.00 | -21.93 | 28.86 | 42.24 | 245.21 | 0.6893 | -930.4 | 999999 | |
| 0.86 | 3.77 | 0.58 | 2.56 | -21.49 | 28.53 | 41.91 | 245.73 | 0.6841 | -926.5 | -763.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
