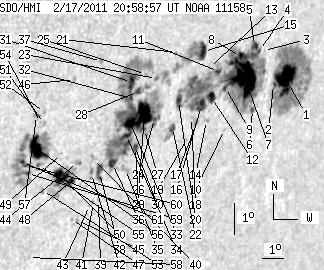

SDO HMI 2011-02-17 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 251.04 | 1019.20 | 195.21 | 795.41 | -19.51 | 35.46 | 50.49 | 250.25 | 0.7738 | 130.5 | 75.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-17 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.58 | 186.47 | 30.47 | 160.68 | -18.35 | 39.95 | 54.98 | 252.38 | 0.8178 | 775.4 | 71.9 | |
| 0.60 | -1.00 | 0.51 | -1.00 | -18.59 | 39.41 | 54.44 | 252.04 | 0.8128 | 683.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.20 | -17.63 | 38.44 | 53.48 | 253.13 | 0.8026 | 238.0 | 373.4 | |
| 0.86 | 309.67 | 0.71 | 249.35 | -17.65 | 38.24 | 53.28 | 253.08 | 0.8006 | 584.3 | 345.3 | |
| 3.34 | -4.00 | 2.73 | -4.00 | -17.53 | 37.93 | 52.96 | 253.21 | 0.7974 | 587.1 | 999999 | |
| 1.46 | -4.00 | 1.21 | -4.00 | -19.43 | 38.68 | 53.72 | 250.93 | 0.8066 | 276.5 | 999999 | |
| 52.73 | -4.00 | 43.04 | -4.00 | -18.49 | 37.83 | 52.86 | 251.99 | 0.7972 | 956.3 | 999999 | |
| 1.37 | -4.00 | 1.11 | -4.00 | -17.92 | 37.37 | 52.41 | 252.66 | 0.7921 | 470.6 | 999999 | |
| 2.06 | -4.00 | 1.65 | -4.00 | -18.90 | 37.03 | 52.06 | 251.38 | 0.7897 | 633.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.91 | -20.15 | 37.55 | 52.59 | 249.88 | 0.7964 | 394.0 | 348.3 | |
| 2.49 | -4.00 | 1.97 | -4.00 | -18.46 | 36.48 | 51.52 | 251.87 | 0.7836 | 902.7 | 999999 | |
| 5.83 | -4.00 | 4.64 | -4.00 | -19.26 | 36.47 | 51.51 | 250.85 | 0.7845 | 640.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -18.38 | 36.00 | 51.03 | 251.91 | 0.7785 | 117.0 | 125.9 | |
| 0.00 | 1.29 | 0.00 | 1.03 | -19.97 | 36.54 | 51.57 | 249.96 | 0.7860 | 429.0 | 311.1 | |
| 9.43 | 38.58 | 7.33 | 29.72 | -17.94 | 35.52 | 50.55 | 252.42 | 0.7730 | 797.6 | 497.2 | |
| 8.40 | -4.00 | 6.63 | -4.00 | -19.54 | 36.09 | 51.13 | 250.44 | 0.7809 | 696.0 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.69 | -20.10 | 36.09 | 51.13 | 249.73 | 0.7817 | 509.0 | 445.1 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -19.94 | 35.77 | 50.80 | 249.88 | 0.7782 | 264.0 | 313.2 | |
| 0.00 | 0.51 | 0.00 | 0.41 | -20.62 | 35.83 | 50.86 | 249.02 | 0.7798 | 524.0 | 424.7 | |
| 6.52 | -4.00 | 5.03 | -4.00 | -19.50 | 34.93 | 49.96 | 250.32 | 0.7688 | -614.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -18.08 | 34.26 | 49.30 | 252.06 | 0.7598 | -453.0 | -395.8 | |
| 3.86 | 9.69 | 2.99 | 7.50 | -20.32 | 34.99 | 50.03 | 249.26 | 0.7707 | 589.0 | 429.1 | |
| 1.20 | 12.35 | 0.90 | 9.34 | -18.93 | 33.64 | 48.67 | 250.84 | 0.7543 | -282.3 | 76.1 | |
| 1.46 | 268.95 | 1.11 | 200.23 | -20.13 | 34.03 | 49.06 | 249.34 | 0.7604 | -405.8 | -53.5 | |
| 0.00 | 1.37 | 0.00 | 1.02 | -18.86 | 33.09 | 48.12 | 250.85 | 0.7482 | -600.0 | -534.4 | |
| 23.49 | -24.00 | 17.66 | -24.00 | -20.05 | 33.52 | 48.55 | 249.35 | 0.7548 | -795.4 | 999999 | |
| 0.77 | -24.00 | 0.58 | -24.00 | -20.50 | 33.70 | 48.74 | 248.80 | 0.7575 | -412.6 | 999999 | |
| 3.17 | -24.00 | 2.36 | -24.00 | -19.39 | 32.96 | 48.00 | 250.12 | 0.7477 | -773.2 | 999999 | |
| 3.09 | -24.00 | 2.33 | -24.00 | -21.07 | 33.52 | 48.55 | 248.01 | 0.7566 | -406.5 | 999999 | |
| 0.26 | -24.00 | 0.19 | -24.00 | -21.02 | 33.45 | 48.48 | 248.07 | 0.7558 | 113.0 | 999999 | |
| 8.66 | -24.00 | 6.38 | -24.00 | -19.15 | 32.54 | 47.58 | 250.37 | 0.7427 | -1016.3 | 999999 | |
| 1.54 | -24.00 | 1.14 | -24.00 | -19.63 | 32.73 | 47.76 | 249.76 | 0.7455 | -703.1 | 999999 | |
| 10.72 | -24.00 | 7.98 | -24.00 | -20.35 | 32.97 | 48.00 | 248.86 | 0.7495 | 975.5 | 999999 | |
| 3.43 | -24.00 | 2.56 | -24.00 | -20.75 | 32.95 | 47.98 | 248.32 | 0.7500 | 672.7 | 999999 | |
| 0.00 | 4.97 | 0.00 | 3.75 | -21.77 | 33.35 | 48.38 | 247.06 | 0.7562 | 321.0 | 132.9 | |
| 4.37 | -24.00 | 3.25 | -24.00 | -21.64 | 32.67 | 47.70 | 247.08 | 0.7488 | -749.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.23 | -18.64 | 30.98 | 46.01 | 250.76 | 0.7244 | -642.0 | -470.5 | |
| 7.63 | 8.49 | 5.64 | 6.27 | -21.97 | 32.19 | 47.23 | 246.55 | 0.7444 | -667.0 | -496.0 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -22.81 | 32.53 | 47.56 | 245.51 | 0.7498 | -503.0 | -381.1 | |
| 0.00 | 3.26 | 0.00 | 2.39 | -21.57 | 31.74 | 46.77 | 246.97 | 0.7387 | -217.0 | -252.0 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -22.89 | 32.33 | 47.36 | 245.36 | 0.7479 | -444.0 | -397.7 | |
| 0.00 | 4.20 | 0.00 | 3.09 | -22.03 | 31.84 | 46.88 | 246.38 | 0.7408 | -851.0 | -666.1 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -23.00 | 32.18 | 47.22 | 245.18 | 0.7467 | -613.0 | -554.3 | |
| 0.00 | 2.49 | 0.00 | 1.80 | -21.75 | 31.07 | 46.11 | 246.56 | 0.7319 | 609.0 | 429.8 | |
| 0.00 | 1.29 | 0.00 | 0.95 | -23.50 | 31.85 | 46.88 | 244.44 | 0.7444 | -524.0 | -415.5 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -19.27 | 29.99 | 45.02 | 249.69 | 0.7144 | 560.0 | 438.8 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -23.49 | 31.56 | 46.59 | 244.37 | 0.7413 | -589.0 | -550.0 | |
| 4.72 | 48.61 | 3.42 | 35.01 | -22.35 | 31.00 | 46.04 | 245.74 | 0.7325 | -515.1 | -288.9 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -21.54 | 30.25 | 45.29 | 246.64 | 0.7224 | -97.0 | -159.3 | |
| 14.57 | -48.00 | 10.47 | -48.00 | -22.23 | 30.49 | 45.53 | 245.76 | 0.7267 | -887.6 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.32 | -20.70 | 29.17 | 44.20 | 247.52 | 0.7082 | -574.0 | -487.9 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -20.37 | 29.05 | 44.08 | 247.94 | 0.7061 | -474.0 | -396.5 | |
| 0.00 | 1.89 | 0.00 | 1.34 | -22.72 | 29.88 | 44.91 | 244.93 | 0.7213 | -662.0 | -623.4 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -20.68 | 28.99 | 44.02 | 247.49 | 0.7061 | -677.0 | -622.9 | |
| 1.37 | 3.60 | 0.97 | 2.54 | -21.98 | 29.39 | 44.43 | 245.80 | 0.7140 | -386.6 | -327.6 | |
| 21.18 | 50.41 | 14.84 | 35.31 | -21.50 | 29.16 | 44.19 | 246.40 | 0.7102 | -854.6 | -374.8 | |
| 0.00 | 2.57 | 0.00 | 1.79 | -20.49 | 28.74 | 43.77 | 247.70 | 0.7028 | -753.0 | -702.8 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -24.81 | 30.16 | 45.19 | 242.22 | 0.7303 | -514.0 | -436.4 | |
| 1.54 | 38.24 | 1.08 | 26.69 | -22.26 | 29.01 | 44.05 | 245.31 | 0.7105 | -740.8 | -497.9 | |
| 1.54 | -59.00 | 1.08 | -59.00 | -22.03 | 28.83 | 43.86 | 245.58 | 0.7078 | -823.3 | 999999 | |
| 1.80 | -59.00 | 1.25 | -59.00 | -21.95 | 28.67 | 43.70 | 245.64 | 0.7058 | -941.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
