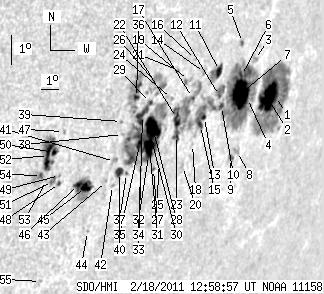

SDO HMI 2011-02-18 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.70 | 777.67 | 166.93 | 751.68 | -19.39 | 35.79 | 59.58 | 251.44 | 0.8588 | 116.6 | 70.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-18 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.69 | 156.68 | 4.06 | 171.58 | -18.36 | 40.30 | 64.09 | 252.90 | 0.8950 | -318.0 | -35.9 | |
| 26.51 | -1.00 | 28.73 | -1.00 | -18.45 | 39.78 | 63.58 | 252.79 | 0.8912 | 707.4 | 999999 | |
| 0.00 | 3.26 | 0.00 | 3.37 | -17.43 | 38.25 | 62.04 | 253.89 | 0.8791 | 699.0 | 545.5 | |
| 1.46 | 262.74 | 1.52 | 261.64 | -18.61 | 38.51 | 62.30 | 252.56 | 0.8815 | -177.3 | 342.6 | |
| 0.77 | 1.89 | 0.77 | 1.89 | -17.02 | 37.22 | 61.01 | 254.34 | 0.8707 | -165.6 | 213.8 | |
| 1.29 | -4.00 | 1.31 | -4.00 | -17.98 | 37.71 | 61.51 | 253.25 | 0.8750 | 955.5 | 999999 | |
| 29.78 | -4.00 | 30.48 | -4.00 | -18.51 | 37.97 | 61.76 | 252.65 | 0.8772 | 942.6 | 999999 | |
| 0.00 | 3.60 | 0.00 | 3.80 | -20.22 | 38.91 | 62.71 | 250.76 | 0.8852 | -124.0 | 33.4 | |
| 0.00 | 3.78 | 0.00 | 3.95 | -20.47 | 38.61 | 62.40 | 250.46 | 0.8830 | 138.0 | -50.0 | |
| 2.66 | -4.00 | 2.65 | -4.00 | -19.01 | 37.04 | 60.83 | 252.04 | 0.8699 | 643.3 | 999999 | |
| 5.75 | 15.19 | 5.60 | 14.74 | -17.98 | 36.29 | 60.08 | 253.19 | 0.8633 | 615.7 | 636.9 | |
| 1.03 | -4.00 | 1.02 | -4.00 | -18.70 | 36.72 | 60.51 | 252.37 | 0.8671 | 787.2 | 999999 | |
| 1.46 | -4.00 | 1.42 | -4.00 | -19.44 | 36.21 | 60.00 | 251.49 | 0.8633 | 754.4 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.88 | -18.12 | 35.44 | 59.23 | 252.98 | 0.8561 | 604.0 | 549.5 | |
| 2.32 | -4.00 | 2.25 | -4.00 | -19.70 | 36.12 | 59.91 | 251.19 | 0.8626 | 575.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.64 | -17.80 | 34.72 | 58.51 | 253.32 | 0.8497 | 560.0 | 531.0 | |
| 1.03 | -4.00 | 0.97 | -4.00 | -18.93 | 35.16 | 58.95 | 252.02 | 0.8541 | 555.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.67 | -20.30 | 35.99 | 59.78 | 250.48 | 0.8619 | 367.0 | 267.8 | |
| 0.00 | 4.03 | 0.00 | 3.76 | -18.45 | 34.65 | 58.44 | 252.54 | 0.8494 | 379.0 | 203.6 | |
| 0.00 | 2.40 | 0.00 | 2.32 | -21.01 | 35.82 | 59.61 | 249.65 | 0.8610 | 556.0 | 400.4 | |
| 0.00 | 1.37 | 0.00 | 1.26 | -18.22 | 33.93 | 57.72 | 252.78 | 0.8429 | -290.0 | -168.8 | |
| 10.81 | -4.00 | 10.09 | -4.00 | -19.60 | 34.58 | 58.37 | 251.18 | 0.8495 | -442.0 | 999999 | |
| 5.92 | -4.00 | 5.57 | -4.00 | -20.13 | 34.89 | 58.68 | 250.59 | 0.8526 | 469.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.18 | -19.07 | 33.98 | 57.77 | 251.76 | 0.8439 | -333.0 | -218.1 | |
| 0.00 | 1.12 | 0.00 | 1.04 | -21.09 | 34.38 | 58.17 | 249.42 | 0.8489 | -570.0 | -436.2 | |
| 0.00 | 23.08 | 0.00 | 20.63 | -18.74 | 32.98 | 56.77 | 252.08 | 0.8347 | -211.0 | -184.2 | |
| 1.20 | 1.20 | 1.11 | 1.11 | -21.26 | 34.19 | 57.98 | 249.19 | 0.8474 | -466.1 | 0.0 | |
| 17.08 | 193.15 | 15.46 | 172.86 | -20.00 | 33.38 | 57.17 | 250.61 | 0.8393 | -670.1 | -31.4 | |
| 1.72 | -28.00 | 1.53 | -28.00 | -19.31 | 32.88 | 56.67 | 251.39 | 0.8342 | -507.8 | 999999 | |
| 3.52 | -28.00 | 3.19 | -28.00 | -20.28 | 33.42 | 57.21 | 250.28 | 0.8398 | 545.8 | 999999 | |
| 9.78 | -28.00 | 8.91 | -28.00 | -20.61 | 33.55 | 57.34 | 249.90 | 0.8413 | 739.3 | 999999 | |
| 1.97 | -28.00 | 1.80 | -28.00 | -20.88 | 33.65 | 57.45 | 249.59 | 0.8424 | -389.4 | 999999 | |
| 10.64 | -28.00 | 9.45 | -28.00 | -19.73 | 32.65 | 56.44 | 250.86 | 0.8325 | -740.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.09 | -21.36 | 33.48 | 57.27 | 249.00 | 0.8413 | -658.0 | -553.7 | |
| 3.00 | -28.00 | 2.69 | -28.00 | -20.60 | 32.96 | 56.76 | 249.85 | 0.8361 | 509.9 | 999999 | |
| 2.23 | -28.00 | 1.95 | -28.00 | -19.23 | 32.04 | 55.84 | 251.40 | 0.8265 | -849.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.23 | -21.53 | 32.75 | 56.55 | 248.72 | 0.8351 | -331.0 | -289.2 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -20.40 | 31.87 | 55.67 | 249.98 | 0.8260 | 583.0 | 560.9 | |
| 0.00 | 1.12 | 0.00 | 0.97 | -20.02 | 31.61 | 55.41 | 250.40 | 0.8232 | -458.0 | -295.0 | |
| 5.92 | 6.86 | 5.25 | 6.08 | -21.54 | 32.35 | 56.15 | 248.66 | 0.8315 | -636.2 | -533.5 | |
| 0.00 | 4.12 | 0.00 | 3.61 | -21.24 | 31.89 | 55.68 | 248.96 | 0.8270 | -513.0 | -216.5 | |
| 0.00 | 1.20 | 0.00 | 1.06 | -21.96 | 32.20 | 55.99 | 248.14 | 0.8306 | -620.0 | -552.6 | |
| 0.00 | 0.86 | 0.00 | 0.75 | -21.87 | 31.81 | 55.60 | 248.19 | 0.8269 | -667.0 | -538.0 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -23.46 | 31.69 | 55.48 | 246.27 | 0.8279 | -405.0 | -351.7 | |
| 5.06 | 26.51 | 4.34 | 22.67 | -22.16 | 30.79 | 54.59 | 247.70 | 0.8180 | -681.9 | -360.6 | |
| 2.49 | -45.00 | 2.11 | -45.00 | -22.10 | 30.37 | 54.17 | 247.71 | 0.8141 | -814.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.91 | -20.60 | 28.77 | 52.57 | 249.33 | 0.7967 | -443.0 | -456.5 | |
| 1.37 | 1.80 | 1.14 | 1.50 | -22.17 | 29.38 | 53.17 | 247.48 | 0.8047 | -450.8 | -410.6 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -21.93 | 29.25 | 53.04 | 247.75 | 0.8032 | -235.0 | -290.1 | |
| 2.23 | 32.69 | 1.82 | 26.48 | -21.27 | 28.64 | 52.43 | 248.47 | 0.7963 | -456.0 | -615.5 | |
| 0.00 | 4.20 | 0.00 | 3.46 | -22.14 | 28.99 | 52.78 | 247.44 | 0.8010 | -701.0 | -533.3 | |
| 10.21 | -50.00 | 8.28 | -50.00 | -21.38 | 28.38 | 52.18 | 248.29 | 0.7940 | -919.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -22.14 | 28.67 | 52.46 | 247.39 | 0.7979 | -587.0 | -498.9 | |
| 1.80 | 11.07 | 1.46 | 8.95 | -22.01 | 28.34 | 52.13 | 247.49 | 0.7945 | -771.7 | -514.1 | |
| 0.00 | 1.12 | 0.00 | 0.95 | -25.19 | 30.15 | 53.94 | 243.91 | 0.8167 | -572.0 | -393.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
