SDO HMI 2011-02-18 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.35 | 663.64 | 139.57 | 707.46 | -19.37 | 35.80 | 62.90 | 251.67 | 0.8852 | 120.5 | 85.7 | |
|
previous
or next observation for the same group /

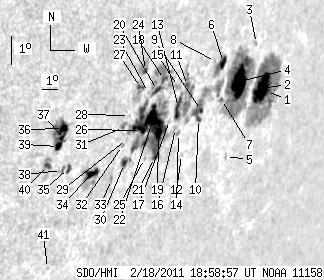

back to the solar disc SDO HMI 2011-02-18 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.34 | 137.91 | 4.12 | 169.16 | -18.51 | 40.21 | 67.31 | 252.80 | 0.9176 | -285.8 | -57.4 | |
| 22.73 | -1.00 | 27.52 | -1.00 | -18.48 | 39.70 | 66.80 | 252.83 | 0.9142 | 643.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.29 | -17.22 | 38.46 | 65.56 | 254.20 | 0.9055 | 506.0 | 425.9 | |
| 25.22 | 132.94 | 28.75 | 151.60 | -18.44 | 38.04 | 65.14 | 252.85 | 0.9027 | 851.8 | 291.3 | |
| 0.00 | 1.80 | 0.00 | 2.11 | -20.70 | 38.75 | 65.85 | 250.36 | 0.9081 | -191.0 | -192.4 | |
| 4.97 | 12.69 | 5.40 | 13.73 | -18.01 | 36.58 | 63.68 | 253.30 | 0.8919 | 616.8 | 678.9 | |
| 0.51 | -4.00 | 0.57 | -4.00 | -19.09 | 37.18 | 64.28 | 252.10 | 0.8966 | 606.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.01 | -18.04 | 36.03 | 63.13 | 253.25 | 0.8877 | 677.0 | 611.5 | |
| 1.46 | 39.62 | 1.56 | 42.59 | -19.55 | 36.08 | 63.18 | 251.54 | 0.8885 | 763.6 | 592.6 | |
| 1.20 | -9.00 | 1.29 | -9.00 | -19.83 | 36.07 | 63.17 | 251.23 | 0.8885 | 560.9 | 999999 | |
| 2.74 | 50.34 | 2.81 | 51.80 | -18.92 | 34.69 | 61.79 | 252.20 | 0.8776 | 368.5 | 239.2 | |
| 0.00 | 1.29 | 0.00 | 1.37 | -20.96 | 35.71 | 62.81 | 249.93 | 0.8862 | 237.0 | 330.3 | |
| 7.80 | -11.00 | 7.97 | -11.00 | -19.62 | 34.55 | 61.65 | 251.39 | 0.8767 | -363.3 | 999999 | |
| 0.00 | 1.97 | 0.00 | 2.05 | -20.37 | 35.07 | 62.17 | 250.56 | 0.8811 | 515.0 | 419.6 | |
| 0.00 | 3.00 | 0.00 | 3.03 | -19.01 | 34.15 | 61.25 | 252.07 | 0.8733 | 330.0 | 326.0 | |
| 0.00 | 3.52 | 0.00 | 3.62 | -20.25 | 34.78 | 61.88 | 250.69 | 0.8787 | 400.0 | 372.1 | |
| 0.00 | 0.69 | 0.00 | 0.70 | -20.05 | 34.24 | 61.34 | 250.88 | 0.8744 | -273.0 | -237.0 | |
| 2.92 | 31.65 | 2.86 | 30.91 | -18.89 | 33.17 | 60.27 | 252.15 | 0.8652 | -217.8 | -118.5 | |
| 4.12 | 133.37 | 4.13 | 131.43 | -20.47 | 33.80 | 60.90 | 250.37 | 0.8711 | 701.3 | 82.0 | |
| 4.12 | -18.00 | 4.01 | -18.00 | -19.25 | 32.95 | 60.05 | 251.72 | 0.8635 | -409.9 | 999999 | |
| 1.03 | -19.00 | 1.04 | -19.00 | -21.23 | 34.06 | 61.16 | 249.52 | 0.8736 | -743.5 | 999999 | |
| 12.35 | -19.00 | 12.15 | -19.00 | -20.10 | 33.23 | 60.33 | 250.76 | 0.8663 | -618.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -19.37 | 32.45 | 59.55 | 251.55 | 0.8594 | -547.0 | -548.6 | |
| 1.97 | 10.38 | 1.87 | 9.80 | -18.74 | 31.90 | 59.00 | 252.25 | 0.8544 | -659.1 | -520.9 | |
| 0.00 | 1.37 | 0.00 | 1.36 | -21.32 | 33.47 | 60.57 | 249.37 | 0.8689 | -293.0 | -346.1 | |
| 2.49 | -19.00 | 2.42 | -19.00 | -20.52 | 32.73 | 59.83 | 250.24 | 0.8625 | 856.4 | 999999 | |
| 2.57 | 12.09 | 2.44 | 11.46 | -19.27 | 31.90 | 59.00 | 251.63 | 0.8547 | -802.9 | -588.2 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -20.15 | 31.75 | 58.85 | 250.59 | 0.8540 | -223.0 | -204.6 | |
| 0.00 | 1.54 | 0.00 | 1.47 | -20.87 | 32.02 | 59.12 | 249.77 | 0.8567 | 509.0 | 492.6 | |
| 3.69 | 6.52 | 3.55 | 6.29 | -21.59 | 32.37 | 59.47 | 248.96 | 0.8602 | -582.7 | -450.8 | |
| 1.11 | 3.26 | 1.05 | 3.07 | -20.54 | 31.62 | 58.72 | 250.12 | 0.8531 | 555.5 | 432.2 | |
| 0.00 | 1.46 | 0.00 | 1.39 | -21.07 | 31.90 | 59.00 | 249.52 | 0.8559 | -211.0 | -158.4 | |
| 0.00 | 2.49 | 0.00 | 2.37 | -22.14 | 31.92 | 59.02 | 248.28 | 0.8569 | -547.0 | -411.1 | |
| 8.92 | 22.81 | 8.24 | 21.06 | -22.08 | 30.65 | 57.75 | 248.22 | 0.8461 | -616.0 | -247.7 | |
| 3.26 | 3.77 | 2.91 | 3.37 | -22.05 | 29.27 | 56.37 | 248.08 | 0.8341 | -443.4 | -328.7 | |
| 6.00 | 29.93 | 5.22 | 25.99 | -20.90 | 28.31 | 55.41 | 249.35 | 0.8241 | -776.5 | -606.5 | |
| 2.23 | -36.00 | 1.94 | -36.00 | -21.17 | 28.41 | 55.51 | 249.04 | 0.8253 | -660.3 | 999999 | |
| 0.00 | 3.77 | 0.00 | 3.34 | -22.15 | 28.93 | 56.03 | 247.92 | 0.8311 | -383.0 | -472.9 | |
| 3.60 | -36.00 | 3.14 | -36.00 | -21.46 | 28.35 | 55.45 | 248.68 | 0.8250 | -651.6 | 999999 | |
| 3.00 | 8.83 | 2.61 | 7.66 | -22.07 | 28.14 | 55.24 | 247.91 | 0.8239 | -727.5 | -477.2 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -25.14 | 30.10 | 57.20 | 244.54 | 0.8449 | -593.0 | -473.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
