SDO HMI 2011-02-24 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.01 | 25.90 | 40.56 | 95.62 | 16.02 | 178.56 | -79.73 | 72.68 | 0.9913 | 361.5 | 205.2 | |
|
previous
or next observation for the same group /

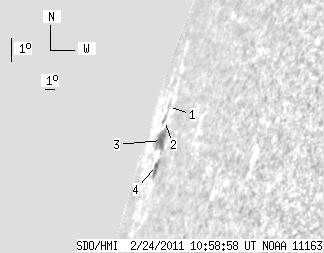

back to the solar disc SDO HMI 2011-02-24 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 5.97 | 17.24 | 177.81 | -80.48 | 71.58 | 0.9933 | -245.0 | -178.7 | |
| 0.00 | 2.58 | 0.00 | 10.61 | 16.79 | 177.88 | -80.40 | 72.01 | 0.9930 | -69.0 | 4.3 | |
| 9.72 | 14.63 | 36.15 | 54.60 | 16.08 | 178.57 | -79.72 | 72.61 | 0.9914 | 403.1 | 429.8 | |
| 1.29 | 7.23 | 4.41 | 24.44 | 15.24 | 179.00 | -79.28 | 73.38 | 0.9900 | 256.1 | 219.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
