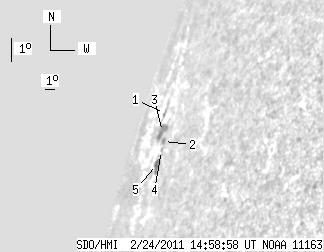

SDO HMI 2011-02-24 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 20.72 | 5.64 | 59.99 | 16.03 | 178.54 | -77.55 | 72.29 | 0.9859 | 292.4 | 288.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-24 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 9.55 | 16.94 | 177.76 | -78.32 | 71.52 | 0.9885 | -154.0 | -101.0 | |
| 0.00 | 2.15 | 0.00 | 5.91 | 15.89 | 179.06 | -77.03 | 72.34 | 0.9844 | 387.0 | 358.5 | |
| 0.00 | 8.60 | 0.00 | 25.58 | 16.29 | 178.39 | -77.70 | 72.06 | 0.9865 | 428.0 | 415.5 | |
| 0.00 | 1.20 | 0.00 | 3.28 | 15.60 | 179.14 | -76.95 | 72.61 | 0.9840 | 440.0 | 402.9 | |
| 2.06 | 5.76 | 5.64 | 15.67 | 15.18 | 178.95 | -77.14 | 73.06 | 0.9844 | 304.6 | 256.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
