SDO HMI 2011-02-25 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.80 | 23.25 | 11.85 | 39.94 | 15.99 | 178.68 | -70.26 | 70.88 | 0.9589 | 181.5 | 261.2 | |
|
previous
or next observation for the same group /

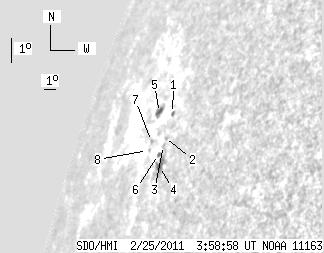

back to the solar disc SDO HMI 2011-02-25 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 2.77 | 16.87 | 179.15 | -69.79 | 69.88 | 0.9577 | 33.0 | 61.2 | |
| 0.00 | 0.77 | 0.00 | 1.31 | 16.12 | 179.03 | -69.90 | 70.66 | 0.9574 | 241.0 | 297.9 | |
| 0.00 | 0.95 | 0.00 | 1.59 | 15.85 | 179.16 | -69.78 | 70.91 | 0.9566 | 535.0 | 468.5 | |
| 3.01 | 10.16 | 4.96 | 16.67 | 15.17 | 179.31 | -69.62 | 71.57 | 0.9550 | 558.7 | 415.1 | |
| 3.27 | 6.11 | 6.02 | 11.25 | 17.07 | 177.75 | -71.19 | 69.99 | 0.9643 | -277.5 | -125.8 | |
| 0.52 | 1.64 | 0.87 | 2.76 | 15.60 | 178.90 | -70.04 | 71.22 | 0.9575 | 337.2 | 270.1 | |
| 0.00 | 1.46 | 0.00 | 2.65 | 16.14 | 177.79 | -71.15 | 70.91 | 0.9631 | 389.0 | 327.6 | |
| 0.00 | 0.52 | 0.00 | 0.94 | 15.88 | 177.63 | -71.31 | 71.22 | 0.9636 | 467.0 | 482.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
