SDO HMI 2011-02-25 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.08 | 42.33 | 9.77 | 51.82 | 16.43 | 178.21 | -62.50 | 68.46 | 0.9160 | 93.2 | 172.1 | |
|
previous
or next observation for the same group /

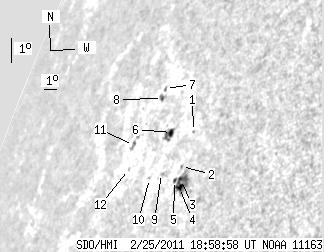

back to the solar disc SDO HMI 2011-02-25 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.22 | 17.16 | 179.47 | -61.24 | 67.32 | 0.9096 | -237.0 | -176.1 | |
| 0.00 | 1.12 | 0.00 | 1.31 | 16.07 | 179.29 | -61.42 | 68.53 | 0.9086 | 424.0 | 414.5 | |
| 0.77 | 21.94 | 0.90 | 25.39 | 15.64 | 179.45 | -61.26 | 68.94 | 0.9066 | 658.7 | 467.5 | |
| 2.84 | -3.00 | 3.29 | -3.00 | 15.37 | 179.52 | -61.19 | 69.20 | 0.9056 | 670.9 | 999999 | |
| 1.03 | -3.00 | 1.22 | -3.00 | 15.65 | 179.05 | -61.66 | 69.04 | 0.9093 | 198.7 | 999999 | |
| 2.84 | 7.74 | 3.55 | 9.73 | 17.31 | 177.91 | -62.80 | 67.63 | 0.9200 | -467.3 | -311.7 | |
| 0.00 | 1.55 | 0.00 | 2.09 | 18.89 | 176.43 | -64.28 | 66.40 | 0.9318 | -11.0 | -56.8 | |
| 0.60 | 2.41 | 0.81 | 3.25 | 18.57 | 176.44 | -64.27 | 66.73 | 0.9311 | -404.6 | -204.9 | |
| 0.00 | 0.77 | 0.00 | 0.95 | 15.99 | 178.00 | -62.71 | 68.98 | 0.9169 | 492.0 | 468.0 | |
| 0.00 | 0.95 | 0.00 | 1.20 | 15.92 | 177.21 | -63.50 | 69.27 | 0.9218 | 368.0 | 328.2 | |
| 0.00 | 3.96 | 0.00 | 5.50 | 17.20 | 175.24 | -65.47 | 68.47 | 0.9358 | -265.0 | -87.8 | |
| 0.00 | 0.86 | 0.00 | 1.18 | 16.42 | 175.39 | -65.32 | 69.24 | 0.9337 | -264.0 | -210.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
