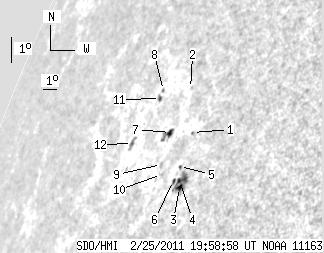

SDO HMI 2011-02-25 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.31 | 41.12 | 12.30 | 49.57 | 16.54 | 178.18 | -61.98 | 68.19 | 0.9128 | 62.4 | 169.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-25 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 1.00 | 17.16 | 179.49 | -60.67 | 67.15 | 0.9057 | -238.0 | -172.7 | |
| 0.00 | 0.26 | 0.00 | 0.32 | 18.69 | 178.45 | -61.71 | 65.86 | 0.9158 | -515.0 | -410.7 | |
| 2.41 | 17.12 | 2.73 | 19.41 | 15.40 | 179.59 | -60.57 | 68.99 | 0.9013 | 739.7 | 512.1 | |
| 1.72 | -3.00 | 1.96 | -3.00 | 15.63 | 179.47 | -60.69 | 68.78 | 0.9026 | 625.8 | 999999 | |
| 0.60 | 1.29 | 0.70 | 1.49 | 16.10 | 179.23 | -60.93 | 68.35 | 0.9053 | 485.0 | 351.4 | |
| 1.20 | 1.81 | 1.39 | 2.09 | 15.68 | 179.07 | -61.09 | 68.85 | 0.9055 | 181.4 | 138.3 | |
| 2.75 | 7.92 | 3.37 | 9.76 | 17.33 | 177.95 | -62.21 | 67.43 | 0.9163 | -481.5 | -265.2 | |
| 0.00 | 1.46 | 0.00 | 1.93 | 18.85 | 176.48 | -63.68 | 66.27 | 0.9282 | -107.0 | -62.8 | |
| 0.00 | 1.72 | 0.00 | 2.09 | 16.31 | 177.94 | -62.22 | 68.50 | 0.9144 | 166.0 | 216.6 | |
| 0.00 | 1.46 | 0.00 | 1.76 | 15.98 | 178.12 | -62.03 | 68.81 | 0.9125 | 598.0 | 486.1 | |
| 1.63 | 2.06 | 2.15 | 2.72 | 18.60 | 176.44 | -63.72 | 66.54 | 0.9280 | -318.9 | 2.0 | |
| 0.00 | 5.16 | 0.00 | 7.00 | 17.29 | 175.30 | -64.86 | 68.22 | 0.9324 | -291.0 | -110.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
