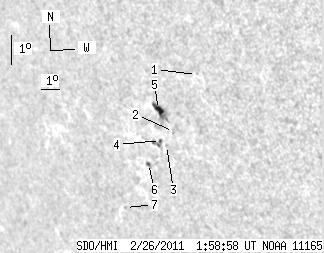

SDO HMI 2011-02-26 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.27 | 28.67 | 7.31 | 25.39 | -22.39 | 180.82 | -56.04 | 112.22 | 0.8305 | 171.6 | -122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-26 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.71 | -21.08 | 183.68 | -53.18 | 111.01 | 0.8025 | 447.0 | 375.4 | |
| 0.00 | 1.64 | 0.00 | 1.42 | -22.65 | 181.53 | -55.33 | 112.64 | 0.8246 | 443.0 | 342.7 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -23.03 | 180.89 | -55.97 | 113.01 | 0.8308 | -470.0 | -403.8 | |
| 0.86 | 4.91 | 0.77 | 4.39 | -22.85 | 180.66 | -56.20 | 112.76 | 0.8326 | -508.4 | -550.7 | |
| 6.29 | 16.70 | 5.51 | 14.66 | -21.92 | 181.11 | -55.75 | 111.70 | 0.8275 | 494.5 | 30.4 | |
| 1.12 | 2.67 | 1.03 | 2.44 | -23.47 | 179.54 | -57.32 | 113.34 | 0.8431 | -485.1 | -421.3 | |
| 0.00 | 1.03 | 0.00 | 1.01 | -24.63 | 177.25 | -59.61 | 114.42 | 0.8633 | -313.0 | -340.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
