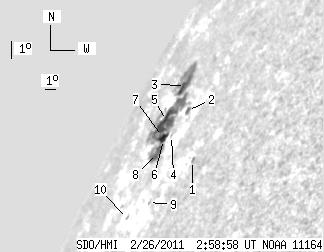

SDO HMI 2011-02-26 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.07 | 119.44 | 103.13 | 293.22 | 26.57 | 163.58 | -72.74 | 60.82 | 0.9791 | -281.1 | -247.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-26 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 2.66 | 24.70 | 168.52 | -67.79 | 61.46 | 0.9588 | -274.0 | -206.2 | |
| 2.07 | 2.76 | 4.39 | 5.84 | 26.79 | 165.33 | -70.98 | 60.19 | 0.9737 | -471.3 | -338.0 | |
| 8.87 | 112.38 | 22.28 | 278.88 | 27.91 | 163.31 | -73.00 | 59.56 | 0.9811 | -427.3 | -262.5 | |
| 0.00 | 0.60 | 0.00 | 1.31 | 26.00 | 164.83 | -71.48 | 61.09 | 0.9746 | 180.0 | 147.9 | |
| 17.83 | -3.00 | 43.93 | -3.00 | 26.72 | 163.14 | -73.18 | 60.77 | 0.9806 | -629.3 | 999999 | |
| 2.93 | -3.00 | 6.70 | -3.00 | 25.96 | 164.02 | -72.29 | 61.32 | 0.9772 | 288.6 | 999999 | |
| 1.81 | -3.00 | 4.23 | -3.00 | 26.11 | 163.69 | -72.63 | 61.25 | 0.9784 | -199.8 | 999999 | |
| 9.56 | -3.00 | 21.60 | -3.00 | 25.48 | 164.11 | -72.21 | 61.78 | 0.9765 | 348.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.69 | 23.63 | 165.72 | -70.60 | 63.24 | 0.9689 | 321.0 | 334.2 | |
| 0.00 | 1.29 | 0.00 | 2.84 | 23.32 | 163.96 | -72.35 | 63.97 | 0.9750 | 280.0 | 204.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
