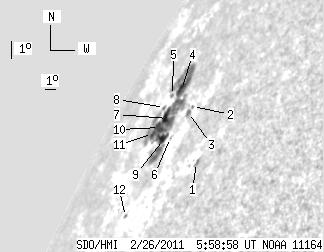

SDO HMI 2011-02-26 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.46 | 132.92 | 54.23 | 292.93 | 26.73 | 163.28 | -71.39 | 60.35 | 0.9749 | -388.8 | -210.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-26 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 4.35 | 24.63 | 168.61 | -66.07 | 61.05 | 0.9509 | -449.0 | -298.7 | |
| 0.00 | 0.69 | 0.00 | 1.32 | 26.92 | 165.55 | -69.12 | 59.60 | 0.9671 | -130.0 | -136.5 | |
| 0.00 | 2.50 | 0.00 | 4.79 | 26.72 | 165.43 | -69.24 | 59.82 | 0.9673 | -533.0 | -441.4 | |
| 5.08 | 121.46 | 11.47 | 270.53 | 27.80 | 163.15 | -71.53 | 59.32 | 0.9765 | -453.1 | -221.3 | |
| 0.00 | 1.46 | 0.00 | 3.49 | 27.69 | 162.34 | -72.34 | 59.62 | 0.9790 | -7.0 | 41.8 | |
| 0.00 | 1.72 | 0.00 | 3.39 | 25.95 | 164.74 | -69.94 | 60.76 | 0.9690 | 333.0 | 218.4 | |
| 7.84 | -4.00 | 17.33 | -4.00 | 26.79 | 163.23 | -71.44 | 60.30 | 0.9752 | -498.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 2.28 | 27.31 | 162.07 | -72.61 | 60.06 | 0.9794 | 42.0 | 33.1 | |
| 4.13 | -4.00 | 8.54 | -4.00 | 25.97 | 164.01 | -70.66 | 60.92 | 0.9717 | 319.7 | 999999 | |
| 5.51 | -4.00 | 12.48 | -4.00 | 26.54 | 162.76 | -71.91 | 60.66 | 0.9766 | -838.9 | 999999 | |
| 1.90 | -4.00 | 4.41 | -4.00 | 26.40 | 162.20 | -72.47 | 60.92 | 0.9782 | -374.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 2.78 | 23.43 | 163.59 | -71.09 | 63.56 | 0.9705 | 164.0 | 97.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
