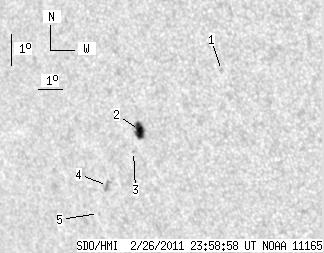

SDO HMI 2011-02-26 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.42 | 20.76 | 7.15 | 14.34 | -21.95 | 181.57 | -43.22 | 114.25 | 0.6987 | 499.8 | -120.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-26 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.89 | -20.04 | 185.88 | -38.90 | 112.83 | 0.6425 | 655.0 | 479.4 | |
| 10.42 | 12.92 | 7.15 | 8.86 | -21.58 | 181.92 | -42.87 | 113.84 | 0.6940 | 807.9 | 527.6 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -22.19 | 181.42 | -43.36 | 114.56 | 0.7013 | 460.0 | 424.9 | |
| 0.00 | 5.17 | 0.00 | 3.68 | -23.13 | 179.87 | -44.91 | 115.39 | 0.7210 | -758.0 | -634.8 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -23.94 | 179.10 | -45.69 | 116.26 | 0.7316 | -561.0 | -534.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
