SDO HMI 2011-02-27 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.77 | 226.19 | 54.68 | 296.19 | 26.28 | 163.23 | -60.46 | 57.62 | 0.9251 | -35.2 | -205.2 | |
|
previous
or next observation for the same group /

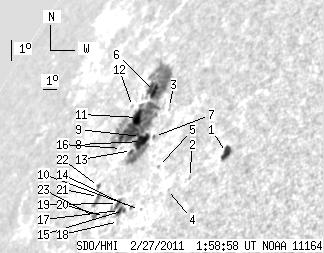

back to the solar disc SDO HMI 2011-02-27 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.58 | 8.53 | 7.94 | 8.93 | 25.00 | 169.48 | -54.21 | 56.55 | 0.8831 | -490.3 | -276.7 | |
| 0.00 | 1.03 | 0.00 | 1.12 | 24.33 | 167.80 | -55.89 | 57.92 | 0.8922 | -488.0 | -360.1 | |
| 0.00 | 1.90 | 0.00 | 2.38 | 27.12 | 164.43 | -59.26 | 56.35 | 0.9207 | -526.0 | -469.4 | |
| 0.00 | 0.60 | 0.00 | 0.67 | 24.05 | 166.69 | -57.00 | 58.65 | 0.8987 | -283.0 | -186.1 | |
| 0.00 | 1.03 | 0.00 | 1.22 | 24.97 | 165.47 | -58.22 | 58.16 | 0.9089 | 394.0 | 328.5 | |
| 4.57 | 180.03 | 6.16 | 240.21 | 27.88 | 162.72 | -60.97 | 56.19 | 0.9318 | -729.9 | -264.1 | |
| 0.43 | 1.46 | 0.54 | 1.82 | 26.13 | 164.29 | -59.40 | 57.40 | 0.9190 | 315.4 | 310.8 | |
| 11.03 | -6.00 | 14.06 | -6.00 | 26.05 | 163.49 | -60.20 | 57.76 | 0.9233 | 529.3 | 999999 | |
| 0.26 | -6.00 | 0.33 | -6.00 | 26.25 | 163.25 | -60.44 | 57.64 | 0.9252 | -142.7 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.40 | 23.52 | 165.35 | -58.34 | 59.69 | 0.9058 | 585.0 | 548.5 | |
| 7.84 | -6.00 | 10.57 | -6.00 | 27.01 | 162.35 | -61.34 | 57.18 | 0.9318 | -603.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.57 | 27.49 | 161.53 | -62.16 | 56.97 | 0.9371 | -48.0 | -19.8 | |
| 0.95 | -6.00 | 1.22 | -6.00 | 25.79 | 163.04 | -60.65 | 58.18 | 0.9252 | 253.0 | 999999 | |
| 1.12 | 1.55 | 1.33 | 1.84 | 23.67 | 164.68 | -59.01 | 59.78 | 0.9104 | 375.2 | 347.8 | |
| 0.43 | 13.09 | 0.52 | 16.00 | 23.61 | 164.27 | -59.42 | 59.98 | 0.9128 | 505.8 | 321.0 | |
| 0.00 | 1.21 | 0.00 | 1.61 | 25.96 | 162.21 | -61.48 | 58.29 | 0.9302 | 211.0 | 162.8 | |
| 2.84 | -15.00 | 3.45 | -15.00 | 23.64 | 163.99 | -59.70 | 60.05 | 0.9146 | 462.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.17 | 23.25 | 164.22 | -59.47 | 60.38 | 0.9122 | 512.0 | 430.0 | |
| 3.27 | -15.00 | 4.03 | -15.00 | 23.92 | 163.65 | -60.04 | 59.88 | 0.9173 | 263.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.94 | 23.54 | 163.08 | -60.61 | 60.46 | 0.9198 | 257.0 | 152.2 | |
| 1.21 | 6.20 | 1.58 | 8.13 | 24.34 | 162.02 | -61.66 | 59.99 | 0.9277 | 467.7 | 388.5 | |
| 1.38 | 1.81 | 1.84 | 2.42 | 24.72 | 161.70 | -61.99 | 59.72 | 0.9303 | 288.2 | 302.0 | |
| 0.86 | 2.93 | 1.11 | 3.76 | 23.63 | 162.34 | -61.35 | 60.62 | 0.9243 | -489.0 | -260.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
