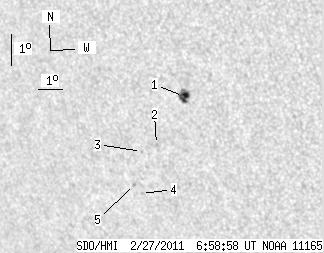

SDO HMI 2011-02-27 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.50 | 14.47 | 4.86 | 9.49 | -22.20 | 181.34 | -39.62 | 115.80 | 0.6580 | 175.6 | -91.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-27 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.50 | 10.08 | 4.86 | 6.53 | -21.55 | 182.10 | -38.86 | 115.14 | 0.6469 | 854.8 | 710.2 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -22.93 | 180.50 | -40.45 | 116.56 | 0.6704 | -733.0 | -605.3 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -23.09 | 179.80 | -41.16 | 116.54 | 0.6791 | -526.0 | -334.3 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -24.37 | 179.30 | -41.65 | 118.17 | 0.6891 | -718.0 | -613.2 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -24.07 | 179.12 | -41.84 | 117.68 | 0.6901 | -621.0 | -564.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
