SDO HMI 2011-02-27 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.57 | 19.40 | 6.15 | 12.45 | -21.68 | 182.32 | -38.10 | 115.59 | 0.6376 | 394.4 | 132.3 | |
|
previous
or next observation for the same group /

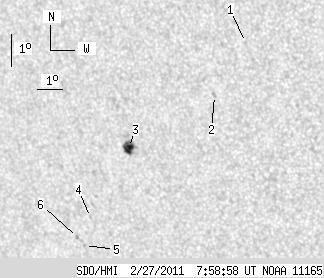

back to the solar disc SDO HMI 2011-02-27 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.72 | -18.68 | 187.45 | -32.96 | 112.96 | 0.5619 | 623.0 | 467.9 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -20.20 | 185.92 | -34.50 | 114.82 | 0.5878 | 677.0 | 510.7 | |
| 9.57 | 13.10 | 6.15 | 8.42 | -21.54 | 182.14 | -38.28 | 115.33 | 0.6398 | 820.3 | 486.0 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -23.54 | 179.86 | -40.55 | 117.42 | 0.6737 | -563.0 | -487.1 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -24.38 | 179.28 | -41.13 | 118.38 | 0.6833 | -732.0 | -634.3 | |
| 0.00 | 1.47 | 0.00 | 0.99 | -24.11 | 179.08 | -41.33 | 117.93 | 0.6846 | -652.0 | -551.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
