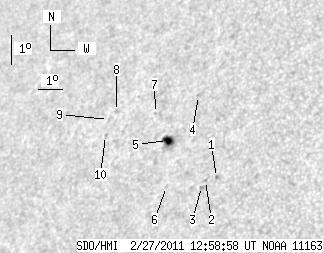

SDO HMI 2011-02-27 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.51 | 23.96 | 3.94 | 17.18 | 17.40 | 177.90 | -39.78 | 57.53 | 0.7257 | -250.0 | -248.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-27 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.77 | 15.97 | 180.34 | -37.33 | 57.70 | 0.6921 | 690.0 | 595.8 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 15.91 | 179.93 | -37.75 | 58.07 | 0.6961 | 451.0 | 324.5 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 15.72 | 179.81 | -37.86 | 58.37 | 0.6962 | 630.0 | 550.2 | |
| 0.00 | 1.55 | 0.00 | 1.11 | 18.74 | 178.95 | -38.73 | 55.24 | 0.7235 | -434.0 | -370.2 | |
| 5.51 | 13.36 | 3.94 | 9.54 | 17.35 | 178.07 | -39.61 | 57.49 | 0.7239 | -814.9 | -511.6 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 15.84 | 178.40 | -39.28 | 59.14 | 0.7118 | 388.0 | 301.5 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 18.29 | 177.32 | -40.35 | 56.83 | 0.7368 | -542.0 | -473.4 | |
| 0.00 | 1.98 | 0.00 | 1.49 | 18.50 | 175.63 | -42.04 | 57.61 | 0.7544 | -431.0 | -331.3 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 18.26 | 175.36 | -42.31 | 58.05 | 0.7557 | -326.0 | -279.5 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 17.74 | 175.39 | -42.28 | 58.65 | 0.7527 | -450.0 | -339.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
