SDO HMI 2011-02-27 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.72 | 27.06 | 4.62 | 18.60 | 17.38 | 177.98 | -36.94 | 55.67 | 0.6968 | -231.1 | -195.8 | |
|
previous
or next observation for the same group /

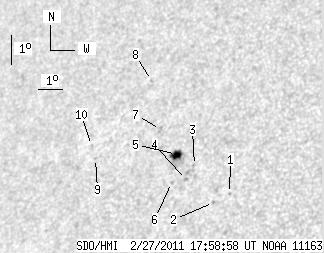

back to the solar disc SDO HMI 2011-02-27 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.62 | 15.96 | 180.46 | -34.46 | 55.64 | 0.6613 | 709.0 | 556.5 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 15.71 | 179.91 | -35.01 | 56.37 | 0.6656 | 639.0 | 531.5 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 16.98 | 178.92 | -36.00 | 55.49 | 0.6846 | -315.0 | -296.7 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 16.54 | 178.71 | -36.21 | 56.19 | 0.6839 | 576.0 | 476.4 | |
| 6.72 | 17.66 | 4.62 | 12.10 | 17.40 | 178.13 | -36.79 | 55.54 | 0.6955 | -766.9 | -366.6 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 16.49 | 178.14 | -36.78 | 56.66 | 0.6895 | 703.0 | 489.5 | |
| 0.00 | 2.07 | 0.00 | 1.45 | 18.28 | 177.28 | -37.64 | 55.05 | 0.7098 | -490.0 | -420.7 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 19.95 | 176.46 | -38.46 | 53.62 | 0.7284 | -510.0 | -399.0 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 17.53 | 174.87 | -40.05 | 57.55 | 0.7295 | -393.0 | -352.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 17.98 | 174.58 | -40.34 | 57.19 | 0.7349 | -523.0 | -423.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
