SDO HMI 2011-02-27 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.39 | 302.12 | 71.64 | 288.22 | 26.50 | 162.64 | -49.53 | 52.87 | 0.8558 | -17.8 | -135.5 | |
|
previous
or next observation for the same group /

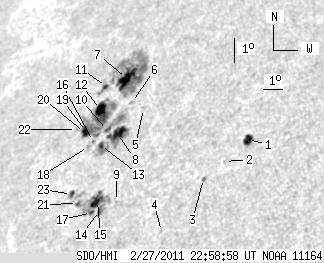

back to the solar disc SDO HMI 2011-02-27 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.89 | 9.99 | 5.62 | 8.13 | 25.28 | 169.64 | -42.53 | 50.31 | 0.7965 | -662.9 | -427.8 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 24.58 | 168.91 | -43.26 | 51.50 | 0.7986 | -429.0 | -405.2 | |
| 0.34 | 1.21 | 0.28 | 0.99 | 24.07 | 168.18 | -43.98 | 52.48 | 0.8017 | -595.5 | -489.5 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 22.38 | 166.99 | -45.18 | 54.99 | 0.8030 | 380.0 | 382.4 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 26.91 | 163.90 | -48.26 | 51.81 | 0.8487 | -511.0 | -493.6 | |
| 0.00 | 1.38 | 0.00 | 1.31 | 27.20 | 163.12 | -49.04 | 51.90 | 0.8556 | -537.0 | -477.5 | |
| 15.42 | 97.17 | 15.13 | 95.48 | 28.13 | 162.29 | -49.88 | 51.36 | 0.8654 | -733.2 | -206.2 | |
| 13.44 | 109.66 | 12.62 | 105.69 | 26.12 | 163.04 | -49.13 | 53.06 | 0.8515 | 658.7 | -308.4 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 23.66 | 164.29 | -47.87 | 55.03 | 0.8312 | 745.0 | 628.6 | |
| 2.50 | -8.00 | 2.38 | -8.00 | 26.29 | 162.43 | -49.73 | 53.19 | 0.8566 | 210.1 | 999999 | |
| 1.29 | 6.72 | 1.29 | 6.75 | 27.95 | 161.35 | -50.82 | 52.00 | 0.8709 | -116.6 | 86.3 | |
| 8.01 | -8.00 | 7.88 | -8.00 | 27.11 | 161.56 | -50.60 | 52.75 | 0.8661 | -726.0 | 999999 | |
| 2.33 | 14.90 | 2.21 | 14.07 | 25.77 | 162.37 | -49.79 | 53.75 | 0.8549 | 583.1 | 451.8 | |
| 3.70 | 43.85 | 3.32 | 39.76 | 23.42 | 163.58 | -48.59 | 55.64 | 0.8358 | 630.9 | 220.0 | |
| 11.28 | -14.00 | 10.23 | -14.00 | 23.79 | 163.29 | -48.87 | 55.39 | 0.8396 | 557.9 | 999999 | |
| 0.86 | 1.21 | 0.83 | 1.16 | 25.96 | 161.90 | -50.26 | 53.78 | 0.8591 | 346.6 | 264.2 | |
| 1.81 | -14.00 | 1.64 | -14.00 | 23.39 | 163.20 | -48.97 | 55.86 | 0.8386 | 481.7 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.74 | 25.80 | 161.73 | -50.43 | 54.02 | 0.8596 | 395.0 | 287.4 | |
| 2.15 | -8.00 | 2.11 | -8.00 | 26.37 | 161.28 | -50.88 | 53.65 | 0.8651 | -433.0 | 999999 | |
| 2.84 | -8.00 | 2.79 | -8.00 | 26.35 | 161.19 | -50.97 | 53.72 | 0.8656 | 268.3 | 999999 | |
| 0.86 | -14.00 | 0.80 | -14.00 | 23.79 | 162.29 | -49.87 | 55.88 | 0.8473 | -349.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.29 | 26.51 | 160.67 | -51.49 | 53.79 | 0.8699 | -271.0 | -238.9 | |
| 2.67 | 9.30 | 2.51 | 8.70 | 24.15 | 161.79 | -50.37 | 55.73 | 0.8525 | 686.7 | 325.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
