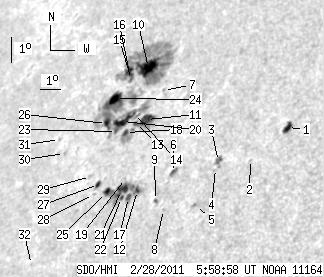

SDO HMI 2011-02-28 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.09 | 371.70 | 74.54 | 329.20 | 26.51 | 162.31 | -46.02 | 51.03 | 0.8301 | -25.5 | -99.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-28 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.60 | 6.98 | 4.29 | 5.35 | 25.30 | 169.67 | -38.66 | 47.77 | 0.7651 | -687.5 | -506.6 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 24.30 | 168.49 | -39.85 | 49.65 | 0.7685 | -564.0 | -461.9 | |
| 0.00 | 6.12 | 0.00 | 4.83 | 24.35 | 167.09 | -41.25 | 50.50 | 0.7806 | -676.0 | -467.6 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 24.11 | 167.05 | -41.28 | 50.78 | 0.7795 | -307.0 | -349.2 | |
| 0.00 | 2.07 | 0.00 | 1.62 | 22.89 | 166.66 | -41.67 | 52.37 | 0.7757 | 512.0 | 457.1 | |
| 0.00 | 4.31 | 0.00 | 3.51 | 24.15 | 165.19 | -43.15 | 51.90 | 0.7953 | 340.0 | 485.1 | |
| 0.00 | 1.03 | 0.00 | 0.90 | 27.18 | 163.30 | -45.03 | 49.79 | 0.8263 | -591.0 | -579.8 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 22.88 | 165.26 | -43.07 | 53.23 | 0.7877 | 503.0 | 329.1 | |
| 1.12 | 2.07 | 0.91 | 1.68 | 23.23 | 164.76 | -43.57 | 53.14 | 0.7939 | 650.6 | 564.0 | |
| 16.04 | 137.96 | 14.56 | 125.63 | 28.11 | 162.08 | -46.26 | 49.51 | 0.8400 | -847.8 | -199.6 | |
| 10.17 | 136.15 | 8.83 | 121.83 | 26.19 | 163.00 | -45.33 | 50.99 | 0.8235 | 733.6 | -228.4 | |
| 2.16 | 48.11 | 1.79 | 40.41 | 23.66 | 163.76 | -44.57 | 53.24 | 0.8045 | 853.8 | 363.9 | |
| 1.03 | -11.00 | 0.91 | -11.00 | 26.09 | 162.53 | -45.80 | 51.35 | 0.8266 | 670.9 | 999999 | |
| 0.78 | -11.00 | 0.69 | -11.00 | 26.47 | 162.29 | -46.04 | 51.09 | 0.8303 | 124.1 | 999999 | |
| 1.29 | -10.00 | 1.18 | -10.00 | 27.75 | 161.45 | -46.89 | 50.22 | 0.8427 | -614.4 | 999999 | |
| 6.04 | -10.00 | 5.57 | -10.00 | 28.02 | 161.19 | -47.14 | 50.08 | 0.8459 | -477.9 | 999999 | |
| 2.59 | -12.00 | 2.15 | -12.00 | 23.45 | 163.44 | -44.89 | 53.65 | 0.8061 | 734.2 | 999999 | |
| 2.24 | 13.71 | 1.97 | 11.98 | 25.81 | 162.19 | -46.14 | 51.83 | 0.8278 | 727.7 | 535.3 | |
| 0.00 | 0.78 | 0.00 | 0.66 | 24.15 | 163.00 | -45.34 | 53.16 | 0.8132 | -103.0 | -38.0 | |
| 9.74 | -11.00 | 8.66 | -11.00 | 26.23 | 161.83 | -46.50 | 51.59 | 0.8326 | 416.6 | 999999 | |
| 8.19 | -12.00 | 6.90 | -12.00 | 23.74 | 163.00 | -45.34 | 53.60 | 0.8112 | 539.4 | 999999 | |
| 1.29 | -12.00 | 1.08 | -12.00 | 23.49 | 163.11 | -45.23 | 53.80 | 0.8090 | 638.3 | 999999 | |
| 1.03 | -11.00 | 0.92 | -11.00 | 25.89 | 161.72 | -46.61 | 52.00 | 0.8318 | 407.7 | 999999 | |
| 8.28 | -11.00 | 7.57 | -11.00 | 27.12 | 161.01 | -47.32 | 51.10 | 0.8429 | -759.3 | 999999 | |
| 2.59 | -12.00 | 2.21 | -12.00 | 23.73 | 162.30 | -46.04 | 53.98 | 0.8169 | -450.8 | 999999 | |
| 2.50 | -11.00 | 2.26 | -11.00 | 26.24 | 161.05 | -47.28 | 52.00 | 0.8385 | 347.3 | 999999 | |
| 2.41 | 4.14 | 2.09 | 3.59 | 24.06 | 161.77 | -46.57 | 53.92 | 0.8227 | 390.5 | 339.5 | |
| 0.00 | 1.03 | 0.00 | 0.89 | 23.73 | 161.69 | -46.65 | 54.32 | 0.8217 | 253.0 | 219.4 | |
| 0.00 | 1.90 | 0.00 | 1.67 | 24.39 | 161.23 | -47.11 | 53.85 | 0.8285 | 512.0 | 392.3 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 25.36 | 159.44 | -48.89 | 53.74 | 0.8465 | 284.0 | 252.1 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 25.90 | 158.89 | -49.44 | 53.45 | 0.8529 | 307.0 | 221.6 | |
| 0.00 | 0.86 | 0.00 | 0.76 | 21.56 | 159.71 | -48.62 | 57.67 | 0.8281 | 418.0 | 331.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
