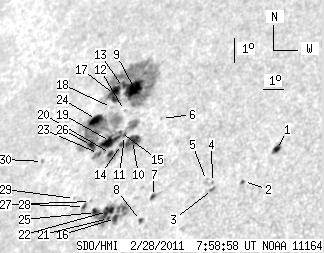

SDO HMI 2011-02-28 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.63 | 386.75 | 79.68 | 336.91 | 26.66 | 162.08 | -45.16 | 50.40 | 0.8243 | -45.0 | -115.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-28 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 5.86 | 2.99 | 4.42 | 25.29 | 169.67 | -37.57 | 47.02 | 0.7558 | -691.0 | -524.8 | |
| 0.86 | 1.81 | 0.65 | 1.37 | 24.26 | 168.67 | -38.57 | 48.83 | 0.7574 | -608.6 | -572.5 | |
| 0.00 | 1.90 | 0.00 | 1.46 | 24.09 | 167.43 | -39.81 | 49.86 | 0.7669 | -517.0 | -462.1 | |
| 0.00 | 1.03 | 0.00 | 0.80 | 24.34 | 167.33 | -39.91 | 49.65 | 0.7693 | -605.0 | -501.5 | |
| 0.00 | 1.81 | 0.00 | 1.41 | 24.44 | 167.04 | -40.20 | 49.74 | 0.7724 | -452.0 | -372.6 | |
| 0.00 | 1.03 | 0.00 | 0.87 | 26.87 | 163.99 | -43.25 | 49.07 | 0.8111 | 199.0 | 174.2 | |
| 1.64 | 3.88 | 1.31 | 3.11 | 24.08 | 164.83 | -42.41 | 51.52 | 0.7888 | 553.5 | 453.0 | |
| 1.64 | 1.81 | 1.31 | 1.44 | 23.28 | 164.62 | -42.62 | 52.52 | 0.7860 | 694.2 | 749.0 | |
| 15.61 | 150.99 | 13.86 | 134.77 | 28.12 | 162.09 | -45.15 | 48.89 | 0.8320 | -869.5 | -196.0 | |
| 10.43 | 21.13 | 8.87 | 17.96 | 26.19 | 162.98 | -44.26 | 50.37 | 0.8152 | 724.2 | 610.7 | |
| 1.29 | 140.99 | 1.11 | 124.08 | 26.41 | 162.50 | -44.74 | 50.42 | 0.8201 | 317.7 | -233.7 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 27.34 | 162.03 | -45.21 | 49.73 | 0.8285 | -675.0 | -611.8 | |
| 0.95 | -9.00 | 0.85 | -9.00 | 28.21 | 161.51 | -45.73 | 49.12 | 0.8367 | -431.6 | 999999 | |
| 1.64 | -10.00 | 1.40 | -10.00 | 26.10 | 162.52 | -44.72 | 50.74 | 0.8183 | 625.7 | 999999 | |
| 0.95 | -11.00 | 0.82 | -11.00 | 26.54 | 162.25 | -44.99 | 50.43 | 0.8227 | 204.5 | 999999 | |
| 3.36 | 45.96 | 2.74 | 37.81 | 23.46 | 163.44 | -43.80 | 53.03 | 0.7970 | 737.6 | 465.9 | |
| 10.87 | -9.00 | 9.81 | -9.00 | 27.99 | 161.20 | -46.04 | 49.52 | 0.8378 | -504.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.31 | 27.52 | 161.31 | -45.93 | 49.95 | 0.8346 | -460.0 | -391.4 | |
| 10.61 | -11.00 | 9.22 | -11.00 | 26.26 | 161.92 | -45.32 | 50.91 | 0.8238 | 512.3 | 999999 | |
| 2.67 | -11.00 | 2.30 | -11.00 | 25.82 | 162.14 | -45.10 | 51.25 | 0.8198 | 715.8 | 999999 | |
| 1.21 | -16.00 | 0.99 | -16.00 | 23.49 | 163.11 | -44.13 | 53.19 | 0.7999 | 609.8 | 999999 | |
| 6.73 | -16.00 | 5.55 | -16.00 | 23.74 | 162.95 | -44.29 | 53.00 | 0.8025 | 556.4 | 999999 | |
| 1.81 | -11.00 | 1.58 | -11.00 | 25.88 | 161.54 | -45.70 | 51.52 | 0.8247 | 427.3 | 999999 | |
| 7.42 | -11.00 | 6.67 | -11.00 | 27.14 | 160.79 | -46.45 | 50.62 | 0.8367 | -679.0 | 999999 | |
| 4.40 | -16.00 | 3.67 | -16.00 | 23.76 | 162.40 | -44.84 | 53.30 | 0.8072 | -501.8 | 999999 | |
| 2.93 | -11.00 | 2.59 | -11.00 | 26.20 | 161.04 | -46.20 | 51.45 | 0.8302 | 351.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.66 | 24.18 | 161.98 | -45.26 | 53.08 | 0.8127 | 246.0 | 217.9 | |
| 1.64 | 3.71 | 1.39 | 3.14 | 24.03 | 161.77 | -45.47 | 53.36 | 0.8137 | 447.9 | 459.2 | |
| 0.00 | 0.95 | 0.00 | 0.82 | 24.36 | 161.15 | -46.09 | 53.34 | 0.8204 | 431.0 | 491.5 | |
| 0.00 | 0.95 | 0.00 | 0.87 | 25.87 | 158.82 | -48.42 | 52.97 | 0.8452 | 295.0 | 223.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
