SDO HMI 2011-02-28 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.66 | 435.55 | 88.22 | 365.57 | 26.70 | 162.09 | -42.96 | 49.08 | 0.8077 | 7.2 | -93.0 | |
|
previous
or next observation for the same group /

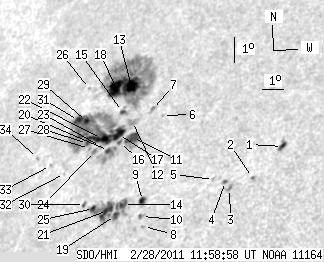

back to the solar disc SDO HMI 2011-02-28 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.10 | 5.00 | 2.27 | 3.66 | 25.32 | 169.69 | -35.37 | 45.36 | 0.7377 | -680.5 | -568.8 | |
| 1.03 | 1.38 | 0.76 | 1.01 | 24.32 | 168.81 | -36.24 | 47.10 | 0.7378 | -553.8 | -448.4 | |
| 0.00 | 2.85 | 0.00 | 2.10 | 24.01 | 167.98 | -37.07 | 48.05 | 0.7427 | -705.0 | -553.8 | |
| 1.38 | 1.55 | 1.02 | 1.15 | 24.27 | 167.73 | -37.33 | 47.95 | 0.7467 | -511.8 | -471.5 | |
| 0.00 | 1.38 | 0.00 | 1.03 | 24.38 | 167.19 | -37.86 | 48.21 | 0.7521 | -495.0 | -420.0 | |
| 0.00 | 1.12 | 0.00 | 0.91 | 26.89 | 164.01 | -41.04 | 47.70 | 0.7941 | 420.0 | 344.1 | |
| 0.00 | 3.19 | 0.00 | 2.62 | 27.15 | 163.45 | -41.61 | 47.78 | 0.8000 | 296.0 | 88.9 | |
| 0.00 | 1.47 | 0.00 | 1.12 | 22.98 | 164.76 | -40.29 | 51.40 | 0.7641 | 809.0 | 655.6 | |
| 3.53 | 4.74 | 2.75 | 3.69 | 23.90 | 164.37 | -40.68 | 50.64 | 0.7730 | 710.9 | 499.6 | |
| 0.00 | 2.93 | 0.00 | 2.26 | 23.34 | 164.54 | -40.51 | 51.15 | 0.7682 | 720.0 | 619.5 | |
| 10.26 | 16.64 | 8.39 | 13.59 | 26.21 | 162.98 | -42.07 | 49.06 | 0.7982 | 754.5 | 610.5 | |
| 0.00 | 7.07 | 0.00 | 5.85 | 26.79 | 162.71 | -42.34 | 48.61 | 0.8036 | -231.0 | -269.4 | |
| 17.85 | 178.29 | 15.22 | 152.92 | 28.10 | 162.04 | -43.02 | 47.68 | 0.8162 | -917.9 | -175.9 | |
| 4.91 | 47.76 | 3.87 | 37.87 | 23.83 | 163.58 | -41.47 | 51.22 | 0.7794 | 644.6 | 323.5 | |
| 1.90 | -13.00 | 1.60 | -13.00 | 27.21 | 162.06 | -42.99 | 48.58 | 0.8110 | -778.0 | 999999 | |
| 1.47 | 129.84 | 1.21 | 110.52 | 26.08 | 162.45 | -42.60 | 49.52 | 0.8016 | 678.4 | -247.9 | |
| 8.19 | -16.00 | 6.80 | -16.00 | 26.38 | 162.27 | -42.78 | 49.32 | 0.8047 | 528.1 | 999999 | |
| 17.42 | -13.00 | 15.05 | -13.00 | 28.13 | 161.32 | -43.73 | 48.07 | 0.8216 | -654.9 | 999999 | |
| 3.45 | -14.00 | 2.71 | -14.00 | 23.47 | 163.37 | -41.68 | 51.74 | 0.7791 | 769.1 | 999999 | |
| 3.19 | 18.45 | 2.64 | 15.23 | 25.83 | 162.07 | -42.99 | 50.01 | 0.8033 | 766.2 | 475.7 | |
| 9.66 | -14.00 | 7.67 | -14.00 | 23.68 | 162.94 | -42.11 | 51.78 | 0.7840 | 570.2 | 999999 | |
| 8.79 | -16.00 | 7.39 | -16.00 | 26.30 | 161.53 | -43.52 | 49.83 | 0.8101 | 548.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.08 | 26.01 | 161.62 | -43.43 | 50.08 | 0.8078 | 561.0 | 508.7 | |
| 1.64 | 3.19 | 1.37 | 2.67 | 25.86 | 161.42 | -43.63 | 50.37 | 0.8085 | 573.6 | 533.9 | |
| 2.16 | -14.00 | 1.73 | -14.00 | 23.81 | 162.27 | -42.78 | 52.05 | 0.7903 | -423.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 28.22 | 160.00 | -45.05 | 48.74 | 0.8318 | -147.0 | -197.3 | |
| 0.00 | 1.03 | 0.00 | 0.87 | 25.99 | 161.13 | -43.93 | 50.40 | 0.8115 | 462.0 | 379.4 | |
| 0.43 | -16.00 | 0.37 | -16.00 | 26.18 | 160.94 | -44.11 | 50.31 | 0.8140 | 493.6 | 999999 | |
| 2.07 | -16.00 | 1.79 | -16.00 | 27.00 | 160.49 | -44.56 | 49.71 | 0.8217 | -758.5 | 999999 | |
| 1.21 | 2.24 | 0.98 | 1.82 | 23.99 | 161.79 | -43.26 | 52.14 | 0.7953 | 377.4 | 407.8 | |
| 3.02 | -16.00 | 2.63 | -16.00 | 27.07 | 160.08 | -44.97 | 49.87 | 0.8253 | -812.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.58 | 25.19 | 160.34 | -44.71 | 51.69 | 0.8135 | 437.0 | 375.1 | |
| 0.00 | 1.03 | 0.00 | 0.89 | 25.55 | 159.52 | -45.53 | 51.78 | 0.8218 | 503.0 | 450.9 | |
| 0.00 | 1.47 | 0.00 | 1.29 | 25.87 | 158.74 | -46.31 | 51.87 | 0.8293 | 335.0 | 209.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
