SDO HMI 2011-02-28 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.78 | 471.26 | 85.26 | 391.20 | 26.60 | 161.99 | -42.51 | 48.91 | 0.8036 | 31.6 | -73.1 | |
|
previous
or next observation for the same group /

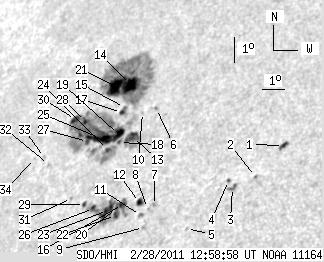

back to the solar disc SDO HMI 2011-02-28 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.28 | 4.22 | 2.38 | 3.07 | 25.35 | 169.65 | -34.85 | 44.93 | 0.7335 | -674.6 | -565.7 | |
| 0.00 | 1.55 | 0.00 | 1.12 | 24.33 | 168.86 | -35.64 | 46.63 | 0.7327 | -611.0 | -516.9 | |
| 0.00 | 4.48 | 0.00 | 3.28 | 24.02 | 168.04 | -36.46 | 47.59 | 0.7376 | -689.0 | -557.9 | |
| 1.12 | 1.38 | 0.82 | 1.01 | 24.28 | 167.79 | -36.71 | 47.49 | 0.7416 | -513.5 | -502.3 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 22.74 | 166.59 | -37.91 | 50.06 | 0.7415 | 650.0 | 480.3 | |
| 0.00 | 1.12 | 0.00 | 0.91 | 27.15 | 163.61 | -40.89 | 47.33 | 0.7945 | 507.0 | 406.8 | |
| 0.00 | 1.12 | 0.00 | 0.85 | 23.66 | 164.94 | -39.56 | 50.17 | 0.7620 | 627.0 | 648.7 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 23.58 | 164.67 | -39.83 | 50.44 | 0.7638 | 634.0 | 615.4 | |
| 0.00 | 1.81 | 0.00 | 1.37 | 22.93 | 164.74 | -39.76 | 51.11 | 0.7592 | 733.0 | 599.0 | |
| 0.00 | 1.21 | 0.00 | 0.99 | 27.06 | 163.03 | -41.47 | 47.79 | 0.7985 | -379.0 | -343.5 | |
| 0.00 | 2.50 | 0.00 | 1.91 | 23.36 | 164.46 | -40.05 | 50.82 | 0.7643 | 751.0 | 640.4 | |
| 3.53 | 4.48 | 2.73 | 3.46 | 23.82 | 164.24 | -40.26 | 50.45 | 0.7690 | 624.3 | 534.5 | |
| 10.34 | 19.57 | 8.38 | 15.83 | 26.19 | 162.98 | -41.53 | 48.74 | 0.7937 | 712.3 | 546.7 | |
| 14.91 | 180.94 | 12.62 | 153.86 | 28.16 | 161.97 | -42.53 | 47.32 | 0.8129 | -913.6 | -198.2 | |
| 0.26 | -14.00 | 0.22 | -14.00 | 27.32 | 162.10 | -42.40 | 48.10 | 0.8072 | -662.7 | 999999 | |
| 3.45 | 63.36 | 2.69 | 49.86 | 23.82 | 163.51 | -40.99 | 50.93 | 0.7752 | 700.3 | 288.2 | |
| 1.98 | -14.00 | 1.65 | -14.00 | 27.15 | 162.04 | -42.46 | 48.31 | 0.8066 | -666.7 | 999999 | |
| 1.12 | 177.75 | 0.91 | 148.92 | 26.06 | 162.45 | -42.05 | 49.20 | 0.7971 | 714.2 | -108.1 | |
| 7.67 | -18.00 | 6.31 | -18.00 | 26.36 | 162.28 | -42.23 | 49.00 | 0.8002 | 563.1 | 999999 | |
| 1.12 | -16.00 | 0.88 | -16.00 | 23.70 | 163.30 | -41.20 | 51.19 | 0.7763 | 798.2 | 999999 | |
| 17.41 | -14.00 | 14.91 | -14.00 | 28.15 | 161.28 | -43.22 | 47.75 | 0.8180 | -648.5 | 999999 | |
| 2.59 | -16.00 | 2.02 | -16.00 | 23.46 | 163.35 | -41.15 | 51.43 | 0.7744 | 783.9 | 999999 | |
| 9.83 | -16.00 | 7.74 | -16.00 | 23.67 | 162.92 | -41.58 | 51.47 | 0.7793 | 589.0 | 999999 | |
| 1.64 | -18.00 | 1.34 | -18.00 | 25.85 | 162.01 | -42.50 | 49.69 | 0.7995 | 788.7 | 999999 | |
| 13.79 | -18.00 | 11.48 | -18.00 | 26.29 | 161.49 | -43.01 | 49.55 | 0.8060 | 534.5 | 999999 | |
| 2.07 | -16.00 | 1.65 | -16.00 | 23.79 | 162.26 | -42.24 | 51.74 | 0.7857 | -438.8 | 999999 | |
| 0.26 | -18.00 | 0.22 | -18.00 | 26.23 | 160.92 | -43.58 | 49.94 | 0.8101 | 451.3 | 999999 | |
| 1.55 | -18.00 | 1.33 | -18.00 | 26.98 | 160.47 | -44.03 | 49.43 | 0.8176 | -761.9 | 999999 | |
| 1.64 | -16.00 | 1.32 | -16.00 | 23.97 | 161.79 | -42.71 | 51.83 | 0.7906 | 413.5 | 999999 | |
| 4.22 | -18.00 | 3.66 | -18.00 | 27.10 | 159.94 | -44.56 | 49.61 | 0.8223 | -680.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.92 | 24.24 | 161.09 | -43.41 | 51.96 | 0.7979 | 341.0 | 387.2 | |
| 0.00 | 0.95 | 0.00 | 0.81 | 25.57 | 159.43 | -45.07 | 51.50 | 0.8182 | 443.0 | 390.4 | |
| 0.00 | 1.29 | 0.00 | 1.12 | 25.85 | 159.11 | -45.39 | 51.39 | 0.8221 | 370.0 | 285.1 | |
| 0.00 | 0.86 | 0.00 | 0.75 | 25.86 | 158.63 | -45.87 | 51.64 | 0.8259 | 260.0 | 240.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
