SDO HMI 2011-02-28 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.11 | 43.85 | 6.07 | 24.17 | -23.03 | 180.38 | -21.37 | 129.93 | 0.4390 | -194.0 | -65.9 | |
|
previous
or next observation for the same group /

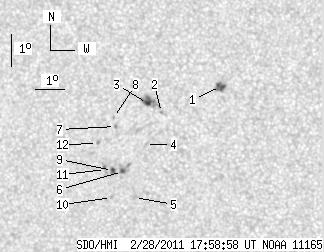

back to the solar disc SDO HMI 2011-02-28 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.08 | 6.63 | 2.73 | 3.57 | -21.62 | 183.24 | -18.50 | 130.83 | 0.3916 | 967.8 | 887.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -22.33 | 181.14 | -20.61 | 129.50 | 0.4238 | 756.0 | 573.5 | |
| 1.98 | 12.32 | 1.08 | 6.74 | -22.04 | 180.70 | -21.05 | 128.40 | 0.4266 | 849.2 | 786.5 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -23.29 | 180.43 | -21.32 | 130.48 | 0.4409 | -491.0 | -491.1 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -24.91 | 179.75 | -21.99 | 132.62 | 0.4635 | -673.0 | -627.4 | |
| 2.15 | 8.01 | 1.20 | 4.46 | -24.09 | 179.48 | -22.26 | 130.85 | 0.4591 | -968.4 | -628.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.69 | 179.49 | -22.26 | 128.27 | 0.4470 | -768.0 | -625.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.41 | 179.47 | -22.28 | 127.72 | 0.4450 | -509.0 | -359.5 | |
| 1.90 | 3.71 | 1.06 | 2.07 | -24.04 | 179.14 | -22.61 | 130.38 | 0.4627 | -952.0 | -777.4 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.88 | 178.95 | -22.80 | 131.64 | 0.4724 | -799.0 | -515.4 | |
| 0.00 | 2.67 | 0.00 | 1.49 | -24.00 | 178.90 | -22.85 | 130.04 | 0.4652 | -808.0 | -763.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -23.19 | 178.77 | -22.98 | 128.41 | 0.4599 | -826.0 | -618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
