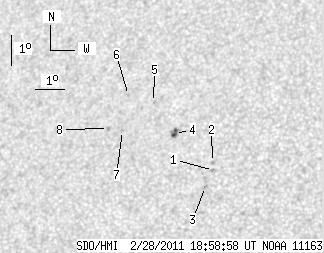

SDO HMI 2011-02-28 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.19 | 14.81 | 1.89 | 8.78 | 17.21 | 178.20 | -23.00 | 42.71 | 0.5519 | -243.2 | -144.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-28 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.05 | 16.14 | 179.79 | -21.40 | 42.10 | 0.5250 | 790.0 | 600.0 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 16.40 | 179.73 | -21.46 | 41.84 | 0.5284 | 725.0 | 563.3 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 15.63 | 179.59 | -21.61 | 43.05 | 0.5216 | 859.0 | 743.1 | |
| 3.19 | 6.03 | 1.89 | 3.58 | 17.41 | 178.33 | -22.87 | 42.32 | 0.5528 | -920.7 | -703.3 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 18.47 | 177.47 | -23.73 | 42.04 | 0.5721 | -727.0 | -599.3 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 18.75 | 176.57 | -24.63 | 42.75 | 0.5836 | -634.0 | -480.3 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 17.61 | 176.53 | -24.66 | 44.22 | 0.5725 | -735.0 | -585.7 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 17.70 | 176.04 | -25.16 | 44.66 | 0.5784 | -700.0 | -567.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
