SDO HMI 2011-02-28 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.51 | 585.98 | 98.95 | 458.30 | 26.27 | 162.14 | -39.05 | 47.01 | 0.7741 | 45.8 | -2.3 | |
|
previous
or next observation for the same group /

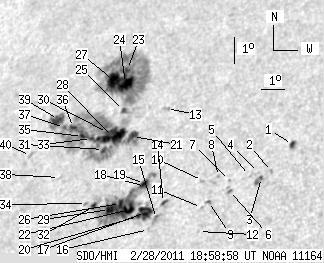

back to the solar disc SDO HMI 2011-02-28 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.93 | 3.70 | 2.05 | 2.59 | 25.40 | 169.61 | -31.58 | 42.19 | 0.7069 | -729.4 | -728.1 | |
| 0.00 | 1.38 | 0.00 | 0.96 | 24.50 | 169.06 | -32.13 | 43.61 | 0.7040 | -801.0 | -688.5 | |
| 1.12 | 5.77 | 0.78 | 4.02 | 24.31 | 168.73 | -32.47 | 44.10 | 0.7054 | -742.7 | -612.8 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 24.50 | 168.56 | -32.64 | 44.04 | 0.7083 | -522.0 | -397.7 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 24.42 | 168.23 | -32.96 | 44.40 | 0.7105 | -402.0 | -388.0 | |
| 1.38 | 3.02 | 0.97 | 2.12 | 23.95 | 167.59 | -33.60 | 45.44 | 0.7123 | -536.2 | -401.2 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 24.30 | 167.49 | -33.71 | 45.14 | 0.7160 | -236.0 | -227.6 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 24.48 | 167.00 | -34.20 | 45.34 | 0.7215 | -459.0 | -369.0 | |
| 1.12 | 2.15 | 0.79 | 1.52 | 23.62 | 166.86 | -34.33 | 46.38 | 0.7162 | -472.7 | -516.2 | |
| 0.00 | 1.46 | 0.00 | 1.05 | 24.38 | 166.39 | -34.80 | 45.92 | 0.7260 | -423.0 | -268.4 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 23.44 | 166.65 | -34.55 | 46.76 | 0.7167 | -392.0 | -339.9 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 22.61 | 166.77 | -34.42 | 47.58 | 0.7093 | 451.0 | 365.9 | |
| 0.00 | 2.50 | 0.00 | 1.92 | 27.10 | 163.96 | -37.23 | 44.88 | 0.7656 | 537.0 | 397.0 | |
| 1.98 | 4.39 | 1.44 | 3.18 | 23.73 | 165.04 | -36.16 | 47.67 | 0.7329 | 492.0 | 372.6 | |
| 0.00 | 5.08 | 0.00 | 3.67 | 23.19 | 164.93 | -36.26 | 48.34 | 0.7301 | 810.0 | 652.6 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 22.84 | 164.72 | -36.47 | 48.90 | 0.7294 | 779.0 | 673.9 | |
| 11.29 | 124.85 | 8.23 | 92.67 | 23.44 | 164.41 | -36.79 | 48.46 | 0.7364 | 918.3 | 401.5 | |
| 1.64 | -17.00 | 1.21 | -17.00 | 24.36 | 164.10 | -37.10 | 47.68 | 0.7455 | -304.4 | 999999 | |
| 3.88 | -17.00 | 2.88 | -17.00 | 24.47 | 164.02 | -37.17 | 47.62 | 0.7469 | 365.3 | 999999 | |
| 1.21 | -17.00 | 0.88 | -17.00 | 23.33 | 164.12 | -37.08 | 48.79 | 0.7382 | 888.5 | 999999 | |
| 6.81 | 420.21 | 5.24 | 335.97 | 26.20 | 162.88 | -38.31 | 46.58 | 0.7681 | 750.1 | -106.2 | |
| 6.20 | -17.00 | 4.58 | -17.00 | 23.60 | 163.70 | -37.49 | 48.79 | 0.7437 | 990.8 | 999999 | |
| 1.81 | -21.00 | 1.47 | -21.00 | 28.70 | 161.61 | -39.58 | 44.89 | 0.7943 | -435.3 | 999999 | |
| 14.04 | -21.00 | 11.28 | -21.00 | 28.18 | 161.76 | -39.44 | 45.31 | 0.7899 | -1020.0 | 999999 | |
| 2.33 | -21.00 | 1.84 | -21.00 | 27.19 | 162.10 | -39.10 | 46.10 | 0.7808 | -676.9 | 999999 | |
| 3.27 | -17.00 | 2.44 | -17.00 | 23.84 | 163.25 | -37.95 | 48.85 | 0.7493 | 804.2 | 999999 | |
| 14.30 | -21.00 | 11.63 | -21.00 | 28.34 | 161.16 | -40.04 | 45.55 | 0.7955 | -670.6 | 999999 | |
| 23.78 | -21.00 | 18.58 | -21.00 | 26.28 | 162.00 | -39.20 | 47.11 | 0.7757 | 685.0 | 999999 | |
| 4.48 | -17.00 | 3.35 | -17.00 | 23.67 | 162.85 | -38.34 | 49.32 | 0.7516 | 763.3 | 999999 | |
| 1.98 | -21.00 | 1.56 | -21.00 | 26.44 | 161.72 | -39.48 | 47.13 | 0.7790 | -227.2 | 999999 | |
| 2.50 | -21.00 | 1.95 | -21.00 | 25.84 | 161.79 | -39.40 | 47.72 | 0.7746 | 830.2 | 999999 | |
| 2.24 | -17.00 | 1.70 | -17.00 | 23.84 | 162.13 | -39.07 | 49.64 | 0.7589 | -427.3 | 999999 | |
| 1.38 | -21.00 | 1.09 | -21.00 | 26.28 | 161.09 | -40.10 | 47.71 | 0.7830 | 435.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.38 | 23.97 | 161.79 | -39.41 | 49.72 | 0.7627 | 370.0 | 312.0 | |
| 1.72 | -21.00 | 1.38 | -21.00 | 26.39 | 160.65 | -40.54 | 47.89 | 0.7872 | 322.0 | 999999 | |
| 2.58 | -21.00 | 2.10 | -21.00 | 26.76 | 160.10 | -41.10 | 47.86 | 0.7938 | -791.3 | 999999 | |
| 1.46 | -21.00 | 1.20 | -21.00 | 26.80 | 159.68 | -41.52 | 48.09 | 0.7973 | -687.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.09 | 25.00 | 160.23 | -40.97 | 49.63 | 0.7822 | 420.0 | 266.0 | |
| 10.08 | -21.00 | 8.33 | -21.00 | 27.12 | 159.27 | -41.93 | 48.02 | 0.8024 | -665.6 | 999999 | |
| 0.00 | 2.76 | 0.00 | 2.27 | 25.92 | 158.55 | -42.64 | 49.71 | 0.8011 | 327.0 | 244.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
