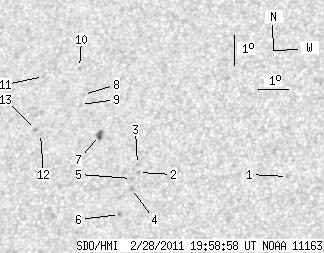

SDO HMI 2011-02-28 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.19 | 20.52 | 1.88 | 12.07 | 17.15 | 178.51 | -22.13 | 41.66 | 0.5429 | -177.4 | -79.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-28 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.81 | 184.66 | -15.99 | 34.44 | 0.4705 | -780.0 | -604.5 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 16.15 | 179.77 | -20.87 | 41.37 | 0.5198 | 772.0 | 590.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 16.41 | 179.71 | -20.93 | 41.12 | 0.5233 | 769.0 | 592.5 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 15.64 | 179.60 | -21.05 | 42.29 | 0.5161 | 943.0 | 752.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 15.96 | 179.56 | -21.08 | 41.90 | 0.5199 | 828.0 | 704.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 14.82 | 179.29 | -21.36 | 43.83 | 0.5104 | 715.0 | 564.4 | |
| 3.19 | 4.74 | 1.88 | 2.80 | 17.42 | 178.32 | -22.33 | 41.64 | 0.5477 | -907.1 | -799.9 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 18.80 | 177.59 | -23.06 | 40.84 | 0.5692 | -638.0 | -461.5 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 18.47 | 177.53 | -23.11 | 41.30 | 0.5663 | -823.0 | -583.0 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 19.71 | 177.31 | -23.33 | 40.08 | 0.5813 | -656.0 | -537.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 19.47 | 176.11 | -24.54 | 41.77 | 0.5900 | -490.0 | -406.0 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 17.59 | 176.29 | -24.35 | 43.88 | 0.5693 | -639.0 | -589.5 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 17.73 | 176.10 | -24.54 | 43.92 | 0.5726 | -758.0 | -570.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
