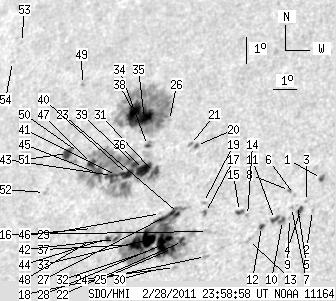

SDO HMI 2011-02-28 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.70 | 689.16 | 116.20 | 513.32 | 25.97 | 162.51 | -35.93 | 45.08 | 0.7467 | 82.8 | 76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-28 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 3.28 | 1.40 | 2.22 | 25.45 | 169.55 | -28.89 | 39.69 | 0.6855 | -786.1 | -641.1 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 24.34 | 169.50 | -28.94 | 40.90 | 0.6758 | -749.0 | -591.4 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 24.67 | 169.19 | -29.25 | 40.84 | 0.6814 | -604.0 | -540.4 | |
| 2.07 | 3.36 | 1.39 | 2.26 | 24.40 | 169.04 | -29.41 | 41.26 | 0.6803 | -835.3 | -670.5 | |
| 0.00 | 1.38 | 0.00 | 0.93 | 24.55 | 168.88 | -29.56 | 41.25 | 0.6829 | -499.0 | -562.1 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 24.95 | 168.67 | -29.78 | 41.03 | 0.6883 | -626.0 | -529.6 | |
| 0.00 | 1.47 | 0.00 | 0.99 | 24.50 | 168.67 | -29.77 | 41.50 | 0.6842 | -684.0 | -587.6 | |
| 1.38 | 1.55 | 0.94 | 1.06 | 25.11 | 168.43 | -30.01 | 41.08 | 0.6915 | -531.3 | -489.0 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 24.11 | 168.70 | -29.75 | 41.89 | 0.6806 | -371.0 | -428.2 | |
| 2.76 | 9.40 | 1.86 | 6.36 | 24.06 | 168.45 | -30.00 | 42.17 | 0.6823 | -737.0 | -473.1 | |
| 3.36 | -10.00 | 2.28 | -10.00 | 24.12 | 168.13 | -30.31 | 42.40 | 0.6855 | -573.9 | 999999 | |
| 1.98 | 2.67 | 1.35 | 1.82 | 23.91 | 167.70 | -30.75 | 43.02 | 0.6874 | -612.9 | -474.4 | |
| 0.00 | 2.33 | 0.00 | 1.58 | 23.45 | 167.32 | -31.12 | 43.85 | 0.6867 | -503.0 | -408.9 | |
| 0.00 | 1.55 | 0.00 | 1.07 | 24.33 | 167.05 | -31.40 | 43.14 | 0.6965 | -473.0 | -403.2 | |
| 3.62 | 3.79 | 2.50 | 2.62 | 24.50 | 166.69 | -31.75 | 43.27 | 0.7009 | -373.8 | -384.5 | |
| 0.00 | 3.28 | 0.00 | 2.28 | 23.88 | 165.63 | -32.81 | 44.84 | 0.7050 | 105.0 | 132.9 | |
| 1.47 | 2.33 | 1.03 | 1.64 | 24.56 | 165.36 | -33.08 | 44.34 | 0.7128 | -406.2 | -319.7 | |
| 0.00 | 2.59 | 0.00 | 1.78 | 23.01 | 165.80 | -32.64 | 45.65 | 0.6966 | -206.0 | -70.8 | |
| 0.00 | 1.55 | 0.00 | 1.10 | 24.92 | 165.17 | -33.27 | 44.10 | 0.7172 | -385.0 | -282.3 | |
| 1.64 | 2.24 | 1.20 | 1.65 | 27.00 | 164.21 | -34.23 | 42.71 | 0.7413 | 568.8 | 494.9 | |
| 0.00 | 1.81 | 0.00 | 1.34 | 27.05 | 163.95 | -34.49 | 42.86 | 0.7438 | 414.0 | 327.1 | |
| 3.71 | 212.22 | 2.60 | 151.06 | 23.60 | 164.74 | -33.70 | 45.88 | 0.7106 | 859.3 | 445.9 | |
| 0.43 | -22.00 | 0.31 | -22.00 | 24.61 | 164.28 | -34.16 | 45.16 | 0.7223 | 223.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.50 | 22.72 | 164.69 | -33.76 | 46.90 | 0.7043 | 861.0 | 711.5 | |
| 1.90 | -22.00 | 1.33 | -22.00 | 23.39 | 164.42 | -34.03 | 46.38 | 0.7118 | 1033.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 28.01 | 162.74 | -35.71 | 42.82 | 0.7604 | -338.0 | -323.4 | |
| 7.50 | -22.00 | 5.38 | -22.00 | 24.54 | 163.79 | -34.65 | 45.63 | 0.7260 | 494.4 | 999999 | |
| 17.50 | -22.00 | 12.39 | -22.00 | 23.56 | 163.97 | -34.47 | 46.54 | 0.7170 | 1052.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.87 | 24.66 | 163.55 | -34.89 | 45.68 | 0.7290 | 304.0 | 312.6 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 22.73 | 164.10 | -34.34 | 47.36 | 0.7097 | 635.0 | 514.2 | |
| 5.95 | 207.82 | 4.41 | 157.84 | 26.15 | 162.80 | -35.64 | 44.68 | 0.7462 | 837.4 | 127.8 | |
| 1.47 | -22.00 | 1.04 | -22.00 | 23.42 | 163.62 | -34.82 | 46.98 | 0.7190 | 806.8 | 999999 | |
| 13.96 | -22.00 | 10.00 | -22.00 | 23.78 | 163.35 | -35.09 | 46.79 | 0.7241 | 831.9 | 999999 | |
| 1.98 | 4.65 | 1.50 | 3.52 | 27.16 | 162.15 | -36.30 | 44.13 | 0.7588 | -596.4 | -493.1 | |
| 17.24 | 178.00 | 13.33 | 138.43 | 28.17 | 161.63 | -36.82 | 43.48 | 0.7700 | -995.9 | -258.7 | |
| 12.33 | -31.00 | 9.21 | -31.00 | 26.30 | 162.30 | -36.14 | 44.90 | 0.7514 | 823.7 | 999999 | |
| 8.88 | -22.00 | 6.38 | -22.00 | 23.64 | 162.92 | -35.53 | 47.28 | 0.7269 | 849.9 | 999999 | |
| 16.55 | -35.00 | 12.93 | -35.00 | 28.43 | 161.10 | -37.35 | 43.60 | 0.7759 | -683.3 | 999999 | |
| 2.33 | -31.00 | 1.76 | -31.00 | 26.51 | 161.85 | -36.59 | 45.01 | 0.7565 | 253.7 | 999999 | |
| 7.41 | -31.00 | 5.58 | -31.00 | 26.17 | 161.69 | -36.76 | 45.49 | 0.7554 | 654.1 | 999999 | |
| 0.78 | -31.00 | 0.59 | -31.00 | 26.17 | 161.23 | -37.21 | 45.82 | 0.7592 | 550.1 | 999999 | |
| 1.47 | 11.38 | 1.07 | 8.32 | 23.89 | 161.99 | -36.45 | 47.71 | 0.7367 | -293.2 | 102.3 | |
| 0.95 | -31.00 | 0.72 | -31.00 | 26.19 | 161.06 | -37.39 | 45.93 | 0.7607 | 516.9 | 999999 | |
| 1.64 | -42.00 | 1.20 | -42.00 | 23.95 | 161.65 | -36.80 | 47.89 | 0.7402 | 407.1 | 999999 | |
| 1.38 | -31.00 | 1.06 | -31.00 | 26.32 | 160.38 | -38.06 | 46.28 | 0.7670 | 356.1 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.48 | 24.36 | 160.89 | -37.55 | 48.00 | 0.7494 | 651.0 | 500.4 | |
| 4.40 | -31.00 | 3.42 | -31.00 | 26.70 | 159.97 | -38.47 | 46.16 | 0.7729 | -701.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 23.94 | 160.96 | -37.49 | 48.41 | 0.7461 | 668.0 | 580.4 | |
| 0.00 | 0.86 | 0.00 | 0.72 | 29.69 | 158.26 | -40.19 | 44.28 | 0.8052 | -690.0 | -633.3 | |
| 0.00 | 1.98 | 0.00 | 1.57 | 27.16 | 159.23 | -39.22 | 46.20 | 0.7817 | -106.0 | -148.4 | |
| 7.59 | 12.76 | 6.04 | 10.14 | 27.16 | 158.75 | -39.70 | 46.52 | 0.7855 | -650.2 | -607.5 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 25.83 | 158.31 | -40.13 | 48.20 | 0.7806 | 338.0 | 291.5 | |
| 0.00 | 0.69 | 0.00 | 0.63 | 31.60 | 154.38 | -44.07 | 44.79 | 0.8430 | -326.0 | -264.8 | |
| 0.00 | 1.21 | 0.00 | 1.09 | 30.90 | 154.35 | -44.09 | 45.49 | 0.8393 | -341.0 | -301.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
