SDO HMI 2011-03-01 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.31 | 0.00 | 12.22 | 17.24 | 178.52 | -17.73 | 35.39 | 0.5033 | -14.1 | 10.4 | |
|
previous
or next observation for the same group /

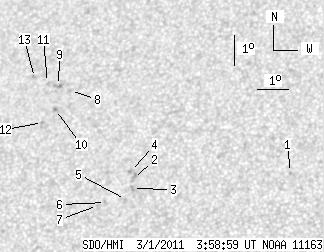

back to the solar disc SDO HMI 2011-03-01 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.43 | 16.02 | 184.86 | -11.40 | 25.83 | 0.4378 | -678.0 | -593.7 | |
| 0.00 | 3.02 | 0.00 | 1.70 | 15.99 | 179.86 | -16.39 | 34.88 | 0.4765 | 754.0 | 630.9 | |
| 0.00 | 2.33 | 0.00 | 1.31 | 15.67 | 179.85 | -16.40 | 35.29 | 0.4725 | 886.0 | 718.6 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 16.22 | 179.74 | -16.51 | 34.78 | 0.4804 | 762.0 | 610.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.32 | 179.66 | -16.60 | 36.05 | 0.4700 | 701.0 | 569.6 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 15.25 | 179.02 | -17.23 | 37.18 | 0.4750 | 830.0 | 616.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 15.16 | 178.77 | -17.48 | 37.69 | 0.4762 | 665.0 | 518.5 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 18.96 | 177.50 | -18.75 | 34.95 | 0.5328 | -757.0 | -567.4 | |
| 0.00 | 3.28 | 0.00 | 1.92 | 19.14 | 177.08 | -19.17 | 35.34 | 0.5385 | -727.0 | -604.7 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 18.35 | 177.07 | -19.18 | 36.26 | 0.5293 | -910.0 | -804.3 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 19.26 | 176.70 | -19.55 | 35.74 | 0.5431 | -343.0 | -354.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 17.94 | 176.69 | -19.56 | 37.28 | 0.5280 | -858.0 | -732.9 | |
| 0.00 | 1.90 | 0.00 | 1.12 | 19.45 | 176.24 | -20.01 | 36.15 | 0.5492 | -508.0 | -398.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
