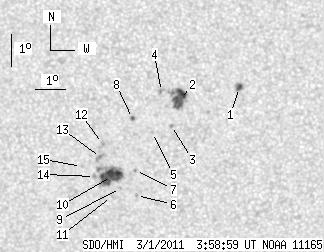

SDO HMI 2011-03-01 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.18 | 86.71 | 22.56 | 46.44 | -23.18 | 179.99 | -16.26 | 137.41 | 0.3815 | -258.4 | -242.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.85 | 4.66 | 1.49 | 2.44 | -21.58 | 183.46 | -12.80 | 140.61 | 0.3260 | 997.2 | 847.2 | |
| 16.82 | 25.62 | 8.89 | 13.54 | -21.89 | 181.45 | -14.80 | 137.32 | 0.3512 | 961.9 | 692.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -22.68 | 181.10 | -15.15 | 138.28 | 0.3641 | -755.0 | -604.1 | |
| 0.00 | 2.59 | 0.00 | 1.37 | -21.63 | 180.88 | -15.37 | 135.75 | 0.3546 | 667.0 | 659.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -22.88 | 180.44 | -15.81 | 137.52 | 0.3734 | 723.0 | 475.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -24.81 | 179.65 | -16.60 | 139.79 | 0.4035 | -893.0 | -676.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -24.03 | 179.72 | -16.53 | 138.52 | 0.3940 | -858.0 | -683.1 | |
| 0.69 | 1.90 | 0.37 | 1.01 | -22.43 | 179.82 | -16.43 | 135.60 | 0.3753 | -911.9 | -684.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -24.57 | 179.14 | -17.12 | 138.57 | 0.4062 | -802.0 | -573.3 | |
| 21.82 | 35.19 | 11.81 | 19.05 | -24.19 | 178.88 | -17.37 | 137.48 | 0.4047 | -1012.3 | -685.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -24.81 | 178.79 | -17.46 | 138.46 | 0.4124 | -661.0 | -536.2 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -23.16 | 178.72 | -17.53 | 135.30 | 0.3955 | -845.0 | -802.5 | |
| 0.00 | 4.92 | 0.00 | 2.66 | -23.59 | 178.59 | -17.66 | 135.93 | 0.4014 | -1052.0 | -771.5 | |
| 0.00 | 2.42 | 0.00 | 1.31 | -24.17 | 178.30 | -17.95 | 136.57 | 0.4107 | -627.0 | -479.0 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -23.84 | 177.91 | -18.34 | 135.39 | 0.4117 | -660.0 | -499.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
