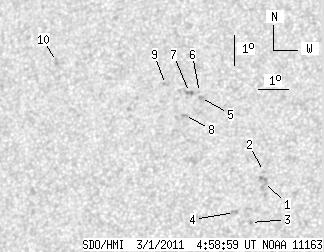

SDO HMI 2011-03-01 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.72 | 0.00 | 13.68 | 17.75 | 177.59 | -18.12 | 35.32 | 0.5126 | -67.6 | 26.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.35 | 0.00 | 3.00 | 16.10 | 179.82 | -15.89 | 33.91 | 0.4735 | 481.0 | 679.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.46 | 179.79 | -15.92 | 33.52 | 0.4783 | 541.0 | 385.2 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 14.83 | 179.50 | -16.20 | 36.05 | 0.4603 | 722.0 | 488.4 | |
| 0.00 | 2.59 | 0.00 | 1.45 | 15.17 | 178.96 | -16.75 | 36.50 | 0.4694 | 799.0 | 628.5 | |
| 0.00 | 2.24 | 0.00 | 1.31 | 18.97 | 177.48 | -18.22 | 34.18 | 0.5285 | -775.0 | -657.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 19.14 | 177.43 | -18.28 | 34.07 | 0.5310 | -414.0 | -375.2 | |
| 0.00 | 3.88 | 0.00 | 2.27 | 19.15 | 177.10 | -18.61 | 34.53 | 0.5339 | -669.0 | -583.8 | |
| 0.00 | 1.98 | 0.00 | 1.15 | 18.40 | 177.02 | -18.69 | 35.51 | 0.5256 | -873.0 | -714.8 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 19.46 | 176.26 | -19.45 | 35.37 | 0.5445 | -562.0 | -410.9 | |
| 0.00 | 2.67 | 0.00 | 1.64 | 20.41 | 172.42 | -23.28 | 39.20 | 0.5884 | 74.0 | 184.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
