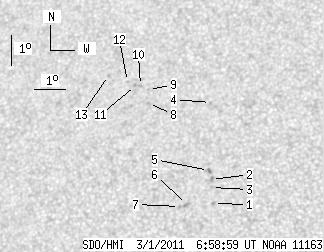

SDO HMI 2011-03-01 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.78 | 0.00 | 10.06 | 16.96 | 178.66 | -15.96 | 32.98 | 0.4846 | -18.6 | 154.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.77 | 15.17 | 179.98 | -14.64 | 32.91 | 0.4508 | 820.0 | 669.2 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 15.94 | 179.86 | -14.76 | 32.17 | 0.4619 | 918.0 | 725.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 15.68 | 179.88 | -14.74 | 32.45 | 0.4584 | 782.0 | 623.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 18.46 | 179.62 | -15.00 | 29.76 | 0.4966 | -764.0 | -633.8 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 16.24 | 179.74 | -14.88 | 32.03 | 0.4667 | 838.0 | 720.8 | |
| 0.00 | 2.50 | 0.00 | 1.39 | 15.16 | 179.12 | -15.50 | 34.42 | 0.4582 | 845.0 | 638.1 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 15.11 | 178.90 | -15.72 | 34.87 | 0.4594 | 675.0 | 487.4 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 18.50 | 177.59 | -17.02 | 32.92 | 0.5129 | -854.0 | -628.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 18.97 | 177.54 | -17.07 | 32.48 | 0.5191 | -701.0 | -652.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 19.11 | 177.26 | -17.35 | 32.75 | 0.5231 | -801.0 | -641.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 19.12 | 177.10 | -17.52 | 32.99 | 0.5245 | -681.0 | -580.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 19.26 | 176.82 | -17.80 | 33.24 | 0.5285 | -620.0 | -459.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 19.49 | 176.16 | -18.45 | 33.94 | 0.5366 | -699.0 | -556.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
