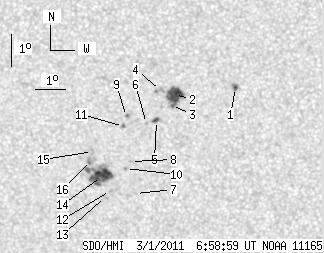

SDO HMI 2011-03-01 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.66 | 80.75 | 20.50 | 42.93 | -23.19 | 179.96 | -14.66 | 140.24 | 0.3646 | -161.4 | -341.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 06:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 3.19 | 0.85 | 1.66 | -21.59 | 183.54 | -11.07 | 144.50 | 0.3088 | 1033.4 | 904.1 | |
| 15.62 | 21.65 | 8.19 | 11.37 | -21.75 | 181.54 | -13.08 | 140.39 | 0.3311 | 1044.4 | 741.0 | |
| 0.43 | -2.00 | 0.23 | -2.00 | -22.09 | 181.41 | -13.21 | 140.81 | 0.3365 | 707.8 | 999999 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -21.62 | 181.09 | -13.52 | 139.20 | 0.3342 | 775.0 | 637.9 | |
| 2.33 | 2.93 | 1.23 | 1.55 | -22.53 | 180.87 | -13.75 | 140.62 | 0.3475 | 797.1 | 713.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -22.62 | 180.53 | -14.09 | 140.13 | 0.3520 | 570.0 | 399.1 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -24.77 | 179.92 | -14.70 | 142.96 | 0.3841 | -763.0 | -778.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -23.77 | 179.87 | -14.75 | 141.10 | 0.3726 | -820.0 | -629.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -22.38 | 179.89 | -14.73 | 138.47 | 0.3561 | -926.0 | -761.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -23.99 | 179.67 | -14.94 | 141.14 | 0.3771 | -906.0 | -751.5 | |
| 0.35 | 1.98 | 0.18 | 1.05 | -22.69 | 179.76 | -14.86 | 138.83 | 0.3610 | -913.2 | -722.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -24.65 | 179.08 | -15.53 | 141.30 | 0.3909 | -750.0 | -614.2 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -24.83 | 178.89 | -15.72 | 141.29 | 0.3950 | -626.0 | -544.9 | |
| 18.29 | 33.04 | 9.82 | 17.74 | -24.21 | 178.84 | -15.78 | 140.09 | 0.3882 | -1042.9 | -741.9 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -23.42 | 178.63 | -15.98 | 138.29 | 0.3814 | -826.0 | -762.1 | |
| 0.00 | 5.00 | 0.00 | 2.68 | -23.70 | 178.56 | -16.05 | 138.70 | 0.3853 | -939.0 | -858.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
