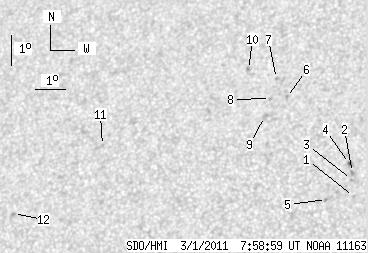

SDO HMI 2011-03-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 18.37 | 0.91 | 10.46 | 17.07 | 177.32 | -16.75 | 33.91 | 0.4939 | 127.3 | 19.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.76 | 15.18 | 179.97 | -14.10 | 31.91 | 0.4465 | 801.0 | 668.5 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 15.96 | 179.88 | -14.18 | 31.14 | 0.4575 | 866.0 | 759.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 15.73 | 179.87 | -14.20 | 31.44 | 0.4546 | 862.0 | 701.6 | |
| 1.64 | 2.50 | 0.91 | 1.40 | 16.25 | 179.77 | -14.30 | 31.01 | 0.4623 | 776.5 | 531.1 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 15.12 | 179.12 | -14.95 | 33.53 | 0.4528 | 783.0 | 642.4 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 18.49 | 177.54 | -16.53 | 32.18 | 0.5087 | -835.0 | -649.4 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 19.13 | 177.14 | -16.92 | 32.09 | 0.5199 | -673.0 | -577.6 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 18.48 | 177.02 | -17.05 | 33.00 | 0.5128 | -763.0 | -591.5 | |
| 0.00 | 2.76 | 0.00 | 1.58 | 17.89 | 176.88 | -17.19 | 33.87 | 0.5067 | -849.0 | -600.3 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 19.47 | 176.18 | -17.89 | 33.15 | 0.5317 | -706.0 | -512.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 17.18 | 171.59 | -22.48 | 42.12 | 0.5468 | 556.0 | 351.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 15.13 | 168.84 | -25.23 | 48.13 | 0.5547 | 767.0 | 670.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
