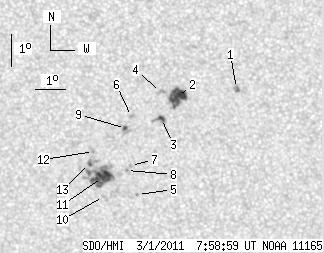

SDO HMI 2011-03-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.79 | 94.13 | 20.01 | 49.96 | -23.18 | 179.92 | -14.14 | 141.19 | 0.3593 | -160.6 | -271.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.11 | 0.00 | 1.61 | -21.57 | 183.52 | -10.55 | 145.73 | 0.3036 | 1120.0 | 937.9 | |
| 16.05 | 21.83 | 8.40 | 11.43 | -21.77 | 181.58 | -12.49 | 141.67 | 0.3252 | 1039.0 | 735.6 | |
| 2.24 | 6.04 | 1.18 | 3.18 | -22.43 | 180.99 | -13.07 | 141.76 | 0.3393 | 954.6 | 577.1 | |
| 0.00 | 3.88 | 0.00 | 2.04 | -21.63 | 181.04 | -13.03 | 140.23 | 0.3292 | 716.0 | 542.0 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.75 | 179.95 | -14.12 | 143.98 | 0.3784 | -805.0 | -703.2 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -22.34 | 180.01 | -14.06 | 139.64 | 0.3484 | -872.0 | -691.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -23.85 | 179.82 | -14.25 | 142.15 | 0.3686 | -957.0 | -798.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -24.00 | 179.66 | -14.40 | 142.14 | 0.3719 | -966.0 | -824.8 | |
| 1.38 | 5.52 | 0.73 | 2.92 | -22.70 | 179.77 | -14.29 | 139.91 | 0.3552 | -787.9 | -283.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.78 | 178.79 | -15.27 | 141.97 | 0.3899 | -716.0 | -447.2 | |
| 16.39 | 40.98 | 8.78 | 21.96 | -24.19 | 178.83 | -15.23 | 141.00 | 0.3825 | -1073.1 | -699.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -23.38 | 178.63 | -15.44 | 139.14 | 0.3751 | -1001.0 | -782.2 | |
| 1.73 | 5.69 | 0.92 | 3.05 | -23.74 | 178.45 | -15.62 | 139.52 | 0.3812 | -949.2 | -756.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
