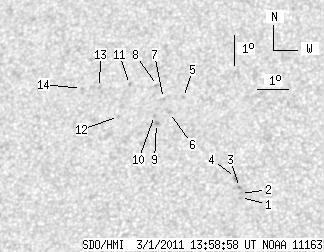

SDO HMI 2011-03-01 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.67 | 0.00 | 9.94 | 17.95 | 177.81 | -12.97 | 26.71 | 0.4748 | -299.1 | -186.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-03-01 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.61 | 15.67 | 180.03 | -10.75 | 24.92 | 0.4281 | 768.0 | 635.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 15.80 | 180.02 | -10.76 | 24.80 | 0.4300 | 738.0 | 639.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 15.99 | 179.98 | -10.80 | 24.69 | 0.4331 | 849.0 | 688.6 | |
| 0.00 | 3.02 | 0.00 | 1.66 | 16.32 | 179.83 | -10.95 | 24.65 | 0.4387 | 730.0 | 614.3 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 18.99 | 178.00 | -12.78 | 25.50 | 0.4879 | -698.0 | -534.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 18.51 | 177.59 | -13.19 | 26.68 | 0.4841 | -848.0 | -698.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 18.98 | 177.35 | -13.43 | 26.62 | 0.4920 | -753.0 | -623.0 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 19.42 | 177.12 | -13.66 | 26.60 | 0.4994 | -609.0 | -553.8 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 18.16 | 177.19 | -13.59 | 27.70 | 0.4821 | -883.0 | -697.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.42 | 177.11 | -13.67 | 27.58 | 0.4862 | -705.0 | -549.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.48 | 176.21 | -14.57 | 28.04 | 0.5066 | -619.0 | -478.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 18.43 | 175.95 | -14.83 | 29.54 | 0.4947 | -723.0 | -590.0 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 19.41 | 175.24 | -15.55 | 29.67 | 0.5128 | -747.0 | -581.7 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 19.40 | 174.65 | -16.13 | 30.60 | 0.5170 | -687.0 | -622.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
