SDO HMI 2011-03-01 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.78 | 1132.60 | 161.47 | 750.19 | 25.45 | 163.29 | -26.39 | 37.12 | 0.6651 | 110.3 | 92.0 | |
|
previous
or next observation for the same group /

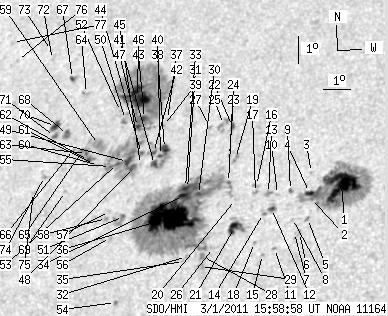

back to the solar disc SDO HMI 2011-03-01 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.78 | 188.39 | 31.79 | 117.80 | 24.72 | 169.11 | -20.57 | 31.46 | 0.6137 | -990.2 | -408.0 | |
| 0.26 | -1.00 | 0.16 | -1.00 | 24.28 | 168.14 | -21.54 | 33.06 | 0.6159 | 544.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 25.19 | 167.97 | -21.71 | 32.38 | 0.6273 | -492.0 | -404.9 | |
| 2.85 | -1.00 | 1.79 | -1.00 | 24.49 | 168.03 | -21.65 | 32.98 | 0.6191 | -516.6 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.50 | 23.58 | 168.12 | -21.56 | 33.76 | 0.6083 | -722.0 | -507.6 | |
| 0.00 | 2.33 | 0.00 | 1.44 | 23.11 | 167.92 | -21.76 | 34.47 | 0.6046 | -842.0 | -624.7 | |
| 0.00 | 0.34 | 0.00 | 0.21 | 23.12 | 167.75 | -21.93 | 34.67 | 0.6061 | -529.0 | -504.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 23.61 | 167.59 | -22.09 | 34.36 | 0.6127 | -479.0 | -312.7 | |
| 1.21 | 1.72 | 0.76 | 1.09 | 24.60 | 167.34 | -22.34 | 33.69 | 0.6254 | -467.9 | -431.7 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 24.48 | 166.90 | -22.78 | 34.31 | 0.6274 | -374.0 | -337.2 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 22.61 | 167.14 | -22.54 | 35.93 | 0.6053 | -548.0 | -489.9 | |
| 2.67 | 5.09 | 1.69 | 3.21 | 24.00 | 166.78 | -22.90 | 34.92 | 0.6232 | -686.1 | -245.9 | |
| 0.00 | 3.97 | 0.00 | 2.52 | 24.53 | 166.57 | -23.11 | 34.63 | 0.6305 | -223.0 | -228.5 | |
| 0.00 | 2.76 | 0.00 | 1.74 | 23.84 | 166.53 | -23.15 | 35.37 | 0.6235 | -398.0 | -156.0 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 22.42 | 166.75 | -22.93 | 36.58 | 0.6065 | -454.0 | -399.7 | |
| 0.00 | 2.59 | 0.00 | 1.66 | 24.84 | 166.08 | -23.59 | 34.88 | 0.6375 | -595.0 | -452.4 | |
| 0.00 | 2.50 | 0.00 | 1.60 | 24.59 | 166.10 | -23.58 | 35.11 | 0.6348 | -689.0 | -483.1 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 22.85 | 166.40 | -23.28 | 36.54 | 0.6140 | -661.0 | -429.0 | |
| 0.00 | 3.53 | 0.00 | 2.31 | 25.84 | 165.11 | -24.56 | 34.96 | 0.6553 | 624.0 | 566.7 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 24.39 | 165.42 | -24.25 | 36.06 | 0.6379 | 694.0 | 422.7 | |
| 9.92 | 15.09 | 6.29 | 9.57 | 23.41 | 165.58 | -24.09 | 36.88 | 0.6265 | 922.6 | 523.2 | |
| 2.50 | 3.02 | 1.66 | 2.01 | 27.00 | 164.74 | -24.94 | 34.26 | 0.6699 | 736.6 | 544.3 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 25.96 | 164.87 | -24.81 | 35.11 | 0.6583 | 546.0 | 482.8 | |
| 0.60 | 434.80 | 0.39 | 282.76 | 25.00 | 165.04 | -24.63 | 35.86 | 0.6472 | -641.9 | 409.7 | |
| 0.00 | 8.28 | 0.00 | 5.53 | 27.09 | 164.38 | -25.30 | 34.54 | 0.6734 | 492.0 | 452.4 | |
| 0.00 | 2.33 | 0.00 | 1.47 | 22.76 | 164.97 | -24.71 | 38.26 | 0.6249 | 235.0 | 215.2 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 27.01 | 163.92 | -25.76 | 35.08 | 0.6760 | 482.0 | 409.3 | |
| 0.00 | 3.53 | 0.00 | 2.24 | 22.47 | 164.63 | -25.05 | 38.94 | 0.6248 | 897.0 | 831.8 | |
| 0.00 | 4.05 | 0.00 | 2.56 | 22.13 | 164.63 | -25.05 | 39.31 | 0.6214 | 618.0 | 622.6 | |
| 2.16 | -24.00 | 1.40 | -24.00 | 24.64 | 164.04 | -25.64 | 37.30 | 0.6515 | 650.7 | 999999 | |
| 0.26 | -24.00 | 0.17 | -24.00 | 24.87 | 163.58 | -26.10 | 37.53 | 0.6575 | -146.0 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 22.50 | 164.05 | -25.62 | 39.53 | 0.6301 | 768.0 | 601.7 | |
| 2.07 | -24.00 | 1.36 | -24.00 | 24.91 | 163.50 | -26.18 | 37.57 | 0.6585 | 505.3 | 999999 | |
| 3.62 | -24.00 | 2.37 | -24.00 | 24.64 | 163.49 | -26.19 | 37.87 | 0.6558 | 698.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 22.34 | 163.98 | -25.70 | 39.79 | 0.6291 | 304.0 | 305.9 | |
| 84.41 | -24.00 | 54.96 | -24.00 | 23.89 | 163.19 | -26.49 | 38.95 | 0.6511 | 1144.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 27.40 | 162.21 | -27.47 | 36.40 | 0.6924 | -671.0 | -532.3 | |
| 5.52 | 24.14 | 3.72 | 16.23 | 26.36 | 162.37 | -27.30 | 37.26 | 0.6813 | 792.8 | 774.7 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 27.19 | 162.12 | -27.56 | 36.69 | 0.6911 | -640.0 | -559.7 | |
| 1.72 | -38.00 | 1.16 | -38.00 | 26.11 | 162.29 | -27.39 | 37.58 | 0.6796 | 888.0 | 999999 | |
| 2.93 | -38.00 | 1.97 | -38.00 | 25.81 | 162.14 | -27.54 | 38.04 | 0.6778 | 862.7 | 999999 | |
| 2.07 | 8.45 | 1.40 | 5.72 | 26.24 | 161.99 | -27.68 | 37.75 | 0.6831 | 730.1 | 530.4 | |
| 2.93 | 310.04 | 2.03 | 215.64 | 27.49 | 161.31 | -28.37 | 37.16 | 0.7000 | -763.7 | -86.4 | |
| 1.64 | -43.00 | 1.11 | -43.00 | 26.23 | 161.55 | -28.13 | 38.19 | 0.6865 | 658.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 25.84 | 161.61 | -28.07 | 38.52 | 0.6824 | 760.0 | 610.8 | |
| 33.28 | -43.00 | 23.37 | -43.00 | 28.32 | 160.80 | -28.87 | 36.84 | 0.7113 | -852.7 | 999999 | |
| 1.64 | -43.00 | 1.13 | -43.00 | 27.22 | 161.12 | -28.55 | 37.61 | 0.6989 | 329.9 | 999999 | |
| 3.45 | -43.00 | 2.33 | -43.00 | 25.75 | 161.37 | -28.31 | 38.84 | 0.6834 | 908.8 | 999999 | |
| 4.57 | -43.00 | 3.11 | -43.00 | 25.98 | 161.09 | -28.59 | 38.88 | 0.6878 | 669.9 | 999999 | |
| 0.00 | 4.74 | 0.00 | 3.30 | 27.51 | 160.58 | -29.10 | 37.83 | 0.7056 | -458.0 | -196.9 | |
| 0.43 | 10.26 | 0.29 | 6.80 | 24.04 | 161.43 | -28.25 | 40.56 | 0.6671 | 474.2 | 79.5 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 27.81 | 160.30 | -29.38 | 37.79 | 0.7105 | -711.0 | -578.6 | |
| 2.50 | -43.00 | 1.71 | -43.00 | 25.93 | 160.72 | -28.96 | 39.27 | 0.6903 | 395.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 21.08 | 161.80 | -27.88 | 43.46 | 0.6366 | 885.0 | 806.9 | |
| 1.29 | -43.00 | 0.88 | -43.00 | 25.84 | 160.48 | -29.20 | 39.58 | 0.6914 | 386.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 23.33 | 161.12 | -28.56 | 41.62 | 0.6633 | 653.0 | 481.3 | |
| 0.00 | 1.38 | 0.00 | 0.92 | 24.25 | 160.86 | -28.82 | 40.89 | 0.6738 | 608.0 | 460.9 | |
| 0.00 | 1.55 | 0.00 | 1.04 | 24.01 | 160.81 | -28.87 | 41.19 | 0.6721 | 690.0 | 611.1 | |
| 0.00 | 15.17 | 0.00 | 10.55 | 26.67 | 159.79 | -29.89 | 39.38 | 0.7042 | 166.0 | 59.3 | |
| 0.00 | 1.29 | 0.00 | 0.89 | 25.91 | 160.01 | -29.67 | 39.95 | 0.6958 | 241.0 | 320.6 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 25.96 | 159.84 | -29.84 | 40.06 | 0.6975 | 522.0 | 446.8 | |
| 1.47 | 12.50 | 1.01 | 8.69 | 26.12 | 159.57 | -30.11 | 40.14 | 0.7011 | 482.1 | -280.7 | |
| 0.69 | -62.00 | 0.48 | -62.00 | 26.37 | 159.41 | -30.26 | 40.02 | 0.7046 | -748.9 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.99 | 28.57 | 158.73 | -30.94 | 38.44 | 0.7288 | 672.0 | 460.2 | |
| 0.52 | -62.00 | 0.36 | -62.00 | 26.49 | 159.23 | -30.45 | 40.06 | 0.7071 | -585.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 26.55 | 158.86 | -30.82 | 40.33 | 0.7105 | -582.0 | -427.3 | |
| 1.98 | 2.93 | 1.45 | 2.15 | 29.17 | 157.97 | -31.70 | 38.50 | 0.7394 | -667.6 | -559.6 | |
| 4.74 | 5.86 | 3.37 | 4.16 | 27.12 | 158.45 | -31.22 | 40.11 | 0.7185 | -632.1 | -682.5 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 25.07 | 158.98 | -30.70 | 41.75 | 0.6968 | 630.0 | 518.1 | |
| 6.12 | 12.76 | 4.39 | 9.14 | 27.44 | 157.88 | -31.80 | 40.28 | 0.7257 | -584.8 | -470.1 | |
| 1.98 | -70.00 | 1.41 | -70.00 | 27.08 | 157.96 | -31.72 | 40.58 | 0.7221 | -693.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.97 | 29.95 | 156.89 | -32.79 | 38.65 | 0.7536 | -615.0 | -554.9 | |
| 0.00 | 1.38 | 0.00 | 1.04 | 30.30 | 156.71 | -32.97 | 38.46 | 0.7576 | -367.0 | -273.2 | |
| 0.00 | 1.98 | 0.00 | 1.39 | 25.66 | 158.00 | -31.68 | 41.99 | 0.7099 | 567.0 | 498.5 | |
| 0.00 | 1.98 | 0.00 | 1.38 | 25.12 | 157.74 | -31.94 | 42.78 | 0.7076 | 602.0 | 476.3 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 30.03 | 155.41 | -34.27 | 39.74 | 0.7648 | -618.0 | -549.8 | |
| 0.00 | 1.38 | 0.00 | 1.07 | 30.73 | 154.92 | -34.76 | 39.45 | 0.7736 | -598.0 | -531.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
